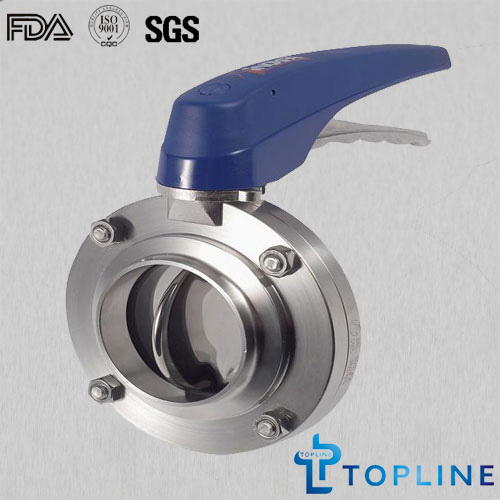

Sanitary Stainless Steel Butterfly Valve (with plastic Multi-position handle)

Sanitary Stainless Steel Butterfly Valve (with plastic Multi-position handle)
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

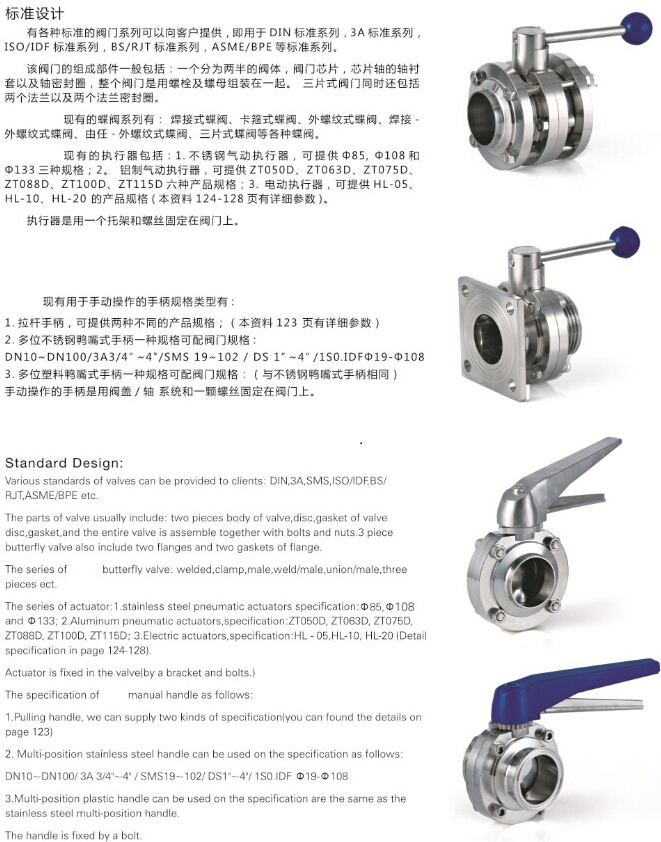

*Sanitary Butterfly Valve with plastic Multi-position handle
*Material: AISI304, AISI316L
*Standard: DIN/SMS/3A/ISO/IDF/RJT
*Size: DN10-DN200&1/2"-8"
*Three drive forms: Normally closed, normally opened and opened & closed by two air flues separately.
*Application: Used for the control of liquid flow in food, beer, beverage, pharmacy industries.
*Operating Principle: The butterfly valve can be operated automatically through an actuator or manually with a handle. The handle blocks the valve in the "open" or "closed" position, although there are also other models with intermediate positions. The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the disc.

For more detail information, pls don't hesitate to contact us. We can also produce according to your drawings and specifictions

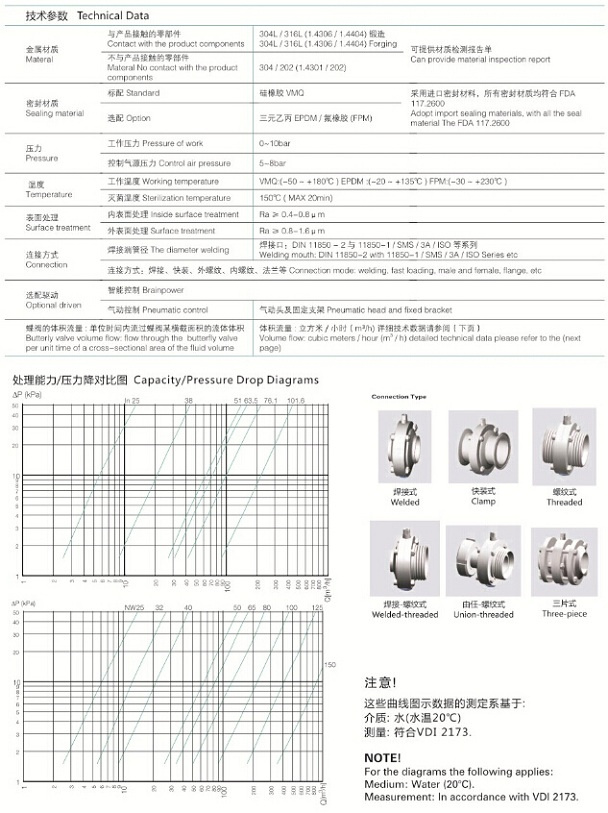

Connecting Endswelding
StandardDIN, SMS, 3A, ISO, IDF, RJT, BS
Available SizesDN10-DN150, 1/2"-8"
Metal MaterialParts in contact with fluid304, 316L (DIN 1.4301, 1.4304) Forging
Other parts304
Seal MaterialOptionsSilicone, EPDM, FPM, NBR
OperationManualPulling handle, Multiposition
Pneumatic NC, NO, A/A
Electric

PressureMax. working pressure10 bar
Air supply pressure5~8 bar
Surface FinishInternal  surfaceRa < 0.8 μm
External surfaceRa <1.6 μm
Prod Model: TPSBTFLV001-1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Dn10-Dn200&1/2"-8"
Connection Form: Welding
Structure: Centre Sealing
Material Of Seal Surface: Soft Sealed
Application: Food, Beer, Beverage, Pharmacy
Seal Form: Soft Sealed
Work Pressure: <10bar
Working Temperature: 120°c-180°c
Valve Body: CNC Forged
As a manufacturer, TopLine Company specialize in the supply of the following sanitary flow control components:

Stainless Steel Sanitary valves ( butterfly, check, ball, CPM, diaphragm, sampling, seat valves, ect)

Stainless Steel Sanitary fittings ( elbow, tee, clamp, pipe holder, ferrule, union, manway, cleaning ball, sight glass, filter, etc)

Stainless Steel Sanitary pump ( centrifugal, rotary lobe, CIP)

Stainless Steel Pipe Series( stainless steel Sanitary Welding pipe, Seamless pipe)

Topline services for food, beverage, dairy, chemical, bioth, pharmaceutical, etc...

We believes in "What we say, what we do", honesty is the only way leading to long term business relationship. We always trying our best for customers and put ourselves into customers' shoes. Making business with customers, making friends with them.

Topline has been in this business since 2009. The boss has worked for sanitary valve industry since 2000. After so many years, we are becoming more and more professional in this field. We know more about customers' requirement and offer best services.
