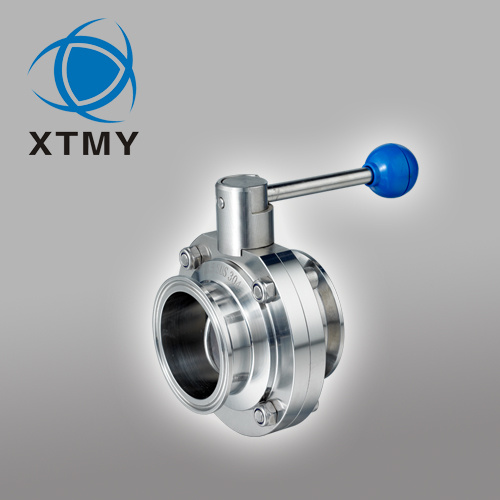

The series of this valve are sanitary pneumatic or manual butterfly valves,which are widly used in stainless steel pipeline system to control and regulate medium flow.
Connection mode: welded ,clamp ,thread and so on.
Action mode: Manual
Specification: 1"-4", DN25-DN100
Material quality: SUS304, SUS316L
Seal: EPDM, Silicone
Pressure: 0-10bar
Temperature: -10-+100deg.
Polishing: Mirror Polish(Ra0.5-0.8um), Semi-polished(Ra 1.6-3.2um)
Standard: ISO, DIN, 3A, SMS, IDF, AS, BS
Application: Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry
|
3A |
Size |
A |
B |
B2 |
KXK |
D |
D2 |
L |
T |
|
|
3/4" |
78.0 |
19.05 |
25.2 |
10X10 |
50.0 |
66.0 |
136.0 |
1.65 |
|
|
1" |
78.0 |
25.4 |
50.5 |
10X10 |
50.0 |
66.0 |
136.0 |
1.65 |
|
|
1 1/4" |
78.0 |
31.8 |
50.5 |
10X10 |
50.0 |
66.0 |
136.0 |
1.65 |
|
|
1 1/2" |
86.0 |
38.1 |
50.5 |
10X10 |
50.0 |
70.0 |
136.0 |
1.65 |
|
|
2" |
100.0 |
50.8 |
64.0 |
10X10 |
52.0 |
76.0 |
136.0 |
1.65 |
|
|
2 1/2" |
115.0 |
63.5 |
77.5 |
10X10 |
56.0 |
80.0 |
136.0 |
1.65 |
|
|
3" |
128.0 |
76.2 |
91.0 |
10X10 |
58.0 |
84.0 |
163.0 |
1.65 |
|
|
4" |
154.0 |
101.6 |
119.0 |
10X10 |
64.0 |
104.0 |
163.0 |
2.1 |
|
|
5" |
186.0 |
127.0 |
145.0 |
14X14 |
70.0 |
113.0 |
185.0 |
2.1 |
|
|
6" |
225.0 |
152.4 |
166.8 |
14X14 |
80.0 |
123.0 |
185.0 |
2.8 |
