Operating principles
The aseptic sampling valve is designed for sterilization before and after each sampling.
Open: Sampling-The manual valve is opened by rotating the handle(adjustable valve) or by activating the lever(on/off valve).
The stem and the membrane are then retracted, allowing liquid to pass.
Closed: Sterilizing-The built-in spring closes the valve and keeps the channel open between the hoses though reverse process
In order to sterilize. If using by steam, a small pressure relief valve(optional ) on the outlet is recommended.
Standard Design: The aseptic sampling valve consists of three parts, a valve body, a handle and a membrane. The rubber membrane is placed on the stem of the valve and works as a stretchable plug.
Connection: Thread, Welding, Pipe tank welding, Clamp.
Handle: (1)Turning handle (2)removable key.
Application: The aseptic sampling valve is applied to beer, milk, beverage, fruit juice, pharmacy industries tec.
Material
Valve body: AISI 316L
Handle: AISI 304
Membrane: MVQ/EPDM
Temperature
Max. Temperature: 130º C
Dry steam: (2bar)130º C
Recommendation: The Seals should be replaced after 200 times sterilization.
Technical specification
Max. Working pressure: 600kpa(6bar)

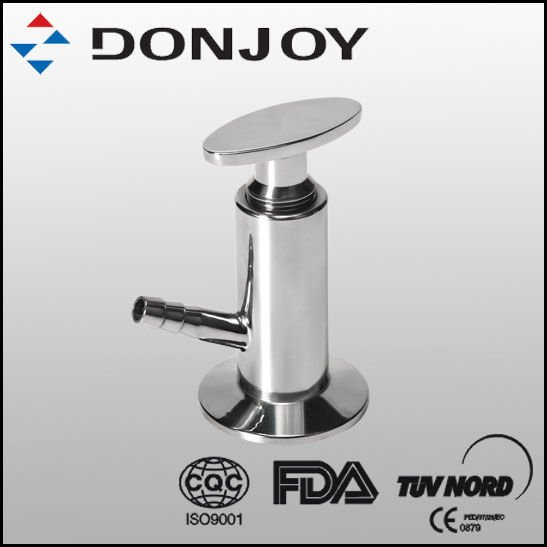

Product Name: |
Clamp sanitary Sampling Valve |
Valve Body Material: |
SS304 or SS316L |
Seal Material: |
PTFE |
Max. Working Pressure: |
10Bar |
Max. Working Temperature: |
120 degree C |
Availably size: |
1/4" - 1" |
Availably connection: |
Thread,Weld,Clamp |
Availably standard: |
3A |
Operated: |
Manual |
Certificate: |
FDA |
Donjoy built up in 1993, with registered capital RMB 55, 08 millions. We focus on developing high quality PID process controller, the valve positioner, the flow controller, the valve control unit, high purity process control valve, intelligent self-control valve, high pure pump, Cleaning technology, piping and pressure vessel safety technology, high pure tubing fitting and pipeline accessories. Donjoy's products and technoligy are widely used in biopharmaceutical, food, drink, wine and other industrial fields. Donjoy's innovation solutions meets growing demand in the industry of biopharmaceutical, food and beverage from the whold wold, special the emerging market.
Raw material, processing technology, welding technology, surface treatment from Donjoy have achieved advanced levels of domestic and foreign marekt. Donjoy producing according to ASME BPE, EHEDG, FDA and 3A standard, get certificate of PED-97/23/EC and MD-06/42/EC issued by TUV, 3A issued by 3A organization, TS licence and ISO9001: 2008.
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
Donjoy has been committed to major technological advances, is your trusted business partners!
Technological innovation, rapid development of the market and customer needs are the greatest challenges facing us today.
Faced with these challenges we are confident, because of highly professional products and technological innovation, we will meet the growing demard of market and customer with our better and better products.
