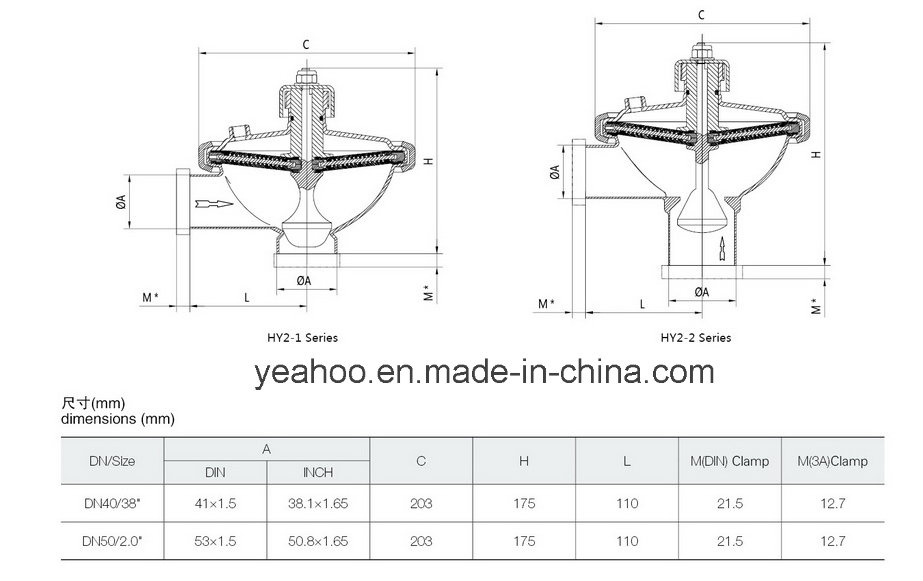

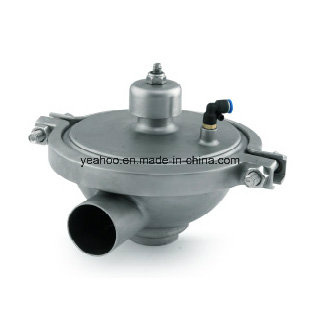

ApplicationsHY2 valve is sanitary constant pressure valve, which used in stainless steel pipeline system.
HY2-1 (constant-pressure modulating inlet) maintain a constant pressure in the process line at the inlet side of the valve. typical applications of HY2-1 are after separators, heat exchangers and as overflow valves.
HY2-2(constant pressure modulating outlet) maintains a constant pressure in the process line at the outlet side of the valve. typical applications of hy2-2 are before filling/bottling machines etc.

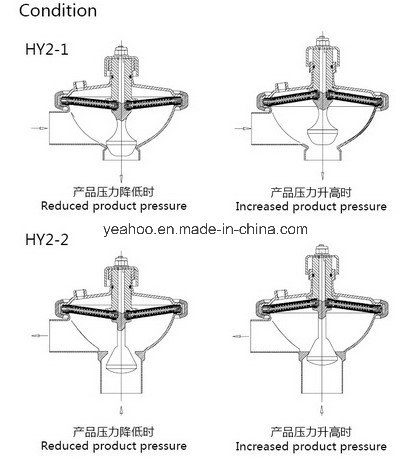

Operating PrincipleHY2-2 are remote-controlled by means of compressed air. the valves operate without a transmitter in the product line and require only a pressure regulating valve for the compressed air and a pressure gauge in the product line.
HY2-1 open at increasing product pressure and vice versa.
HY2-2 closes at increasing product pressure and vice versa.
Technical Data
Metal material | Product wetted |
316L(1.4307/1.4404)
|
Non-product wetted | 304(1.4301) |
We can provide EN 10204 3.1B certificate. |
Seal material | Standard | PTFE covered EPDM rubber |
|
|
All seal materials comply with FDA 177.2600. |
Temperature | Continuous working temperature | -20~+135ºC(EPDM) |
Sterilization temperature | 150ºC(max 20min) |
Pressure | |
|
| 10bar |
Surface treatment | Internal surface | Ra≤0.8μm |
External surface | grit blasting |
Connection | Connection standards | Welding end: DIN 11850 series 2 |
Welding end: Inch pipe diameter standard |
Connection methods: welding, thread, clamp, flange |
