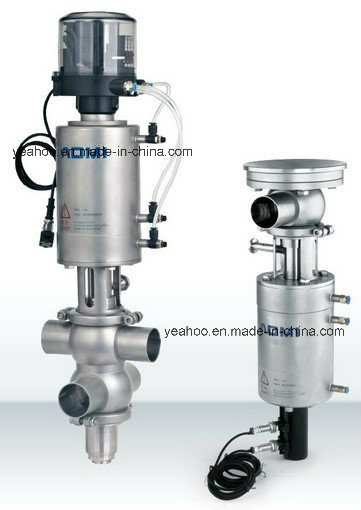

Sanitary Stainless Steel Double Seat Mix-Proof Valve
| Price: |
US $ 1-50/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |

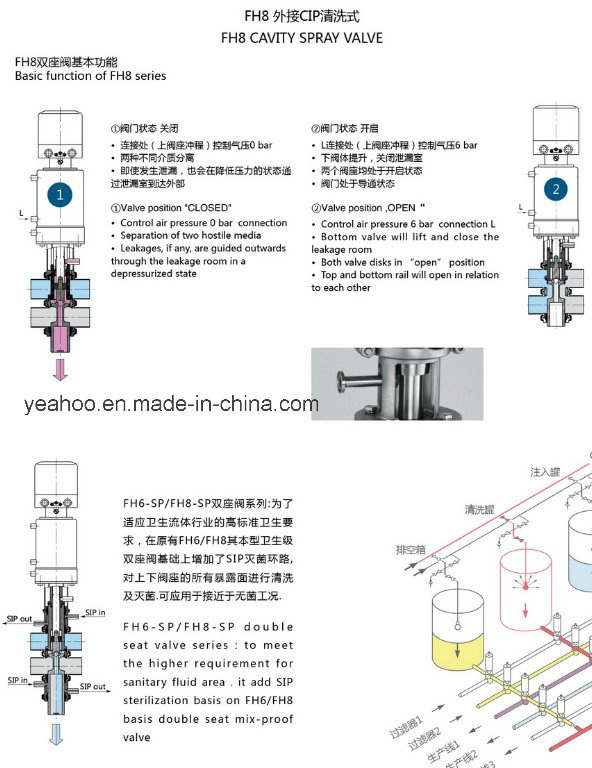

ApplicationsSanitary double-seat mix-proof valves are used for separating dissimilar products within the same valve body and preventing product contamination from other non-sanitary fluids. They are widely used in various food industries such as wine, dairy and beverage.Operating PrincipleFH6 and FH8 basic sanitary double-seat mix-proof valves are controlled by means of compressed air. The valve is a normally closed (NC) valve.The sanitary double-seat mix-proof valve has two independent plug seals, forming a leakage chamber between them under atmospheric pressure during ordinary working condition. In case of accident or leakage, the product will flow into the leakage chamber and be discharged through the leakage outlet. This will not cause contamination or mixing. When the valve is open, the leakage chamber is closed. The product can then flow from one pipe to another. The valve can be cleaned by CIP system.Double-seat valve can be equipped with ZK3 smart controller, which can carry out remote control and real-time monitoring. It can also be equipped with position sensor.Double-seat valve can be equipped with 1066 controller by installing an adapter plate.
Technical Data Metal material | Product wetted | 316L(1.4404) |
Non-product wetted | 304(1.4301) |
We can provide EN 10204 3.1B certificate. |
Seal material | Standard | EPDM |
Options | NBR\FPM\Silicone |
All seal materials comply with FDA 177.2600. |
Temperature | Continuous working temperature | -20~+135ºC(EPDM) |
Sterilization temperature | 150ºC(Max 20min) |
Pressure | Working pressure | 0~5bar |
Meeting high pressure requirement |
Control air pressure | 6~8bar |
Surface treatment | Internal surface | Ra≤0.8μm |
External surface | Shot blasting |
Connection | Connection standards | Welding end: DIN 11850 series 2 |
Welding end: Inch pipe diameter standard |
Connection methods: welding, thread, clamp, flange |
Options | Smart controller | 24V DC |
Solenoid valve (1 or 3) |
Position sensor | 24V DC |
NPN/PNP position sensor (2 , 3 or 4) |
Any question, be free to contact us, we are professional manufacturer for this field for more than 10 years. We will reply you within 24 hours. We are here waiting for your Sincere cooperation.
We have been a professional manufacturer and sales for high precision sanitary valves, pipe fittings, pipe connecting fittings, precise forging, forged valve and OEM forging parts ect. Which use for food, beverage, pharmacy, biology engineering, water treatment cosmetic, petroleum and chemical industry area, etc. Its advantages are with forging, heat treatment and machining.
We have many many testing equipemnts and instruments. Which are dimensional measuring machine, spectroscopic analysis equipment, hardness equipment, optical instrument etc.
We have the best team of experts in the management and technology. We design and produce our products as BPE, DIN, SMS, 3A, IDF, RJT, ISO and BS etc stanrard strictly. We test each step from raw-material to finished products. They avouch us to control the material quality, and finished products quality.
So far quality controls systems ISO9001 and Safety "CE" certification, and SGS had gotten through.
| Prod Model: |
YH-FHF002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ss Material: |
Forged Stainless Steel 304, 304L, 316, 316L |
