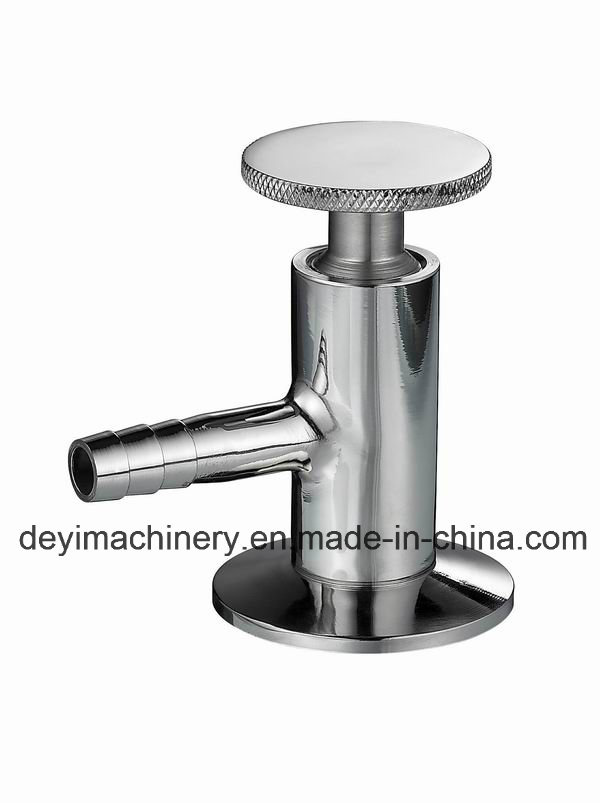

Sanitary Stainless Steel Ss304 Triclamp Sample Valve (DY-V016)
Price: |
US $ 4-5/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T |
Product Description
Sanitary stainless steel ss304 triclamp sample valve
Applicationits mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment.Sanitary sampling valve has two configurations.- Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective and easy to operate.
- Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated by plastic hand wheel, and both angle and straight type structures are available.
Feature
- 304 stainless steel
- Silicone O-ring plus plunger to assure a leak proof connection
- Surface finish polish to sanitary standards
- Recommended usage in wineries
- End connections available: clamp and NPT
- Sizes available: 1" clamp and 3/8" NPT
Technical specificationMaterial of Product Wetted | 316L (DIN-1.4404) |
Material of Non-product Wetted | 304 (DIN-1.4301) |
Seal material | PTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2) |
All seal materials comply with FDA 177.2600. |
Continuous working temperature | -20oC +135oC (EPDM) |
Sterilization temperature | 150oC (Max 20min) |
Working pressure | 0~10bar |
Internal surface | Ra0.8μm |
External surface | Shot blasting |
Size | 1/2" 3/4" |
Prod Model: |
DY-V016 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1/4"-2" |
Material: |
Ss304 or Ss316L |
Gasket: |
EPDM, Silicone, Viton, PTFE in Accordance with FDA |
Temperature Range: |
-20degree Celsius~135degree Celsius |
Max Pressure: |
10bar 145psi |
Export Market: |
Global |
Connection Ends: |
Threaded Triclamp, Welded |
Clamped Size: |
50.5mm, 34mm |
Internal Surface: |
Ra0.8um |
Thread&Welded Size: |
25.4mm |
Wenzhou DeYi Machinery is a high-tech science and technology enterprise which integrates design, development, manufacture, installation and provides complete turnkey project. Specializing in the manufacture and sale of bio-pharmaceutical, food, dairy, beer and beverage engineering equipments and various sorts of pressure vessels and non-standard equipment to meet the needs of users, such as stainless steel tanks, Chinese medicine extractors, concentration and evaporation equipment, alcohol recovery equipment, online CIP cleaning equipment, stainless steel pipe, sheet, valves fitting and so on. We always pursue the goal of "excellence and innovation". We research and develop new processes and designs so as to comply with cGMP and FDA requirements.
"Quality first and customer first" is our tenet. Our goal is simply to furnish high quality products at competitive prices in the global market and delivering to meet the challenges required in the today's business environment. We sincerely welcome friends from around the world to cooperate with us to have a brilliant future.
Choose DeYi, will get better price, good service and profit!
