Sanitary Stainless Steel Tank Bottom Valve T and F Type
Price: |
US $ 1-50/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
ApplicationsGD3 tank bottom valve is a pneumatic seat valve with sanitary and flexible design. Based on the mature single seat valve design platform, few and simple moving components make the valve reliable, and reduce the maintenance cost. GD3 tank bottom valve is used to close or open the pipe leading to the tank. It is widely used in brewing, dairy, beverage, and pharmaceutical industries.
Operating PrincipleGD3 tank bottom valve is remote controlled by compressed air, which consists of one valve and one tank bottom flange. In order to reduce the abrasion of seal components, the compression to seal components is performed through touching between metals.
GD3 tank bottom valve has two configurations.

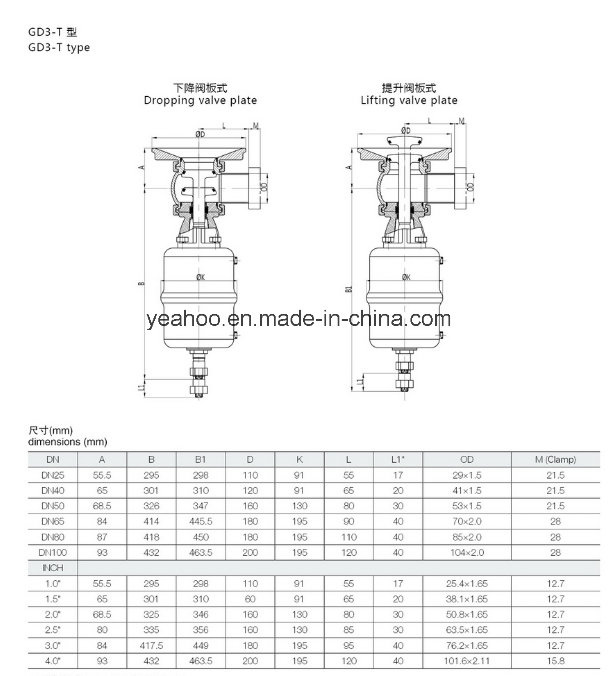

GD3-T tank bottom valve and flange are connected by clamp ends. Loosen the clamp a little, the valve can turn to any position, ensuring high flexibility. Tank bottom flange is welded on the tank.
GD3-F tank bottom valve and flange are connected by bolts. The valve can rotate through 360°. Tank bottom flange is welded on the tank.
Technical Data
Metal material | Product wetted | 316L(1.4404) |
Non-product wetted | 304(1.4301) |
We can provide EN 10204 3.1B certificate. |
Seal material | Standard | EPDM All seal materials comply with FDA 177.2600. |
Options | NBR,FPM,Silicone All seal materials comply with FDA 177.2600. |
Temperature | Continuous working temperature | -20~+135ºC(EPDM) |
Sterilization temperature | 150ºC(max 20min) |
Pressure | Working pressure | 0~5bar(standard) |
Accepting high pressure requirement |
Control air pressure | 5~8bar |
Surface treatment | Internal surface | Ra≤0.8μm |
External surface | Grit blasting |
Connection | Connection standards | Welding end: DIN 11850 series 2 |
Welding end: Inch pipe diameter standard |
Connection methods: welding, thread, clamp, flange |
Options | Smart controller | 24V DC |
Solenoid valve (1 or 2) |
Position sensor | 24V DC |
NPN/PNP position sensor (2) |
Any question, be free to contact us, we are professional manufacturer for this field for more than 10 years. We will reply you within 24 hours. We are here waiting for your
Sincere cooperation.We have been a professional manufacturer and sales for high precision sanitary valves, pipe fittings, pipe connecting fittings, precise forging, forged valve and OEM forging parts ect. Which use for food, beverage, pharmacy, biology engineering, water treatment cosmetic, petroleum and chemical industry area, etc. Its advantages are with forging, heat treatment and machining.We have many many testing equipemnts and instruments. Which are dimensional measuring machine, spectroscopic analysis equipment, hardness equipment, optical instrument etc.We have the best team of experts in the management and technology. We design and produce our products as BPE, DIN, SMS, 3A, IDF, RJT, ISO and BS etc stanrard strictly. We test each step from raw-material to finished products. They avouch us to control the material quality, and finished products quality.So far quality controls systems ISO9001 and Safety "CE" certification, and SGS had gotten through.
Prod Model: |
YH-GD3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Stand: |
DIN, SMS, 3A, ISO |
Size: |
Dn25-Dn100 1"-4" |
We have been a professional manufacturer and sales for high precision sanitary valves, pipe fittings, pipe connecting fittings, precise forging, forged valve and OEM forging parts ect. Which use for food, beverage, pharmacy, biology engineering, water treatment cosmetic, petroleum and chemical industry area, etc. Its advantages are with forging, heat treatment and machining.
We have many many testing equipemnts and instruments. Which are dimensional measuring machine, spectroscopic analysis equipment, hardness equipment, optical instrument etc.
We have the best team of experts in the management and technology. We design and produce our products as BPE, DIN, SMS, 3A, IDF, RJT, ISO and BS etc stanrard strictly. We test each step from raw-material to finished products. They avouch us to control the material quality, and finished products quality.
So far quality controls systems ISO9001 and Safety "CE" certification, and SGS had gotten through.
