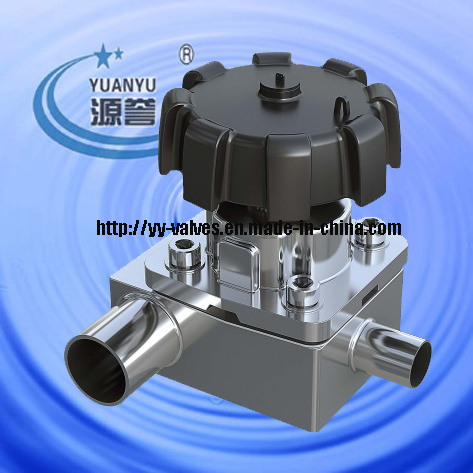

Sanitary T Type Reducing Diaphragm Valve (integrated type)

Sanitary T Type Reducing Diaphragm Valve (integrated type)
Price: US $ 55/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
sanitary T type reducing diaphragm valve(integrated type)

1)Body material: Stainless steel 316L   (forging)
2)Max pressure: 10bar (diaphragm is EPDM or FPM),6bar (diaphragm is PTFE, one side shall be used))
3)Working temperature:EPDM(-40 ~+130 degree),  EPDM+PTFE(-5~+160degree)
4)Standard: DIN, 3A, SMS, ISO/IDF, BS/RJT, ASME/BPE etc
5)Connection: Clamped, welded ,flanged, weld socket,Screw (NPT,BSP)can be chosen.
6)Material of seal: EPDM+PTFE FDA: 177.26600/
7)Size: DN8-DN100
8)Power: Pneumatic actuator(plastic/stainless steel actuator)/Handle
9)Driving way: Pneumatic, normally closed(1),normally open(2),and double direction(3)
10)Control pressure: 4-6 bar(control way 1), 3-4 bar(control way 2 and 3)

As a manufacturer, we can produce according to customer's requirement.
Please feel free to contact us if you want e-catalogue and drawing.
We are at your service any time.

Body of T type diahragm valve
CE Certificate can be provided.




Small size T type diaphragm valve


Another type of T type diaphragm valve
 Technical Data
 Material Contact with the product components316L forging(1.4409) Can provide material inspection report
 Materal no contact with the product components 304(1.4301)
 Sealing material StandardEPDM+PTFE Adopt sealing material with all the seal material the FDA 117.2600
 OptionEPDM
 Pressure Pressure of work16 bar
 Control air pressure5-8 bar
 Temperature Working temperatureEPDM(-40 ~+130 degree), EPDM+PTFE(-5~+160degree)
 Surface treatment Inside surface treatmentRa≥0.4-0.8μm
 Surface treatmentSand blasket
 Connection The diameter weldingDIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS,BPE....
 Connection mode:weld, triclamp,flange,wled socket,screw etc
 Body modeStraight ,T type, U type, L type,Multi type can be chosen
 Optional driven Brainpower
 Pneumatic controlPleastic actuator and stainless steel actuator
 Manual handle modeABS or stainless steel handle

Prod Model: YYDM3W-002
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dn25,Dn40,Dn50,Dn65: 1-2.5"
Actuator: Manual
Connection: Welded Diaphragm Valve
Material: Stainless Steel
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.

The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.

All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.

Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.

We have exported our products in the international market for 8 years.

In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
