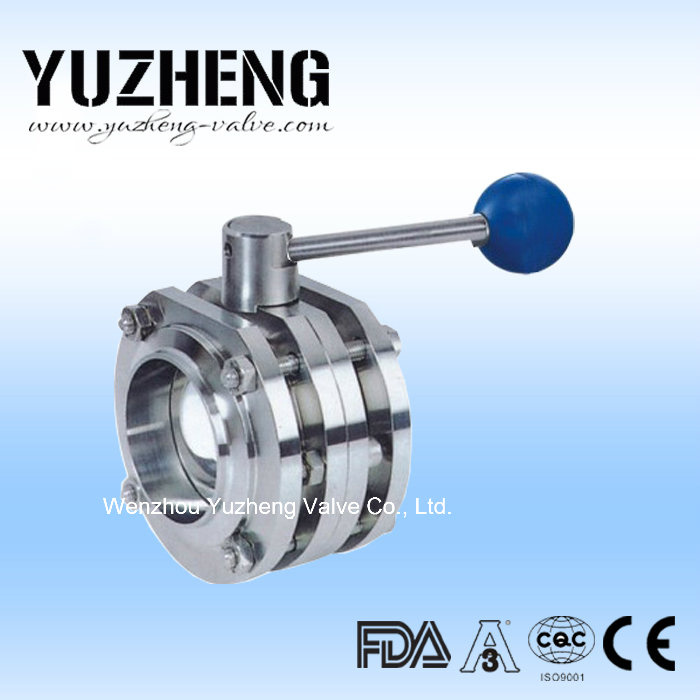

Sanitary three piece welded butterfly valve
Features and description:
Material of valve: SS304, SS316, SS316L
Material of seal: VMQ/EPDM/FPM FDA
Body: Full forged
Gasket: EPDM, silicone, telfon
Size: DN12-DN150/ 1/2"-6"
Connection Ends: Flange/Thread/Clamp/Weld/Union etc.
Standard: DIN, SMS, ISO, 3A
Handle: Manual/Pulling Handle/Multi-position Plastic handle/Multi-position Stainless steel Handle/Electric Actuator/Pneumatic Head
Type of Actuator: Normally open(NO), Normally closed(NC), Air/Air(A/A)
Our stainless steel butterfly valve with polished are widely used for food, beverage, dairy, biotech and pharmacy etc industries. We can supply manually butterfly valve, pneumatic butterfly valve and electric butterfly valve.
For manual type, we have pull handle, gripper handle, steel trigger handle, 4 position and adjusting type are available.
For pneumatic butterfly valve, we have single action type(air/spring) and also double action type(air/air). And we can also equipped with control box.
The butterfly valve body and disk are full CNC machined, sanitary polished to meet food industry.
Requiring more detail information and catalog please don't hesitate to contract us. We can also produce according to your drawing If your specification is out of our standard.
