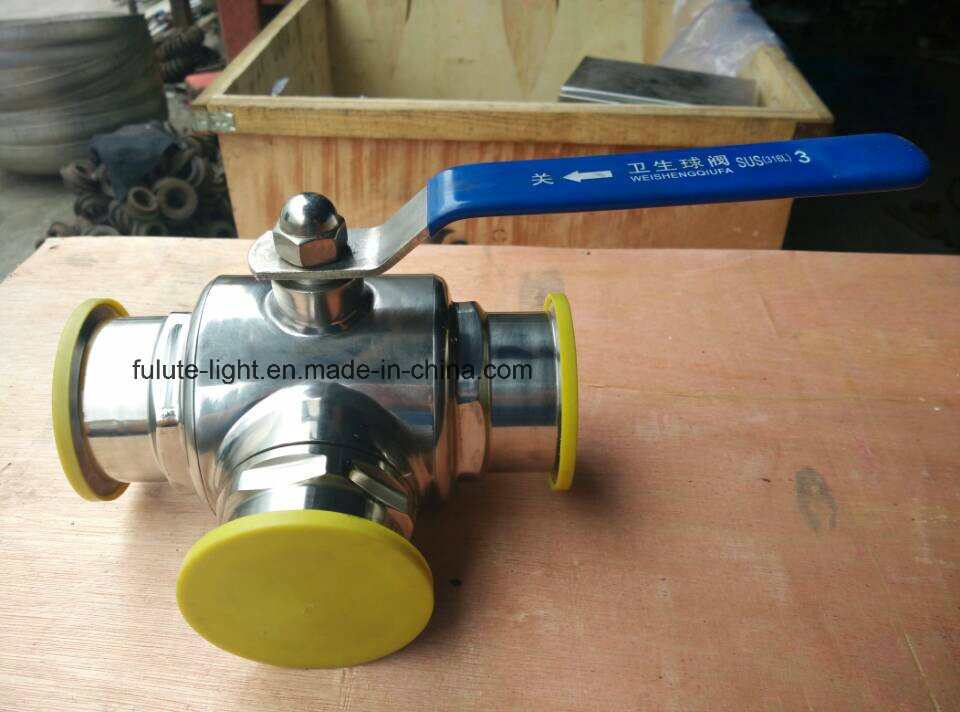

We are specialized in producing all kinds of sanitary valves and pipe fittings.
Our products if according to DIN SMS 3A ISO IDF Standard, and could also produce non-standard products according to samples or drawings.
Size: DN15-DN200 1/2"-8"
Material: AISI304(L) AISI316(L)
Connection Type: Weld, Clamp, Thread
Polish: Mirror Polish Ra<0.4um
Max. Working pressure: 1.0 MP(10bar)
Min. Working pressure: Vacuum
Working Temperature: -5° To 95°
Other Parts: Adopt AISI 304 316L
Sealing Material: Silicon, EPDM, PTFE
Application: Dairy, beer, food, beverage, pharmacy, biotechnology, etc.
Connection standard | DIN, 3A , SMS, IS0 |
| Way of connection | welding, threaded, clamp |
| Size | DN20-DN100, 1" -4" , 17.2-114.3 |
| Working pressure | 0-1.6MPa |
| Working temperature | -20 - +200 oC |
| Flow medium parts | 304, 304L , 316L |
| Without flow medium parts | 304 |
| Seal material | PTFE, EPDM |
| Operating mode | manual, pneumatic |
Wenzhou Flowtam Light Industry Machinery Co., Ltd. Established in 1995, Located in BinHai Industrial Zone. With 17 year manufacturing experience. We have a product range incluing Stainless steel tank, Stainless steel pumps, Stainless steel valves and pipe fitting.
Our products are mainly applied in the fields like dairy, food, beer, medicine, biology, chemical, beverage, food and cosmetics industries etc.
In 2012, Our mixing pump have been approved by CE certificate. Form our frist export transaction in 2006, We have sold our products in many foreign countries, such as USA, Newzealand, Australia, Indonesia etc.
