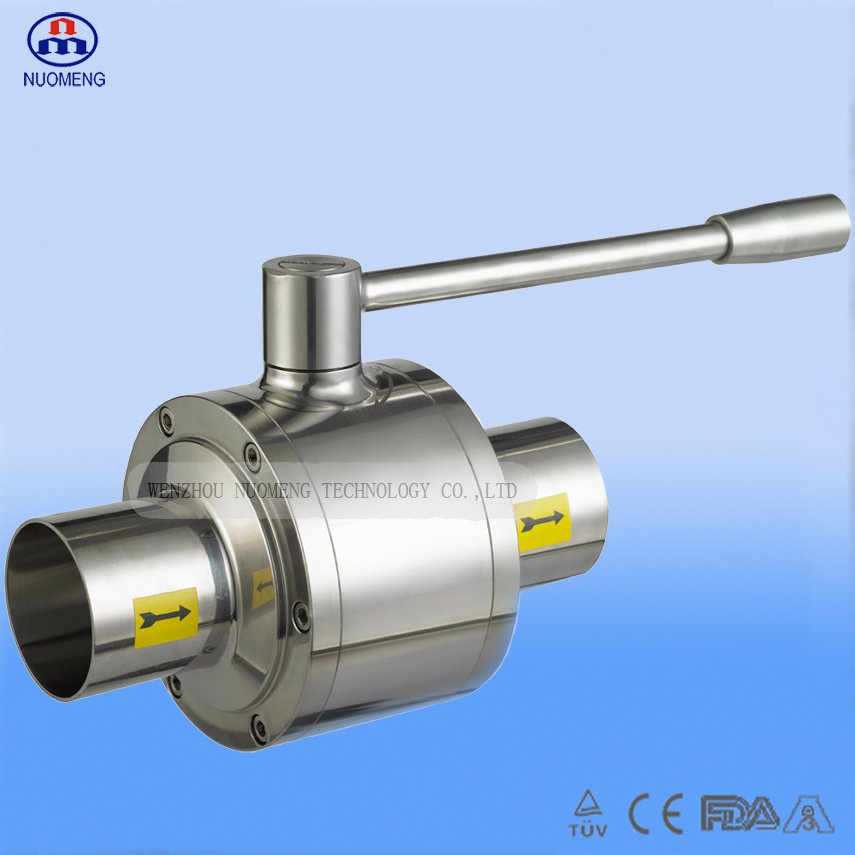

Sanitary Stainless Steel Manual Weld Three-Pieces Ball Valve
Application:
This type of ball valve series is a kind of sanitary valve which used to control the material transfer. It is widely used in food, beverage processing, pharmaceutical and chemical industry area.
Production feature:
1. Valve stem anti-flying design
2. The connection between valve body and bonnet with position stage design
3. Circulation
4. No retention design
Design standard: ISO5211, ISO 2037-92
Test and inspection standards: GB/T 13927-2008
Working principle: With the 90º Rotary handle, drive the preclse manufacturing ball body which with through cavity, turn on or off, so that can control the medium flow.
Material: Steel part: 304(1.4301)/316L(1.4404)
Gasket: PTFE
3A-NO.RQ2123 | Size | A | B | C | T | L |
1" | 88 | 25.4 | 22.1 | 1.65 | 122 |
1 1/4" | 88 | 31.8 | 28.5 | 1.65 | 122 |
1 1/2" | 102 | 38.1 | 34.8 | 1.65 | 180 |
2" | 102 | 50.8 | 47.5 | 1.65 | 180 |
2 1/2" | 114 | 63.5 | 60.2 | 1.65 | 180 |
3" | 124 | 76.2 | 72.9 | 1.65 | 266 |
3 1/2" | 152 | 88.9 | 84.9 | 2.0 | 266 |
4" | 154 | 101.6 | 97.4 | 2.1 | 266 |
