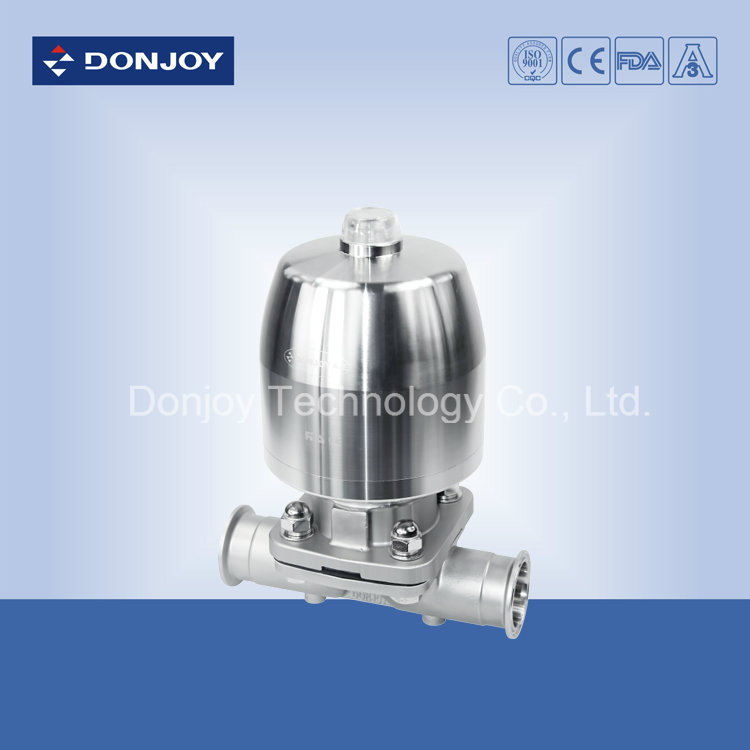

Product name: Sanitray Multiport Diaphragm Valve
Material quality: AISI316L
Standard: 3A/DIN/SMS/ISO/IDF
Size: 1/2"-2"
Type53) multiport diaphragm valve
Three control valve, 5 port
A water point seat
Two integrated closed-loop sampling valve seat
Suggest S1 up installation. Applications
Diaphragm valves, manually or pneumatically operated, ard specifically designed for use on hygienic and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as for open/ close duties.
The diaphragm valves are better in feature of flow in comparison with other valves. It is easier to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.
Operating principles
The diaphragm provides the body seal as well as the seat seal. There are no paths to the outside environment so it suitable for aseptic processes.
When the valve is closed a pressure pad which supports the diaphragm moves towards the sealing face on the body. When the pressure plate moves the diaphragm flexes and is forced down onto the seat area in the centre of the body thus closing
Off the flow path through the body.
The inter relationship of body to the pressure plate prevents over compression of the diaphragm.
The valve can be manual operation and pneumatic operation control tops of solenoid valves.
Certificates
All synthetic resin and additive are comply with FDA certification
Material chemical composition, physical properties and manufacturing process are documented
All diaphragm seal consistency with FDA certificate
Domestic hygiene license
CE-PED/97/23/EC
RELATIONS BETWEEN FLOW RATE AND O. D
KV is a data of the flow rate. The data describes valve flux when the water of 5 to 30in the pressure difference for 1bar
KV data is the valve flow open.
