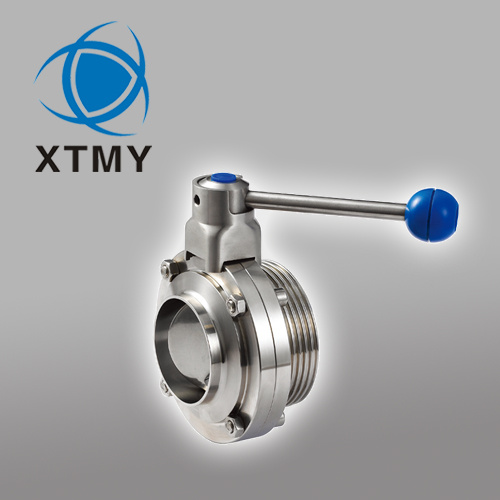

The series of this valve are sanitary pneumatic or manual butterfly valves,which are widly used in stainless steel pipeline system to control and regulate medium flow.
Connection mode: welded ,clamp ,thread and so on.
Action mode: Manual
Specification: 1"-4", DN25-DN100
Material quality: SUS304, SUS316L
Seal: EPDM, Silicone
Pressure: 0-10bar
Temperature: -10-+100deg.
Polishing: Mirror Polish(Ra0.5-0.8um), Semi-polished(Ra 1.6-3.2um)
Standard: ISO, DIN, 3A, SMS, IDF, AS, BS
Application: Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry
|
Size |
A |
B1 |
B2 |
G |
C |
L |
T |
|
|
DN10 |
78.0 |
12.0 |
13.0 |
RD28X1/8 |
10X10 |
136.0 |
1.5 |
|
|
DN15 |
78.0 |
18.0 |
19.0 |
RD34X1/8 |
10X10 |
136.0 |
1.5 |
|
|
DN20 |
78.0 |
22.0 |
23.0 |
RD44X1/6 |
10X10 |
136.0 |
1.5 |
|
|
DN25 |
78.0 |
28.0 |
29.0 |
RD52X1/6 |
10X10 |
136.0 |
1.5 |
|
|
DN32 |
86.0 |
34.0 |
35.0 |
RD58X1/6 |
10X10 |
136.0 |
1.5 |
|
|
DN40 |
90.0 |
40.0 |
41.0 |
RD65X1/6 |
10X10 |
136.0 |
1.5 |
|
|
DN50 |
106.0 |
52.0 |
53.0 |
RD78X1/6 |
10X10 |
136.0 |
1.5 |
|
|
DN65 |
124.0 |
70.0 |
70.0 |
RD95X1/6 |
10X10 |
136.0 |
2.0 |
|
|
DN80 |
139.0 |
85.0 |
85.0 |
RD110X1/4 |
10X10 |
136.0 |
2.0 |
|
|
DN100 |
159.0 |
104.0 |
104.0 |
RD130X1/4 |
10X10 |
163.0 |
2.0 |
|
