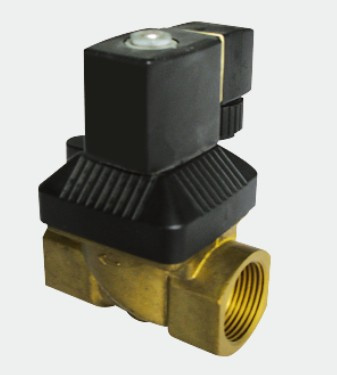

Sb116 Series Solenoid Valve - High Pressure Type 0-50bar

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Fenghua Xingyu Electron Co., Ltd.

Showroom Product Company Profile

SB116 Series Two-position Two-way Solenoid valve

No-water Hammer impact, Low noise, stable working, large flow, long service life

Speciality:

Working at Zero Pressure and used below 90degree

It can be used in gas, water, oil, weak acid, alkali

Low Noise, No-water hammer impact, stable working, large flow, long service life

Coil Model: BD-A-3

Change to Ex-proof & suitable armature, it can used as Ex-proof valve, the coil made from thermosetting plastic encapsulating, the protection class IP65, Plug confirms with ISO standard

Specification:

Media: Gas, water, oils, weak acid. alkali

Working Type: Fake-Direct Action

Pattern: Normally Close

Orifice: 10-20mm

Kv Value: 2-4.8

Connection Port: G1/4'' ~ 1''

Working Pressure: 0 ~1.0 Mpa

Protection Class: IP65

Power: AC: 14-17VA, DC: 8-20W

Insulation Class: F class

Valve Body Material: Aluminum / Brass / Stainless Steel

Seal Material: NBR /VITON

Response Time: 0.05S

We are manufacturer for valve series, such as ball valve, butterfly valve. solenoid valve, pulse valve etc. Our goods have been sold to the USA, Germany, Holand, Italy, France, Korea and other countries and regions. Our products, liquid valves, liquid gas check valve, liquid line solenoid valve, liquid relief valve, liquid crystal light valve, liquid solenoid valve, liquid level control valve, liquid flow control valve, liquid pressure relief valve, liquid nitrogen valve, liquid withdrawal valve, liquid injection valve, liquid line service valve, liquid propane valve, liquid dispensing valve, liquid sampling valve are produced according to the ISO9001: 2000 standards. We hope that we will be your best partner in china.

Prod Model:	SB116
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Pilot Operated
Connection Form:	Thread
Valve Structure:	Direct-Acting Piston Structure
Application:	Water Industrial Usage
Power Supply:	AC/DC

The company is located at Xikou, Fenghua, Which is a state scenic spot. The company grew out of Xikou Shuangbo Electronic Element Factory. It is specialized in production of magnet coil and special solenoid valves and accessories of electric appliances with more than 10 years of experience from 1990. The company has excellent production facilities and testing devices, with strict delivery inspection. It has passed ISO9001 quality system certification. Part products have gained CE mark and safety mark. The products have been applied to several hundred pneumatic, hydraulic and electric appliances industries, and new items are developed for many companies. They are well received by cutomers.

The company takes science and technology as backbone and seeks development by quality and reputation. It will treat sincerely every old and new customers with its good quality products and reasonable prices and best services.
