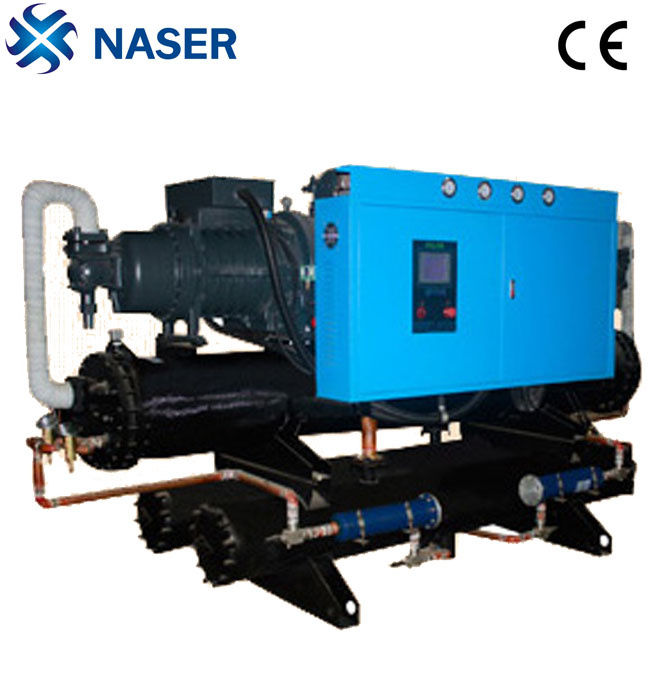

Screw Water Chiller/Cooled Hermetic Chiller Units

Screw Water Chiller/Cooled Hermetic Chiller Units
Price: US $ 12500/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
As an industrial water chiller, this water-cooled screw chiller has the following features:

1. Our compressor is imported from Italy, France and so on, being of high-quality built-in safe protection, with low noise, the electricity of province is durable.

2. Cooling capacity range: 113.8kw~838kw

3. Normal conditions: Chilled water inlet temperature is 12 degree, outlet temperature is 7 degrees. Cooling water inlet temperature is 30 degrees, outlet temperature is 35 degrees. But the lowest temperature can be -25 degress.

4. Stardard Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%, Can also be customized according to customers'request

5. The quantity of compressor can be one or two, each compressor is independent refrigeration system. Each other run independently. When the one is working, the other can be working or not.

6. Use PLC microcomputer control from Germany Siemens LCD touch screen, both English and Chinese human-machine interface.

7. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.

8. Our standard refrigerant is R22, but you can choose to use environmental refrigerant such as R407C, R134A or R507.
chart of technical parameters of water cooling spiral long rod chiller unit
Type     Screw Water Chiller
Model     NWS-40WSCS NWS-50WSCS NWS-60WSCS NWS-70WSCS NWS-80WSCS NWS-100WSCS NWS-110WSCS NWS-120WSCS NWS-140WSCS NWS-160WSCS
norminal output 50HZ Btu/h 388513 493664 541802 628176 726499 893102 993815 1075751 1281274 1431832
    KW 113.8 144.6 158.7 184 212.8 261.6 291.1 315.1 375.3 419.4
    Kcal/h 97868 124356 136482 158240 183008 224976 250346 270986 322758 360684
    USRT 32.4 41.1 45.1 52.3 60.5 74.4 8208 89.6 106.7 119.2
Power Input     380V/3P/50HZ
Compression Compressor Power 28.7 35.7 37.6 43.7 50 7.3 67 72.6 85.4 94.6
  Quantity Piece 40HP*1 50HP*1 60HP*1 70HP*1 80HP*1 100HP*1 110HP*1 120HP*1 140HP*1 160HP*1
Flow regulator   Termoexpension valve
Retrigreant   R22
condenser style Hub pipe type
  water flow m3/h 23.27 29.47 32.14 37.28 43.04 52.76 58.7 63.55 75.55 84.32
  diamater of nipple DN 80 80 80 100 100 100 100 125 125 125
evaporator style Hub pipe type
standard freezing water flow m3/h 19.57 24.87 27.29 31.64 36.59 44.98 50.06 54.18 64.54 72.12
diameter of standard nipple DN 80 80 80 100 100 100 100 125 125 125
machine weight   Kg 750 850 900 1100 1280 1600 1800 2080 2200 2700
Type     Screw Water Chiller
Model     NWS-80WSCD NWS-100WSCD NWS-120WSCD NWS-140WSCD NWS-1600WSCD NWS-200WSCD NWS-220WSCD NWS-240WSCD NWS-280WSCD NWS-320WSCD
norminal output 50HZ Btu/h 777026 987329 1083604 1256352 1452998 1786205 1987631 2151503 2562548 2863663
    KW 227.6 289.2 317.4 368 425.6 523.2 582.2 630.2 750.6 838.8
    Kcal/h 195736 248712 272964 316480 366016 49952 500692 541972 645516 721368
    USRT 64.7 82.2 90.2 104.6 121 148.8 165.5 179.2 213.4 238.5
Power Input     380V/3P/50HZ
Compression Compressor Power 57.4 71.2 75.2 87.4 100 120.6 134 145.2 170.8 189.2
  Quantity Piece 40HP*2 50HP*2 60HP*2 70HP*2 80HP*2 100HP*2 110HP*2 120HP*2 140HP*2 160HP*2
Flow regulator   Termoexpension valve
Retrigreant   R22
condenser style Hub pipe type
  water flow m3/h 46.54 58.94 64.28 74.55 86.08 105.52 117.4 127.1 75.55 168.64
  diamater of nipple DN 100 100 125 125 125 150 150 150 151.1 200
evaporator style 150
standard freezing water flow m3/h 39.14 49.73 54.58 63.28 73.19 89.97 100.12 108.37 129.07 144.24
diameter of standard nipple DN 100 100 125 125 125 150 150 150 150 200
machine weight   Kg 1600 1800 2200 2700 3000 3200 3500 3700 3920 4100
Prod Model: NWS-30WSCS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Cooling Capacity: 117kw
Standard Freezing Water Flow: 20.12m3/H
Diameter Of Standard Nipple: Dn65mm
Weight: 1360kg
Compressor Power: 22.5kw
Condenser Type: Shell and Tube Type
Evaporator Type: Shell and Tube Type
Refrigerant: R22/R407c/R404A/R410A
Voltage: Optinal
Flow Regulator: Expansion Valve
Certification: SGS
Condition: New
Type: Water-Cooled
In 1989, Mr Naser (Hongkong) Group Co., Ltd. Was established in Hongkong, is a collection research and development, production, sales, service as one of the modern high-tech group company, Mr Naser through continuous improvement and improve the quality of products, the accumulation of experience design and production for many years, has laid a solid foundation for high quality products. Nagin people forge ahead, constantly innovation, honor their commitments, won the unanimous praise of the new and old customers at home and abroad, the Nagin products a wide range of services to the plastic, electronic, electroplating, laser, food, textile, chemical industry, packaging, pharmaceutical and other industries.

In 1992, Mr Nagin group senior was unanimously approved by the division of labor, build factory in Hengli Town, Dongguan city investment, plant name as ---- DongGuan Naser Machinery Co., Ltd Dongguan naser machinery inherits the naser group spirit of enterprise, always adhere to "survive by quality, technology innovation, market-oriented, to serve and development" purposes, the gold group future development to a new height. NAser know, want to be in the wake of the financial crisis to achieve rapid development, we must actively implement quality + brand + standardization strategy, rely on independent R & D and innovation, so as to realize the diversification of products, superior quality, customer, service integration. As a leading member of plastic auxiliary industry, Mr Naser based on reasonable profit on the full range of services to customers, and strive to achieve greater development in the auxiliary equipment industry.

The leading product s: Cold water machine, industrial cold water machine, water cooling machine, water-cooled industrial chillers, air-cooled chiller, air-cooled industrial chillers, dryers, dehumidifiers, dehumidifier, hopper dryer series, mould temperature control machine, mold temperature machine, mold temperature machine oil type, water type mold temperature machine series, fully automatic suction machine, single suction machine, split suction machine series, plastic crusher, crushing machine, plastic crushing machine, plastic machine, plastic machine, plastic crusher, strong crusher, plastic crusher, machine series plastic scrap, color mixer, mixing machine, mixing machine, plastic mixing machine, plastic mixing machine, mixer, large tonnage of mixing machine, large tonnage blending machine, large tonnage mixing machine, vertical color mixer, vertical mixing machine, vertical mixing machine, horizontal mixing machine, horizontal color mixer, series, horizontal mixer tower, cooling tower, cooling tower, cooling tower, cooling tower water tower industry, high temperature, high temperature industrial water tower, high temperature industrial cooling towers, high temperature cooling tower, countercurrent tower and installation engineering etc.
