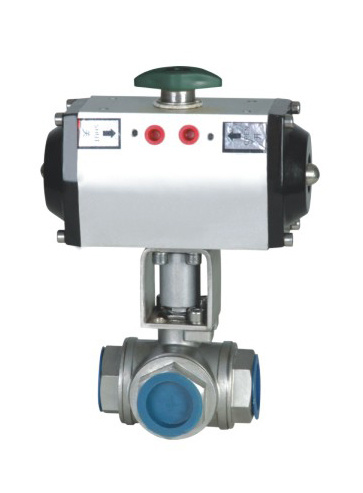

RV Q641F screwed pneumatic three-way Ball valve includes split flow and convergent flow type and it is a multi-port ball valve with two side or four side valve seat. Any port can be used as inlet without leakage. Three ways can be made into L-shaped port or T-shaped port and operate through inputting 4~20mADC signal and 0.4~0.7Mpa gas source. The product is widely applied to foodstuff industry, environmental protection industry, water treatment industry, light industry, petrochemical industry, paper-making industry, etc.
Model preparation instructions
G— Temperature type: G in temperature, room temperature slightly
P— Body material: P stainless steel
16— Nominal pressure: 16 1.6MPa
F— Sealing surface material: F PTFE
14— Connection: 14 threaded L-shaped valve, 15 threaded T-ball
6— Rotation mode: 6 pneumatic
Q— Valve type: Q ball valve
RV— River-wave product
As one of the four subsidaries of Shanghai River-wave International Group Co., Ltd, Shanghai River-wave Fluid Machine Manufacturing Co., Ltd. Was accredited with Shanghai Hi-tech Enterprise in 2010. The application of the first-class fine machining center, CNC machine tools as well as control valve flow characteristics testing and monitoring center makes it highly effective for us to provide users with flow curves, flow characteristic curves of the control valve and other curves related to pressure, flow and temperature by means of microprocessor control.
Currently, Shanghai River-wave put its major focus on manufacturing control valves, regulating valves, PSA pneumatic sequencing valves, electric control valves, ball valves, butterfly valves, globe valves and products of other series. We have been proving valves for Germany BASF, Bayer, Shanghai Waigaoqiao Shipbuilding Co., Ltd, Yangzi Petrochemical Co., Ltd. Jiangnan Shipbuilding Works, etc...The company has been granted more than 30 patents. From 2007 to 2011, Shanghai River-wave has been assredited with Contract Honoring and Credit Keeping Enterprise for consecutively four years. Meanwhile, River-wave has obtained the TS National Manufacturing License for Special Equipment and CE Certificate, CCS Certificate for ships, etc.
Core Value of Shanghai River-wave: Satisfied customers, happy employees, assured Stockholder, stainable development.
