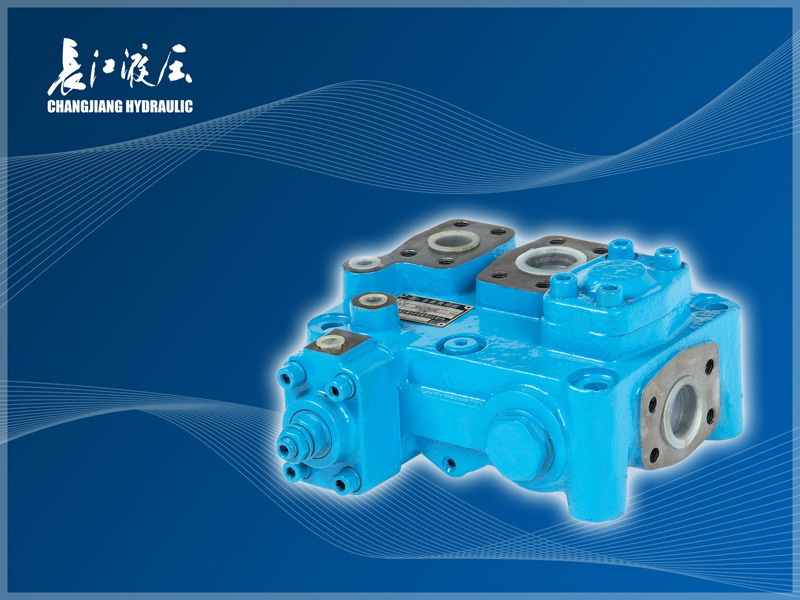

The scv series steering control valves are our company design for the development of the domestic loader models and the development of new products, priority by the valves, valve in the order, such as unloading valve combination. With full load feedback hydraulic steering gear, steering pump, steering components and other major components of the fuel tank full hydraulic steering system is large and medium-sized loader to a more advanced system, a combination of hydraulic control components, The product is widely applicable to the confluence of the two-pump hydraulic system loader can also be applied to other engineering machinery hydraulic system.
The SCV series steering control valves have great power to operate a light, flexible, safe and reliable, with the old model used to compare the system can save 30% energy, greatly reducing the temperature rise of the hydraulic system and improve the efficiency of the machine.
The SCV series steering control valves composition of the priority valve\sequence valve and unloading valve(see the Figure of installing and connecting dimensions). Priority valve priority to ensure the steering system to provide a stable flow(port CF), The part of sequence valve set off with a valve open or closed by unloading valve to control action. In the steering control system, port p link to steering pump, port CF link to Port t of load feedback full hydraulic steering gear, portef connect the outlet of pump in parallel then link to port P of steering valve, and throughout the hydraulic systemcomposed of synthetic fuel pump double loop. In the process, when the work pressure on the system below the transfer fixed pressure valve in the order value, to pump oil through the valve in the order of one-way valve to open the mouth by the EF system to work in oil, the valve to achieve double -pump confluence function; When the system pressure is higher than the work of the order value of the pressure valve will be transferred, by order of set-off valve in the open valve to control the unloading valve (tuo 2-way valve) to open, then I EF department to pump the oil supply was cut off (in the order one--way valve in the valve closed), and the steering system to maintain the normal work of the CF population, if the steering system is not working, which at the same time zero-pressure pump to unloading (to pump oil directly from the fuel tank T flows back to the mouth, the work of the pump at this time, single pump, reducing the whole flow, lower power consumption, energy -saving system).
