Silence Check Valve
Product introduction
Oversized silence check valve is flow-line designed according to hydrodynamics and the pressure loss is very little. The valve is installed at the outlet of the pump, and it closes before the fluid flow backward, so prevent water-hammering, water-hitting and destructive impact. So the valve can run quietly in the system. It is widely used in feeding/draining system, fire protection, heat supplying system and industry.
Main technical parameters
Nominal pressure: 1.0-2.5MPa
Nominal diameter: 300-1200mm
Service: Water, oils, sea water, sewage
Working temperature: 0-80
Flanged end: GB/T17241.6 GB9113
Inspection and test: GB/T 13927 API 598
|

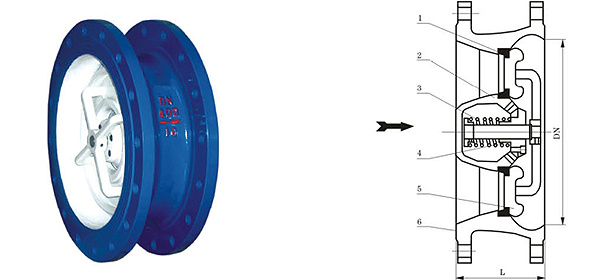

Material |
|
part |
body |
disc |
bearing |
spring |
Diversion shuttle |
seat |
|
material |
GG25 |
ZQA19-4 |
ZQA19-4 |
SUS316 |
Gg25 |
ZQA19-4 |
|
Main dimensions unit:mm |
|
DN |
300 |
350 |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
1000 |
1200 |
|
L |
181 |
184 |
191 |
203 |
219 |
222 |
280 |
356 |
368 |
432 |
524 |
|
