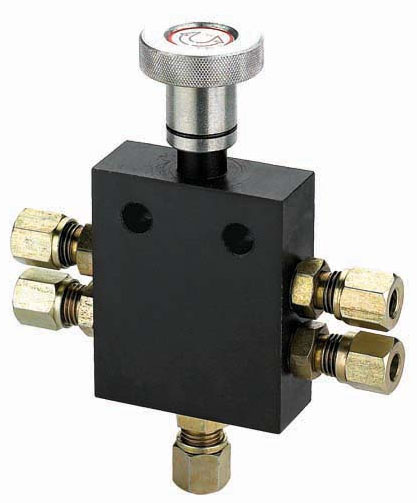

From the side of structure, it is a kind of resistant distributor with a stop valve. After going along the switch of the valve plug and the damp, the oil is distributed to oil outlets evenly in the same pressure. When it is not necessary for lubricating, we can screw down the switch of the stop valve. This product is applied to the lubricating system in machinery with not much lubricating points and irregular lubrication.
Type
| Nominal pressure
| Oil-supply mouth
| Medium
| Diameter of oil-in pipe
| Deameter of oil-out pipe
| Weight
|
MPa
| PCS
| mm
| mm
| Kg
|
1JLF-6
| 20
| 1
| N22~N68
| 8
| 6
| 1.11
|
1JLF-8
| 8
|
2JLF-6
| 2
| 6
| 1.19
|
2JLF-8
| 8
|
3JLF-6
| 3
| 6
| 1.27
|
3JLF-8
| 8
|
4JLF-6
| 4
| 6
| 1.35
|
4JLF-8
| 8
|
Wenzhou Weidong Lubrication Equipment Co., Ltd., is a main specialized production each kind of high, low dehydration pressing, thin oil lubricating utensils and hydraulic pressure part.
Our company has 48 varieties, more than 300 specification products, has been specialized in manufacturing electrically operated lubrication pump, the gasoline pump, distribution device, valve motion, and so on. We have passed following certification: ISO9001: 2000 can save the cost bye directly taking the place of international homogeneous superior products, so they are always enjoyed by lots of customers
We are willing to establish long-term business relation with all customers on the basis of honesty. Trustworthiness, deploitation and innovative entrepreneurship.
