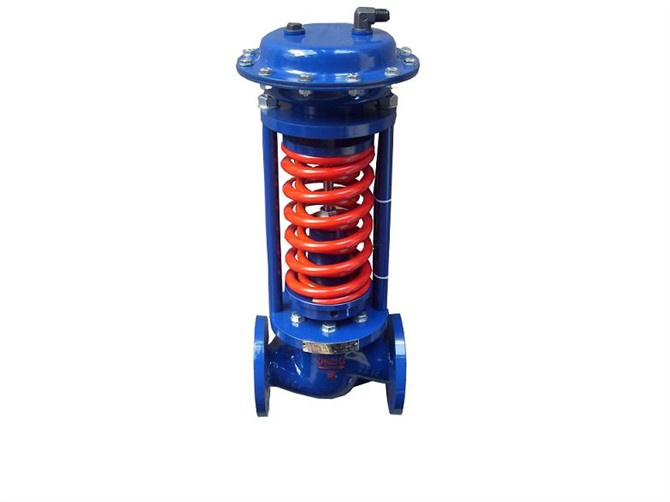

Low-maintenance proportional regulators requiring no aux
Iliary energy
Frictionless plug stem seal with stainless steel bellows
Control line kit available for tapping the pressure directly at the valve body
Wide set point range and easy set point adjustment over a nut
Exchangeable actuator and positioning springs
Spring-loaded, single-seated valve with upstream and downstream pressure balancing1) by a stainless steel bel Lows
Plug with soft sealing for high sealing requirements
Low-noise standard plug · Special version with a flow divider St I or St III (NPS 1½ To 4/DN 65 to 100) for further noise level reduction Versions.
Nominal size DN (mm)
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
Rated flow coefficient (KV)
|
7
|
11
|
20
|
30
|
48
|
75
|
120
|
190
|
300
|
480
|
760
|
1100
|
1750
|
Rated travel (mm)
|
8
|
10
|
14
|
20
|
25
|
40
|
50
|
60
|
70
|
Nominal pressure PN (Mpa)
|
1.6,4.0,6.4
|
Control band of pressure (MP a)
|
15- 50 40- 80 60- 100 80- 140 120- 180 160- 220 200- 260 240- 300 280- 350 330- 400 380- 450 430- 500 480- 560 540- 620 600- 700 680- 800 780- 900 880- 1000 980- 1500 1000- 2500
|
The flow characteristic flows ' )
|
Drive quickly
|
Regulate the precision ' % )
|
± 5
|
Use the temperature ' )
|
≤ 350 |
