Self-Operated Pressure Type Control Valve

Self-Operated Pressure Type Control Valve
Price: US $ 100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union

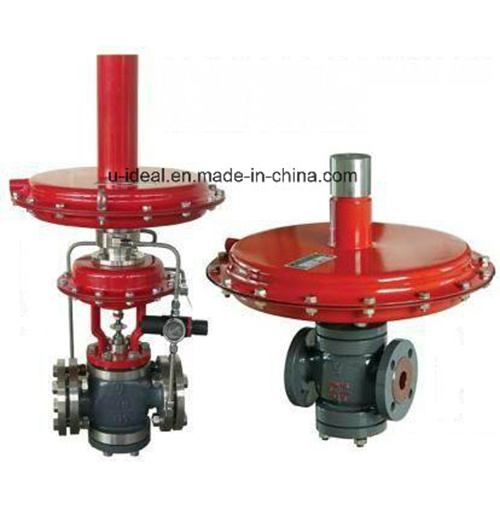

UI800P series self-operated pressure control valve makes use of the media self-energy to automatically modulate the valve. The unique characteristic of the valve is that it can work in the place without electricity and gas, which is an energy saving and environmental product. With acute action, the pressure set value can be modulated during operation according to on-site pressure requirement. Ordinary product can adopt quick open characteristic, linear and EQ also can be adopted. It is widely used to reduce pressure, stabilize pressure ( to control outlet pressure) or release pressure, stabilize pressure ( to control inlet pressure)of gas, fluid, steam media in petroleum, chemical, power, metallurgy, food, light textile, resident building ect. Various industrial equipment.

Specifications:
Body typeUI800P UI801Z UI800P
  Body size  1/2"~12"(15A~300A)
  Body rating  ANSI Class150~600,PN1.0 MPa ~PN6.3 MPa
  Fluid temp.  -5~+250ºC
  Connections  Flange(RF\MFM\RJ)
  Body materials  WCB\WC6\CF8\CF8M,etc.
  Trim materials  304SS\316SS\17-4PH,etc.
  Pressure modulating range  0.1~1000KPa
  Flow characteristics  Equal percentage\Linear\ Quick open
  Leakage  Metal seat:ANSI Class IV

  Soft seat:ANSI Class VI

Prod Model: UI-800
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body Size: 1/2"~12"(15A~300A)
Body Materials: Wcb\Wc6\CF8\CF8m,etc.
Connections: Flange(RF\Mfm\Rj)
Fluid Temp.: -5~+250oc
Body Rating: ANSI Class150~600,Pn1.0 MPa ~Pn6.3 MPa
