Self regulating Control Valve
Feature
No external energy, automatic adjustment
Simplifying equipment, energy conservation
Compact structure, fewer parts, light weight
Easy to install and operate
Regulating performance, accurate flow coefficient

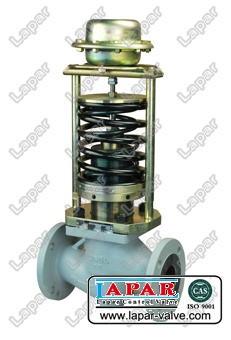

LPI11 Self regulating Control Valve
Parameter
Actuator Self regulating
Control Inteligent
DN 20~300mm
Pressure PN1.6~25.0Mpa, ANI150~1500Lbs, JIS10~100K
Temperature Standard Type: 60~350° C
Low temperature Type: To be customized
Flow characteristics Quick opening
Regulation accuracy +/-5~10%
Leakage class Hand Seal: IV grade
Soft Seal: VI grade
Connection Flange
Structure Standard Type, Low temperature
Bellows Seal Type, Cooling Type
Body & Cap Material WCB, WCC, WC6, CF8, CF8M, CF3M
Stem Material 304, 316, 316L 17~4pH
Spool Material 304, 316, 316L, 17~4H, Surfacing Stellite
Packing Material PTFE, RTFE, Flexible graphite
Medium Gas, Water and Oil, etc
Option Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve
Remark Commissioning has been completed in the factory
Connected to the gas source and the input signal can be used
