1. Features
A. Many pumping holes, can be used alone or with two vacuum gauge
B. The material of centre of the body is stainless steel and special plastics. The material of the tank is special antisepsis plastics.
C. Equipped with special fluid muffle to reduce the friction noise of the gas and liguid in water. The vacuum will be higher and more stable.
D. Corrosion resisting, no pollution, low noise, convient to move and can add vacuum control valve if the customer needs.
E. The material of the water tank is special plastics, corrosion resisting to the things with acetone, aether, chloroform and some other chemiclas.
|
Parameters/Model |

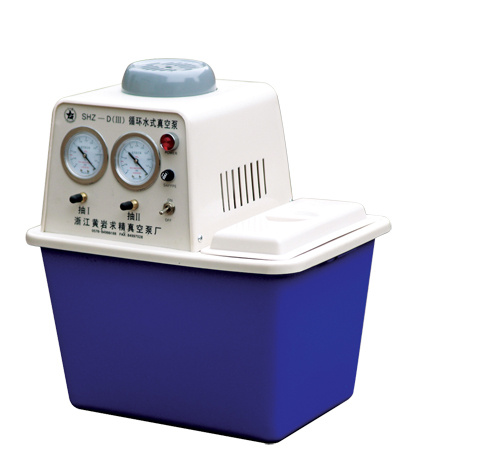

SHZ-D(III) |
|
Power(w) |
0.18 |
|
Voltage(V/HZ) |
220/50 |
|
deliverylift(M) |
5 |
|
body materials |
Lcr18 |
|
Maxium vacuum(Mpa) |
0.098 |
|
Single pumpdown(L/min) |
10 |
|
Number of pumpdown |
2 |
|
water tank capacity(L) |
15 |
|
Dimensions(mm) |
380×280×420 |
|
Weight(kg) |
15 |
Zhejiang Taizhou Qiujing vacuum pump Co., Ltd was built in1986. It`s a professional manufacturer of vacuum pump. At present, we possess 2XZ, 2XZ-B, XZ series rotary vane vacuum pumps and SHZ series water ring vacuum pump, etc. They are widely used in electronic components, device manufacturing, medical analysis equipment, refrigeration and other industries. Among them, 2XZ-B series in which the main pump as a complete single-crystal furnace vice use, small size, light weight, low noise, start easy, not anti-oil features.
We have excellent variety of processing equipment, testing facilities are available, process integrity and strong technical force. Our mission is quality first, excellence, reputation first. We will sincerely expect customers to discuss cooperation.
