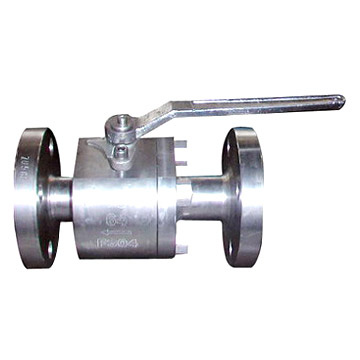

Detailed Selling Lead Description
Specifications:
1) Design standards:API 6D, API 608
2) Inspection and test standards:API 6D, API 598, API 607, API 6FA, JIS B2003
3) Face-to-face standards:ANSI 16.10 / API 6D, JIS B2002
4) Connection standards:ANSI B16.5, JIS B2212, JIS B2214
5) Flange standards:ANSI B16.5 / ANSI B16.47
6) Size:1/2" - 6", full bore or reduced ball
7) Class:150 - 600lbs
8) Temperature:-28 - 350
9) Body / bonnet:WCB / CF8 / CF8M / CF3 / CF3M
10) Seat:13%Cr + PTFE / RPTFE
11) Ball:304 / 316 / A105 + ENP / 316L
12) Stem:13%Cr / 316 / 304 / 316L
13) Sealing:Soft sealing and flexible graphite, metal-to-metal
14) Operation:Manual, pneumatic, electric, hydraulic and Pneumatic-hydraulic
15) Accessories:Fire-safe, locking device, extended stem, blow-out Proof stem, sealant injection fittings
Packing:Wooden crate for sea transportation
Zhejiang Yongjia Chenggao Valve Manufacturing Co., Ltd. is a specialise producted API, GB. hard seal and soft seal ball valves' factory. it has been over ten years old. The company has perfect hardware and software facilities and professional researchers. In developing stage of the program, the program team undertook design for technics and engineering, adopted series of CAD and processing simulation system, the valves are qualified testing by Machinery Industry Quality Inspection Center for Valve Products and have obtained ISO9001: 2000 quality system certificate.
