Single Body Sewage Combination Air Valves, Air Release Valve

Tianjin U-ideal Single Body Sewage Combination Air Valves ,Air release valve

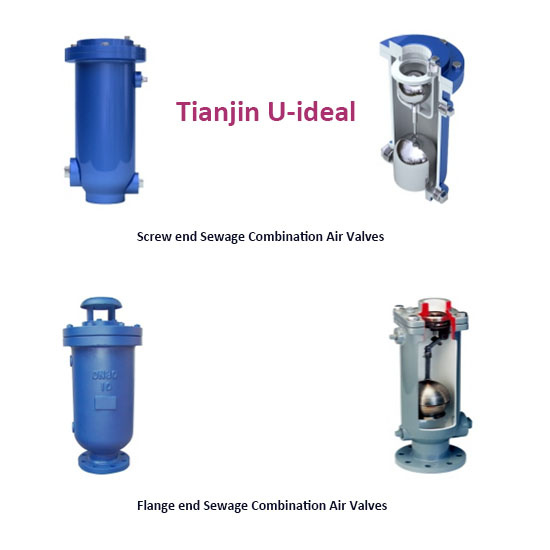

Single Body Sewage Combination Air Valves Design Features:
Operate same as Air Valves for Water, differing only in appearance with elongated taller bodies. Elongated bodies minimize clogging by permitting use of a much longer float stem, to prevent the sewage from fouling up the mechanism. For ease of maintenance, Flushing Attachments are recommended with the Valves, as shown. When adding Sewage Air Valves to your pipeline, the same criteria applies, as with the standard Air Valves. However, the potential for air entrapped with Sewage pipelines, is even greater than that found in water lines, because Sewage media generates large quantities of gases. Therefore, it is recommended each high point be protected with an automatic Sewage Air Release Valve.

Air vent valves are used to allow the pressure in the tank to balance while preventing the spillage of the fluid through the vent lines. These valves allow the free flow of fluid or air in or out of a chamber or tank until they close, usually activated by a float.
During refueling, incoming fuel dis-places the air in the tank. The vent valve allows this air to escape through a designated vent path
When the tank is full, the float valve closes preventing the fuel from escaping. These valves also allow air to re-enter the tank as fuel is consumed, preventing dangerous negative pressure and potential fuel starvation. Vent valves protect the fuel tank from pressure damage resulting from expansion and contraction of the fuel due to changes in temperature. In some applications they incorporate measures to prevent the fuel from exiting the tank when the aircraft is inverted either during flight or in an emergency.

Why remove air from a water system?
Every building services engineer knows that air trapped in either a hot or chilled water system can cause trouble, such as excessive noise, corrosion and increased maintenance costs. Air can cause air locks which
inhibit the filling of the system or the priming of pumps. It can seriously affect the accuracy of flow measurement meters and regulating valves. Under extreme conditions it may even temporarily decommission plant.
Air and other incondensable gases considerably reduce heat transfer efficiency. A film of air 1 mm thick presents the same barrier to heat transfer as a wall of copper 13 m thick!
Entrapped air in any water system is a threat to thermal efficiency. It is particularly damaging in a chilled water system which does not have the natural deaerating ability of hot water.

Origin	Tianjin China
Brand	Tianjin U-ideal Instrument
Connection	Flange or thread
Export Markets	Global
Packing	Wooden Case or Carton

About us	Our company is specialized in the manufacture of valves, ,flow meters,level gauges,etc
