1. Advanced equipment
2. Strong commonality
3. Compact form
4. Reliable in use
5. Macthing spool are provided

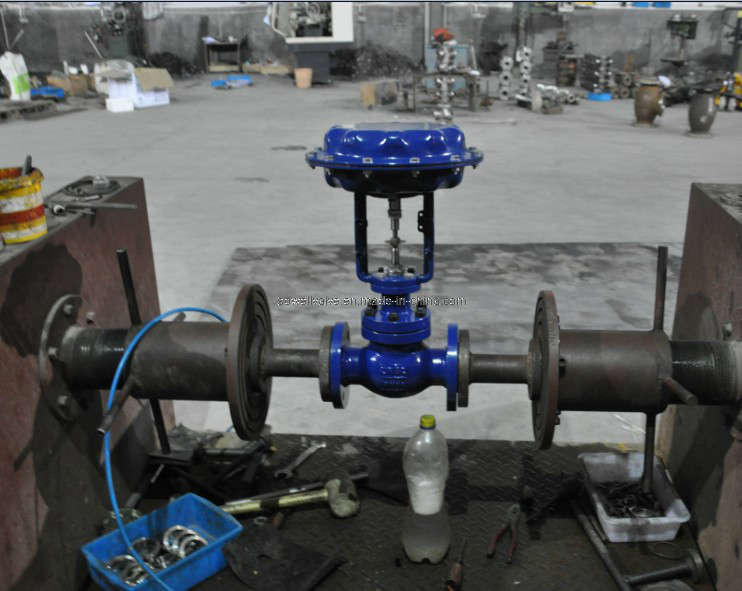

Pneumatic diaphragm cage single seated control valve
Specifications:
It widely used in chemical, petroleum, power plants, light industry, textile, metallurgical industrial production. Particularly applied to the situation of less leakage, greater differential pressure between valve inlet and valve outlet.
Pneumatic single-seated control valve(ZXG) use on-oriented structure, with mutil spring actuator. Compact structure, light weight, sensitive action.
Main parts materials:
Valve body, valve cover: ZG230-450, ZGlCr18Ni9Ti
Spool, the valve seat: 1Cr18Ni9T, Levin Titanium Alloy Welding Division + 1Cr18Ni9Ti 1Cr18Ni9Ti
+ PTFE
Stuffing: PTFE flexible graphite
Gasket: Rubber, , graphite spiral wound gasket
Membrane covered: A3 1Cr18Ni9Ti
Corrugated Diaphragm: NBR folder enhanced polyester fabric
Spring: 60Si2Mn
Stem, putting: 2Cr13, 1Cr18Ni9Ti
|
Valve Size DN(mm) |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
200 |
|
Rated Flow Coeff. Kv |
LIN |
1.8 |
2.8 |
4.4 |
6.9 |
11 |
17.6 |
27.5 |
44 |
69 |
110 |
176 |
275 |
440 |
690 |
|
EQ % |
1.6 |
2.5 |
4.0 |
6.3 |
10 |
16 |
25 |
40 |
63 |
100 |
160 |
250 |
400 |
630 |
|
Press. Rating PN (MPa) |
0.6, 1.6, 4.0, 6.4 |
|
End Connections |
Flanged end(GB2555-81, GB2556-81) |
|
Flow Characteristics |
LIN, EQ% |
|
Valve Action |
Air to Close, Air to Open |
|
Inherent Rangeability |
50: 1 |
|
Air connection |
M16× 1.5 |
|
Supply Pressure (MPa) |
0.14, 0.25, 0.4 |
|
Ambient Temp. (Degree) |
-40 ~ 85 |
|
Actuator |
Actuator Type |
ZH-22 |
ZH-23 |
ZH-34 |
ZH-45 |
|
Effective Area (cm 2 ) |
350 (Diaphragm) |
560 (Diaphragm) |
900 (Diaphragm) |
|
Rated Stroke (mm) |
16 |
25 |
40 |
60 |
|
Spring Range (kPa) |
20 ~ 100, 40 ~ 200, 80 ~ 240, 20 ~ 60/60 ~ 100 |
|
External Dimensions (mm) |
L |
PN 0.6\1.6 |
181 |
184 |
222 |
254 |
276 |
298 |
352 |
451 |
600 |
|
PN 4.0 |
194 |
197 |
235 |
267 |
292 |
317 |
368 |
473 |
600 |
|
PN 6.4 |
206 |
210 |
251 |
286 |
311 |
337 |
394 |
508 |
650 |
|
H |
Normal Temp. |
398 |
410 |
455 |
457 |
610 |
622 |
640 |
870 |
890 |
|
High Temp. |
548 |
560 |
620 |
627 |
790 |
807 |
850 |
1130 |
1150 |
|
H1 |
PN 0.6 |
45 |
50 |
65 |
70 |
80 |
95 |
105 |
132 |
160 |
|
PN 1.6 |
52 |
57 |
75 |
82 |
92 |
100 |
110 |
142 |
170 |
|
PN 4.0 |
52 |
57 |
75 |
82 |
92 |
100 |
117 |
150 |
187 |
|
PN 6.4 |
65 |
70 |
85 |
90 |
102 |
107 |
125 |
172 |
207 |
|
Ø A |
285 |
360 |
470 |
|
W(kg) |
PN 0.6\1.6 |
19 |
20 |
26 |
30 |
47 |
55 |
65 |
130 |
175 |
|
PN 4.0\6.4 |
23 |
24 |
35 |
40 |
66 |
78 |
99 |
160 |
250 |
