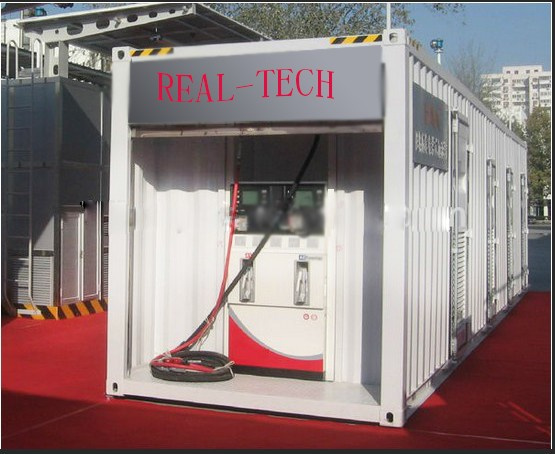

Skid-Mounted Refueling Device

Skid-Mounted Refueling Device
Price: US $ 39000/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: T/T
Contact Supplier
Wenzhou Blue Sky Electronic Equipment Co., Ltd.
Showroom Product Company Profile

Internation standard , Mobile fuel filling station in container , Easy migration & installation, Low costs,easy to operate.

for gasoline:(it had  gas and oil recycle system  )



1. 20 feet container(Contains the explosion-proof material)    1 set



2. 15000L round tank  (φ2270mm*4270mm double wall inside 6mm,outside 5mm .

 double or single storeroom optional



3. fuel dispenser(two nozzles) (220V):1set.



4. anti-explosion centrifugal pump (380V):1set



5. Explosion-proof lights and explosion-proof switch:1 set


6. fire extinguisher(4kgs):2 bottles


7. Valves, filters, etc:1  set


8. The overflow interlock:1 set



9. liquid level guaging system :1set


10. breather valve:1pcs



11. Explosion-proof lights and electric control cabinet       1set


12 . gas and oil recycle system       1set


FOR DIESEL



1. 20 feet container(no explosion-proof material)    1 set



2. 15000L round tank  (φ2270mm*4270mm double wall inside 6mm,outside 5mm .

 double or single storeroom optional



3. fuel dispenser(two nozzles) (220V):1set.



4. anti-explosion centrifugal pump (380V):1set



5. Explosion-proof lights and explosion-proof switch:1 set


6. fire extinguisher(4kgs):2 bottles


7. Valves, filters, etc:1  set


8. The overflow interlock:1 set



9. liquid level guaging system :1set


10. breather valve:1pcs



11. Explosion-proof lights and electric control cabinet       1set





NO. CONTAINER DIMENTIONS OIL TANK CAPACITY OIL TANK DIMENSIONS ( mm) OIL TANK LAYERS chamber/     oil type THICKNESS
1@ 20feet 15000L φ2200*4200 single wall single chamber 5mm
double chambers 5mm
φ2270*4270 double wall single chamber inside6 , outside5
double chambers inside6 , outside5
2@ 40feet 30000L φ2200*8300 single wall single chamber 5mm
double chambers 5mm
φ2270*8370 double wall single chamber inside6 , outside5
double chambers inside6 , outside5
3. The container including:
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Oil (',Gas) Production Machinery
Type: Pumping Equipment
Certification: OIML
