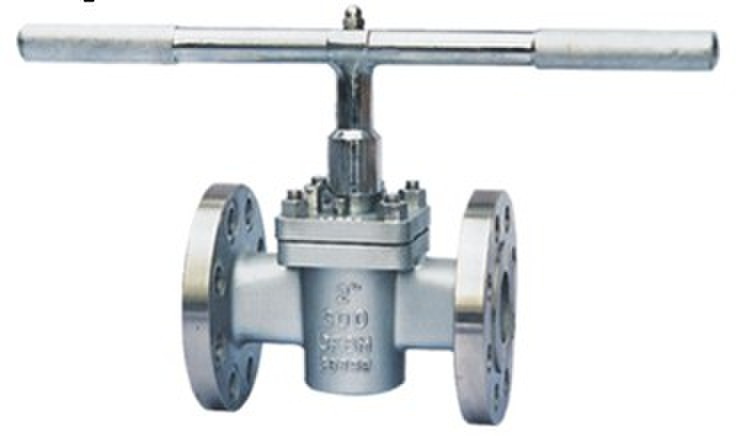

Sleeve Type Plug Valve
Brief introduction:
Sleeve type soft sealing plug (ANSI) is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc under nominal pressure of CLASS 150-900LBS
Features:
The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance
Its sealing is realized by the sealing face around the sleeve. It has unique 360 degree metal edge for protection and fixing of the sleeve.
There Is no cavity in the valve for accumulation of medium.
Metal edge provides the function of self-cleaning when the plug is rotated, applicable to the operation condition that is glutinous and apt to smudge.
Its characteristic double-direction flow makes installation and sue more convenient.
The materials of the parts and sizes of flanges can be reasonably configured according the actual operation condition of the requirements of the customers, so as to meet the various needs of engineering.
Technical Specification
-Nominal diameter: 1/2"-14"
-Nominal pressure: 150Lb 300Lb 600Lb 900Lb
-Applicable Medium: water ,gas,oil,and other causticity medium.
Applications Standard
-Manufacture standard : ANSI B16.34
-Face to face dimension: ANSI B 16.10
-Flange dimension: ANSI B 16.5.MSS-SP-44
-Test: API 598. API 6D
No. | Part name | material |
1 | Body | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
2 | Sleeve | PTFE |
3 | Plug | ASTM A182-Gr,F6a,ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316L |
4 | Gasket | Flexible graphite + stainless steel, PTFE |
5 | Adjusting gasket | ASTM A182-Gr,F6a,ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316L |
6 | Cover | ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
7 | Adjusting bolt | ASTM A193-B7, A320-B8, A193-B8M |
8 | Net | ASTM A194-2H, A194-8, A194-8M |
9 | Bolt | ASTM A193-B7, A320-B8, A193-B8M |
10 | wrench | ASTM A105-WCB |
