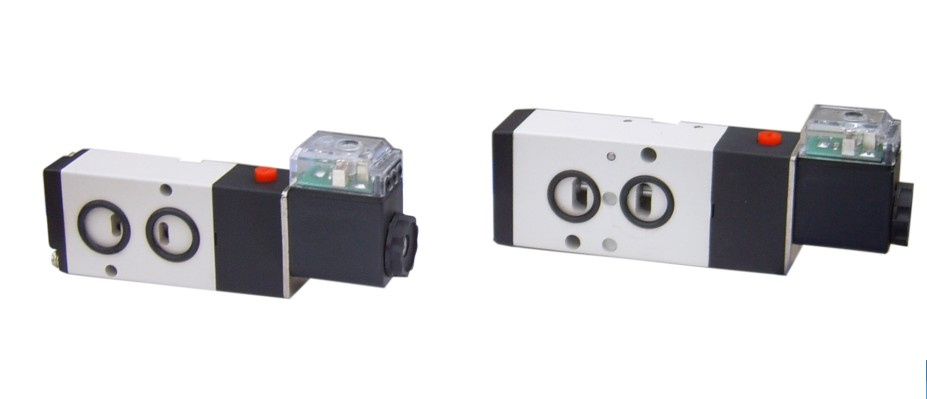

Slenoid Valve (4YM)
Price: |
Negotiable |
Min Order: |
1 |
The solenoid valve can be used to install side!
Model | 4YM210 4YM220 4YM230C.P.E | 4YM310 4YM320 4YM330C.P.E | 4YM410 4YM420 4YM430C.P.E |
Joint Pipe Bore | G1/8” G1/4” | G1/4” G3/8” | G1/2” |
Working Medium | 40 Micron Filtered Air |
Motion Pattern | Inner Guide Type |
Working Pressure | 0.15~0.8Mpa 1.5~8Bar |
Max. Pressure Resistance | 1.0Mpa 10Bar |
Operating Temperature Range | 5~50 ºC 41~122F |
Voltage Range | ± 10% |
Material of Body | Aluminum Alloy |
Power Consumption | AC : 4.5VA DC : 3W |
Insulation & Protection Class | F Class IP65 |
Wiring Form | Lead Wire or Connector Type |
Highest Action Frequency | 5 Cycle/sec |
Shortest Excitation Time | 0.05 Second |
Ningbo Haitian Automatic Industry Co., Ltd is an enterprise mainly specialized in development, production and sale for pneumatic products. It is located in Xikou, Ningbo, a national tourist zone with beautiful scenery and convenient traffic. It mainly manufactures more than 20 series of products, such as air preparation components, controlling valves, air cylinders, auxiliary components, including regulator valves, solenoid valves, gas control valves, draw-off valve, pneumatic cylinders and so on, nearly a hundred specifications.
Since its foundation, it constantly sticks to the managing principle of "taking technological innovation as the core and market demand as the guide", and carries out the managing theory of "people first and win by quality", it aims at "perfect quality, service, technology and reasonable price", and it is ensured by "perfect sales network and service system", widely servicing in machinery, environmental protection, metallurgy, light textile, printing and dyeing, medicine, food, light industry, boats and ships, engine, scientific research and other industries.
