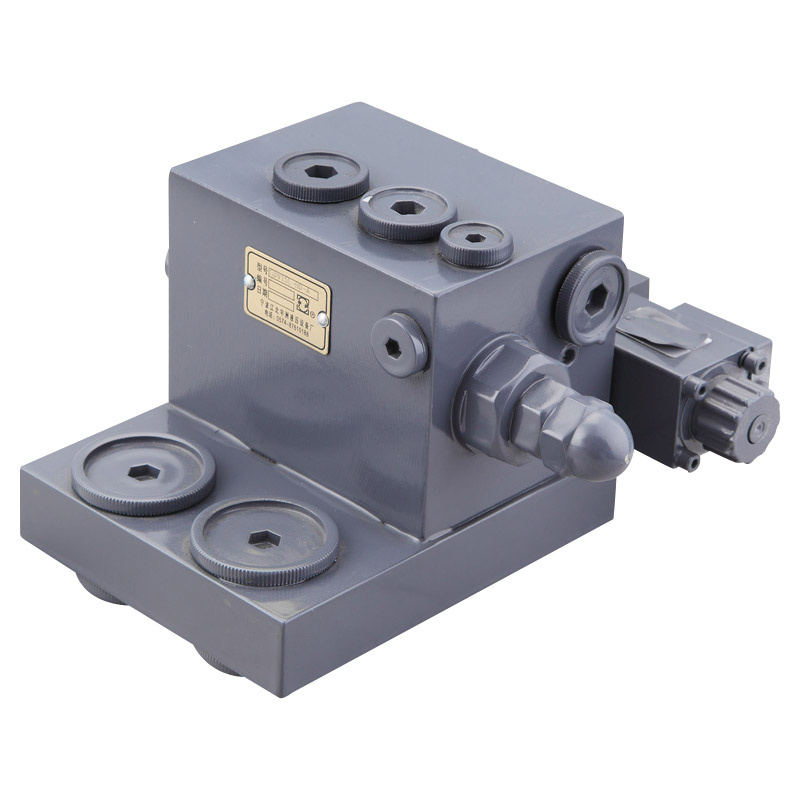

Slewing Cushion Valve Sdv15L-H-a
| Price: |
US $ 300/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
SDV15L Series slewing Cushion Valve for mobile crane
ApplicationIn order to improve the cushion performance and safety work of slewing mechanism in 8~16 ton hydraulic mobile crane, we adopt the advantage of XH10Z rotary cushion valve and develop SDV15L cushion valve group. The products are installed on the hydraulic mobile crane from 8 to 20 tons.Functions and features
The product reserves the main functions of XH10Z rotary damper valve:
1. Automatic protection for normal overload;
2. The automatic shock-buffering function can automatically keep the synchronous rotation of arm support, wire rope and cargo in case of any sudden start or stop and sharp acceleration of deceleration so as to reduce cargo swing and the vibration of arm support to the largest extent.
3. The solenoid valve control can realize free rotation at low pressure.
4. When the rotary oil motor produces negative moment condition, cushion valve A or B can recharge oil from T cavity to prevent system suction.
Basic parameters
1. Rated pressure: 25MPa;
2. Rated flow: 63L/min
3. Rated pressure of adjustable back pressure valve: 1~2MPa
4. Working voltage of solenoid valve: 24V
5. Hydraulic control pressure: Px=0.6~2.2MPa
(or operation by mechanical mode)

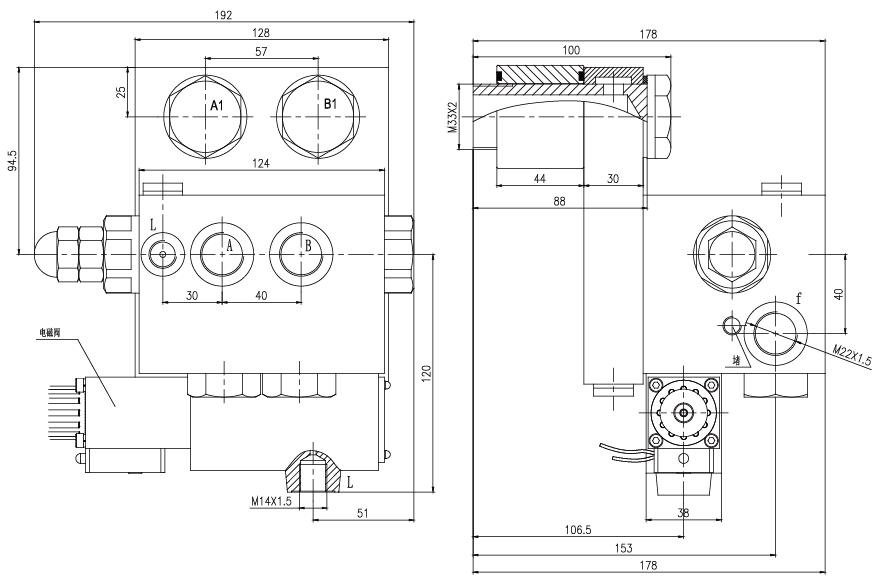

SDV15L series dimensions

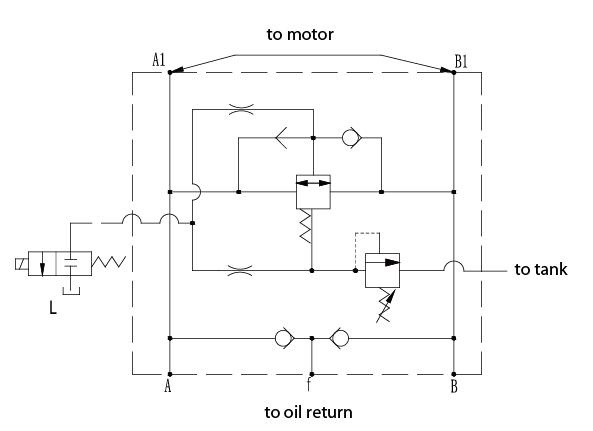

SDV15L series symbols
| Prod Model: |
SDV15L rotary cushion valve |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Hydraulic Control Unit |
