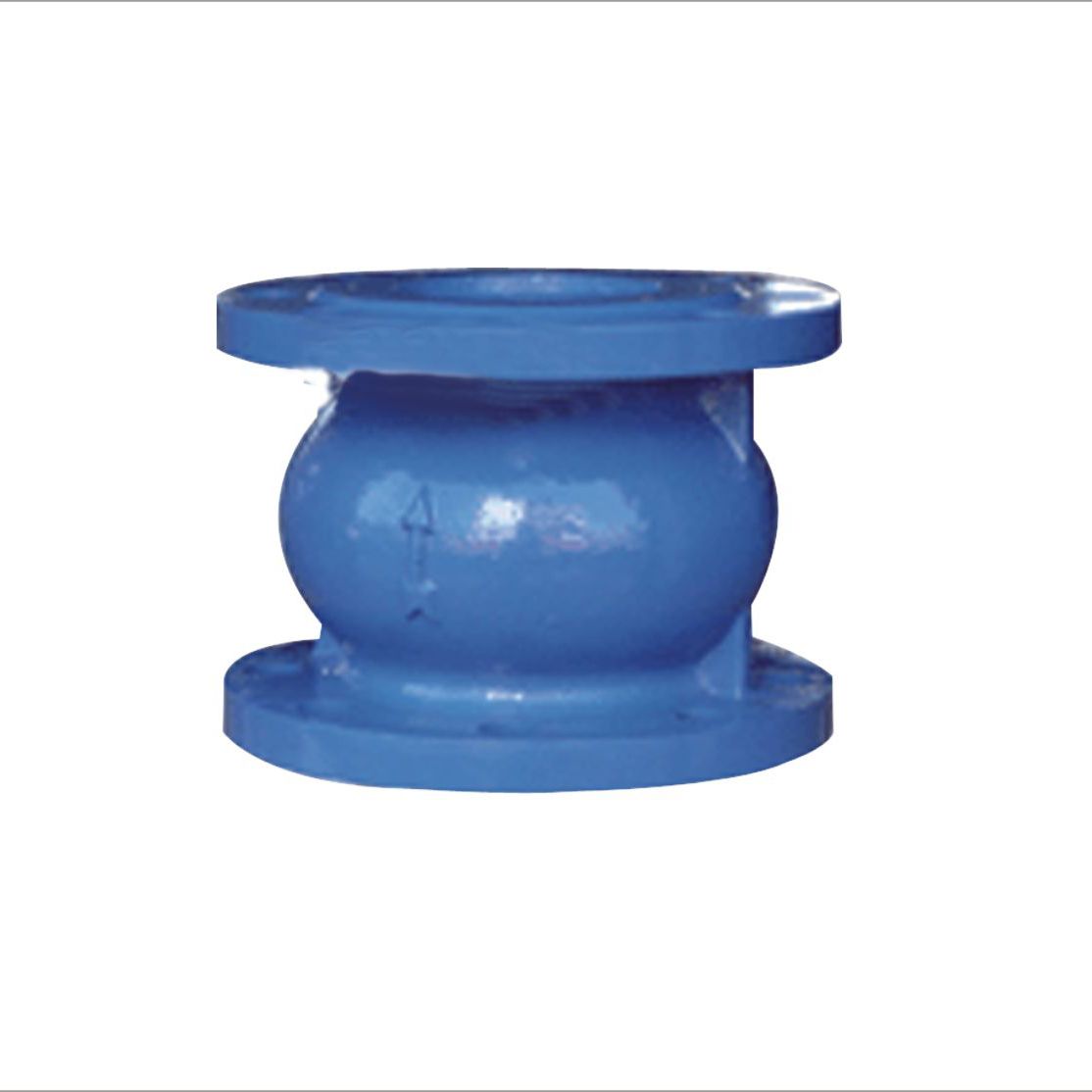

1. Nominal Diameter: 1.5"-16"/DN40-DN400
2. Working Pressure: PN10/PN16
3. Face-to face: ISO 5752
EN 558-1
4. Flange Drilling: EN 1092-2 PN10/PN16
5. Test Standard: API 598/EN 12266-1
6. Working Temperature: -10- 85
7. Material:
Body: Cast Iron
Disc: Cast iron
Seat: NBR OR EPDM
Spring: SS304
Bushing: Brass
8. Applicable Medium: Water
Feature:
1. Load spring for rapid close eliminates backflow and water hammer.
2. Stainless steel or bronze internals, high abrasion resistance, good sealing performance and strong corrosion resistance.
3. Horizontal installation or vertical flow-up installation.
4. Seal packing conforms to hygienic standards.
5. He surface and internal of valve body are with epoxy resin corrosion-proof coating.
6. All water-flow path, small in water head loss.
Tianjin Tanggu Huayang Valve Co., Ltd, established in 1956, is a share-holding company which originated from the system reform of Tianjin Tanggu Valve Plant. It is the manufacturer firstly imported the technology of centerline butterfly valve. Huayang is a modern valve company providing R&D, manufacture, sales and service.
The headquarters locates in Wuqing Economic Development Area, and enjoys convenient transportation. It covers an area of more than 40, 000 square meters. The company has its own R&D center, manufacture center and inspection center, obtained 12 national patents, passed ISO9001 certificate by TUV and CE certificate by LR.
The product adopts advanced manufacturing processing and strictly conforms to international standards, such as API, DIN, BS, EN, GB, etc. The main produces are butterfly valve, ball valve, gate valve, globe valve, check valve, control valve, strainers etc. The products are widely used in water supply and drainage, power generation, petrochemical, coal chemical industry, metallurgy, medicine and food, etc. The products enjoy good reputation in both domestic and overseas markets.
Tianjin Tanggu Huayang Valve Co., Ltd fully implements 5S management and ERP information management system. With the principle of "leading technology, excellent quality, prompt delivery, satisfied service", we strive to build it into the top valve enterprise in China, and provide first-class product and service for customers all over the world.
