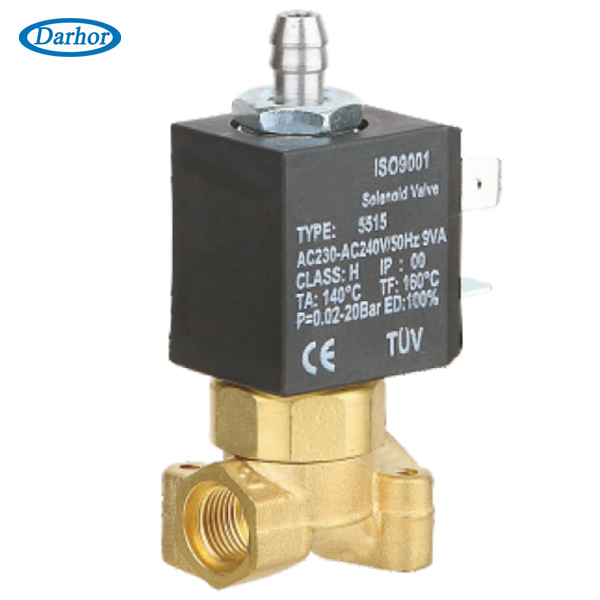

55XX Series Direct Acting Solenoid Valve,
2WAY/3WAY SMALL HOME APPLIANCES VALVE NO/NC
Characteristic:
1. Direct acting miniature construction at low power consumption
2. With TUV certificate for household appliance use Like coffee machine, electrical iron, steam cleaner
3. Applied to low pressure system, open from 0 bar
Medium: Air, Water, Steam, Oil, etc
Temperature:
NBR: -10 to 80
VITON: -10 to 150
Pressure: 55 series: 0 ~ 20 bar
Port Size: 1/8" and other
Port Thread: BSPP, BSPT, NPT
Orifice (mm): 1.0, 1.2, 1.6, 2.0, 2.6, 2.8
Voltage:
DC - 12V, 24V
AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance: +/- 10%
Coils: SA11B, 8VA (AC), 8W (DC), IP65, 100%ED
Material:
Body - Brass
Seal -VITON, NBR, EPDM
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop - SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
5515-07 3WAY
Media: Water, air, oil, hot water, etc.
Media TEP: -10 - 150
Body: Brass
Pre: 0 20.0 Bar
Port:
Body: G1/8 or NPT1/8
Top: φ 7.0mm outer dia.
Orifice: DN 1.0, 1.2, 1.5
Seal: VITON
