Smc Solenoid Valve

Smc Solenoid Valve
Price: Negotiable
Trade Terms: FOB
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P,Western Union

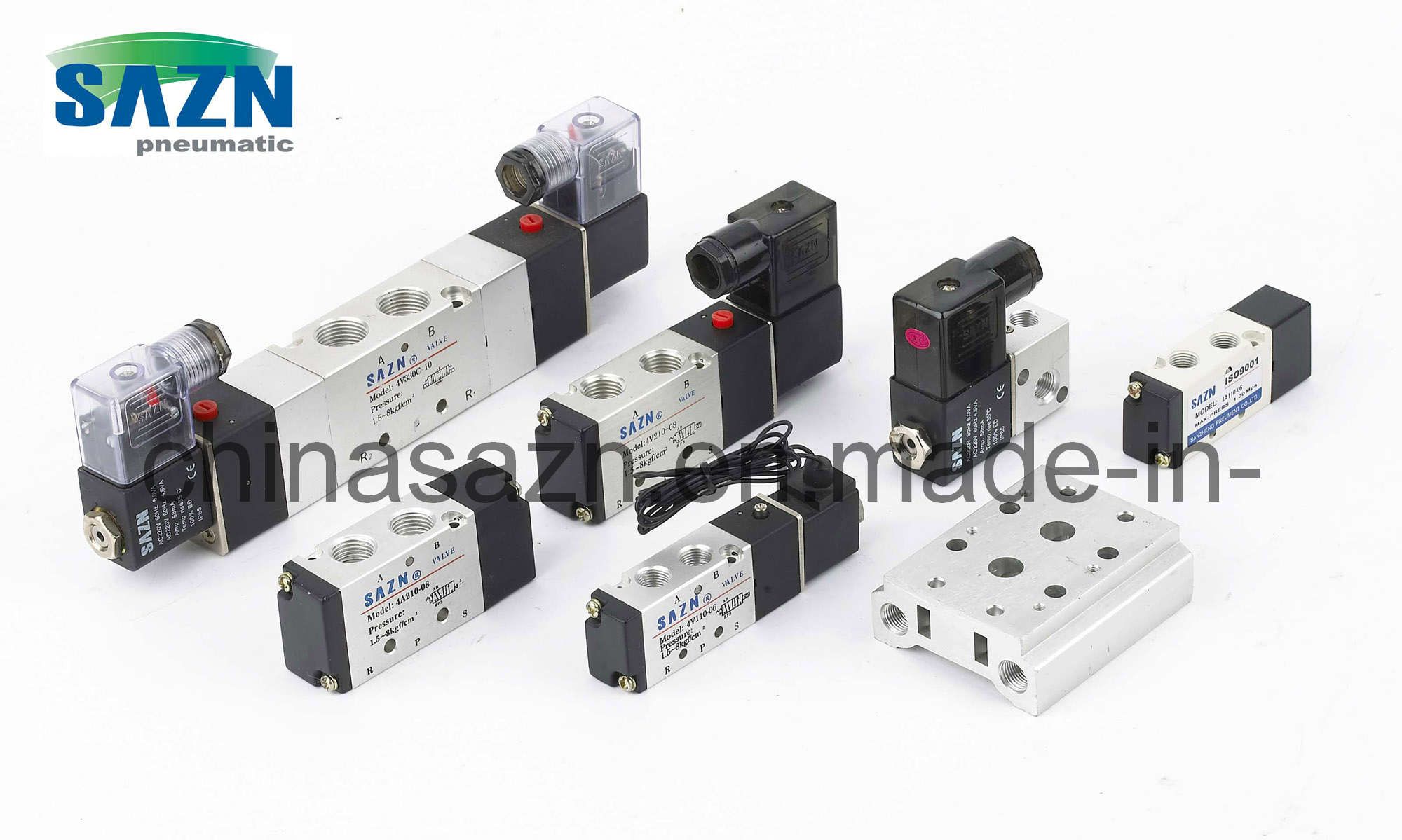

Our company offer SMC solenoid valve model is 3V, 4V, VF, 2V, US, 2W, MVSD series.
Model 4V210-08 4V220-08 4V310-08 4V320-08 4V310-10 4V320-10 4V410-15 4V420-15
Ways five potrs two position
Port size G1/4 G1/4 G1/4 G1/4 G3/8 G3/8 G1/4 G1/4
Environment temp 5-50
Effective area  16mm2 16mm2 25mm2 25mm2 30mm2 30mm2 52mm2 52mm2
opprative pressure 1.7-7.0 kgf/cm2
Max. pressure 10.5 kgf/cm2
body materail aluminium alloy
Medium Clean air
Max Working Frequency 5 times/ per second 4 times/per second 3 times/per second
Protection type   IP65
Isolation property F grade
voltage range ± 10%



















Model 2W025-08 2W040-10 2W160-10 2W160-15 2W200-20 2W200-25
2W250-25 2W350-35 2W400-40 2W500-50
Fluid applied Air, oil, water
Action mode Direction operation style
Drifice size 17 22 30
Port size G1/8 G1/4 G3/8 G1/2 G3/4 G1
Environment temp 5--80
Viscosity 20c ST
opprative pressure 0-10kgf/cm2
Max. pressure 20 kgf/cm2
body materail Brass
Oil seal material NBR or VITON
Style NC STYLE
Power consunption AC: 4.5VA DC: 3.0W













3V VALVE
Model 3V110-M5 3V120-M5 3V110-06 3V120-06 3V210-06 3V220-06 3V210-08 3V220-08
Ways two positions three ways
Port size M5 PT1/8 PT1/8 PT1/4
Environment temp 5-60
Effective area  5, 5mm2 12mm2 14mm2 16mm2
opprative pressure 1.5-8.0 kgf/cm2
body materail aluminium alloy
Medium Clean air
Max Working Frequency 5 times/ per second
Protection type IP65 IP65
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Valve Structure: Pilot Membrane Structure
Power Supply: DC Solenoid Valve
Connection Form: Thread
Type: Pilot Operated
SAZN Pneumatic Co., Ltd., is a Sino-Korea cooperation company, founded in 2000.The products cover more than 100 series with 1000 varieties, including cylinder, pneumatic tube coupling, solenoid valve, air source processing unit, muffler, pneumatic air blow gun, PU tube, pneumatic pressure machine and so on, meanwhile, we are expanding our production area to field of pneumatic complete sets, and extending our business activities to disparate fields such as import and export trade, materials circulation, investment, etc.Our products are widely applied in following industries, machinery, metallurgy, food, package, electron, tobacco, chemical, woodwork, plastic, spinning, motor vehicle maintenance and recreational facility, the products are also far sold to Europe, America, Southeast Asia, Taiwan and so on, more than 100 countries and areas.Furthermore, we have formed a high efficient relative network with users, dealers and purchasers, "SAZN"brand has been receiving more attention day by day.

with advanced production equipment, abundant technical power as well as high quality and high efficiency management team, the company always stresses on each detail, from selection of raw material to manufacture, from industrial design to brand management, from engineering project to customers, so as to ensure all the products are perfect and satisfied by customers.In 2001, the company successfully passed ISO9001 international quality system certification, which absolutely proves SAZN promise "Pursue perfect quality".

As a professional enterprise that has persevering spirit and great and far-reaching ambition, we believe in our future, and make tireless efforts, establish good business relationship with tycoons at home and abroad and hold technique communication with them.Because of this global vision, we are proud of having the outstanding level all the time, however, with our abundant inspiration and innovative gift, we will devote to contributing superexcellent products for you
