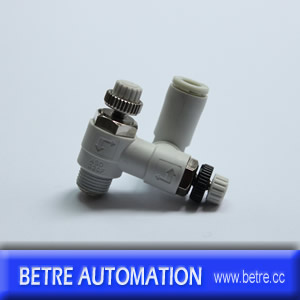

SMC Type Asd Series Dual Speed Controller
| Price: |
US $ 4.1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
SMC Type ASD Series Dual Speed Controller
Specifications| Fluid | Air |
| Proof Pressure | 1.5 Mpa |
| Max.operating pressure | 1 Mpa |
| Min.operating pressure | 0.1 Mpa |
| Ambient and fluid temperature | -5 to 60ºC(No freezing) |
| Number of needle rotations | 10 turns(M3,M5 8 turns) |
| Applicable tubing material | Nylon,Softnylon,Polyurethane
|
| Applicable tubing O.D ød | Model | T | H | D1 | D2 | D3 | L1 | L2 | L3 | L4 | L5 | A1 | A2 | M | Weight |
| Max. | Min. | Max. | Min. | Max. | Min. | (g) |
| ø4 | ASD230F-M5-04 | M5x0.8 | 8 | 9.3 | 9.6 | 10 | 11.7 | 29.4 | 17.5 | 28.3 | 25.5 | 28.6 | 25.8 | 25 | 22.2 | 7.8 | 12.9 | 12 |
| ø6 | ASD230F-M5-06 | 11.6 | 32.5 | 20.6 | 13.7 | 13 |
| ø6 | ASD330F-01-06S | R1/8 | 12 | 11.6 | 14.2 | 11.8 | 14 | 38.5 | 22.9 | 39.6 | 34.6 | 36.1 | 31.1 | 32.1 | 27.1 | 10.6 | 13.7 | 29 |
| ø8 | ASD330F-01-08S | 15.2 | 15.8 | 44.8 | 28.2 | 38.9 | 33.9 | 18.5 | 31 |
| ø6 | ASD430F-02-06S | R1/4 | 17 | 12.8 | 18.5 | 15 | 18 | 43.5 | 25.2 | 41.7 | 36.7 | 40.4 | 35.4 | 34.4 | 29.4 | 11.0 | 17 | 53 |
| ø8 | ASD430F-02-08S | 15.2 | 46.5 | 28.2 | 18.5 | 55 |
| ø10 | ASD430F-02-10S | 18.5 | 19.7 | 49.3 | 31 | 21 | 58 |
| ø6 | ASD530F-02-06S | R1/4 | 19 | 12.8 | 23 | 19.8 | 20.3 | 48.3 | 25.2 | 46.9 | 41.9 | 48.8 | 43.8 | 42.8 | 37.8 | 15.4 | 17 | 74 |
| ø8 | ASD530F-02-08S | 15.2 | 51.3 | 28.2 | 18.5 | 76 |
| ø10 | ASD530F-02-10S | 18.5 | 23.1 | 54.1 | 32.6 | 21 | 80 |
| ø12 | ASD530F-02-12S | 20.9 | 55.9 | 34.4 | 22 | 83 |
| ø6 | ASD530F-03-06S | R3/8 | 19 | 12.8 | 23 | 19.8 | 20.3 | 49.3 | 25.2 | 46.9 | 41.9 | 46.5 | 41.5 | 40 | 35.0 | 14.0 | 17 | 74 |
| ø8 | ASD530F-03-08S | 15.2 | 51.3 | 28.2 | 18.5 | 93 |
| ø10 | ASD530F-03-10S | 18.5 | 23.1 | 54.1 | 32.6 | 21 | 98 |
| ø12 | ASD530F-03-12S | 20.9 | 55.9 | 34.4 | 22 | 101 |
| ø10 | ASD630F-04-10S | R1/2 | 24 | 18.5 | 28.6 | 26.5 | 25.9 | 64.3 | 32.6 | 64.8 | 57.3 | 57.6 | 50.1 | 49.6 | 42.1 | 18.6 | 21 | 177 |
| ø12 | ASD630F-04-12S | 20.9 | 66.1 | 34.4 | 22 | 179 |
| Prod Model: |
ASD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design: |
Equivalent to SMC Asd |
| Color: |
Light Grey |
| Applicable Tubing: |
04-12 |
| Service: |
ODM OEM |
| Material: |
Brass |
| Connection Form: |
Thread |
| Structure: |
Swing |
| Function: |
Nrvr Silence |
| Application: |
Water Industrial Usage |
| Sealing Form: |
O-Ring |
| Standard: |
DIN, JIS, Bsw, GB |
