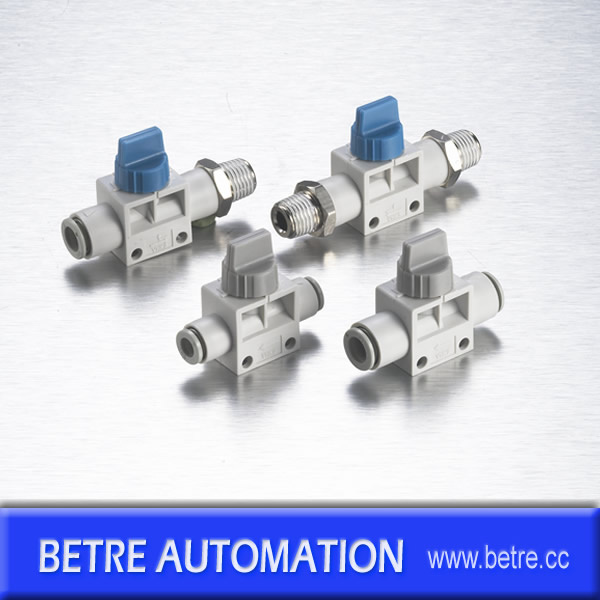

SMC Type Hand-Pull Valve Vhk Series
| Price: |
US $ 2.34/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Specifications
Valve: 2/3 port valves
Fluid: Air
Proof pressure: 1.5 Mpa
Operating pressure range: 1Mpa
Operating vacuum pressure: -100kpa
Ambient tand fluid emperture: 0 to 60
Applicable tubing material: Nylon, Soft nylon, poyurethane
|
Applicable tubing O.D(mm) |
Model |
H |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
M1 |
M2 |
Q |
Effective area
(mm 2 ) |
Weight
(g) |
|
1(P) |
2(P) |
1(P)R2(A) |
2(A)3(R) |
|
ø4 |
ø4 |
VHK()-04F-04F |
18 |
41 |
46.7 |
23.8 |
23.8 |
16.5 |
3.5 |
15.8 |
15.8 |
11 |
3.4 |
1.2 |
15 |
|
ø6 |
ø4 |
VHK()-06F-04F |
18 |
41 |
48 |
24.3 |
23.7 |
16.5 |
3.5 |
16.8 |
15.8 |
11 |
5.1 |
1.2 |
15 |
|
ø6 |
VHK()-06F-06F |
48.6 |
24.3 |
16.8 |
7.2 |
16 |
|
ø8 |
ø6 |
VHK()-06F-06F |
18 |
41 |
50.5 |
26.2 |
24.3 |
16.5 |
3.5 |
18.7 |
16.8 |
11 |
9 |
1.2 |
16 |
|
ø8 |
VHK()-08F-08F |
52.4 |
26.2 |
18.7 |
9.7 |
17 |
|
ø10 |
ø8 |
VHK()-10F-08F |
22 |
46 |
58.5 |
30.5 |
28 |
21.5 |
4 |
20.8 |
18.7 |
14 |
13.7 |
3.2 |
28 |
|
ø10 |
VHK()-10F-10F |
61 |
30.5 |
20.8 |
16.1 |
29 |
|
ø12 |
ø10 |
VHK()-12F-10F |
22 |
46 |
62 |
31.5 |
30.5 |
21.5 |
4 |
21.8 |
20.8 |
14 |
17 |
3.2 |
31 |
|
ø12 |
VHK()-12F-12F |
63 |
31.5 |
21.8 |
17.5 |
32 |
| Prod Model: |
VHK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color:Light Grey: |
Applicable Tubing:ø4-ø6 |
| Connection Form: |
Thread |
| Structure: |
Swing |
| Function: |
Nrvr Silence |
| Application: |
Industrial Usage |
| Material: |
Nylon, Soft Nylon, Polyurethane |
BETRE AUTOMATION Co., Ltd. is the professional manufacturer & Exportor in the field of spare parts of automation machines.
Our company is located in Wenzhou city which is called "Electrical City of China", more than 90% industrical electrical products are manufactured in our city, and there are more and more pneumatic factories in our city to manufacture pneumatic components during recent ten years. Our main products are as follow.
The main products of BETRE: Pneumatic Cylinder, Air Source Treatment, Directional Control Valve, Pneumatic Valve, Pneumatic Fitting, Vacuum Ejector, Vacuum Pad, Pneumatic Components, Spare Parts of Machines, and rated automatic products. We also make custom products according to customers' requirements, when customers offer drawing or samples. We have strict quality management system and professional technical team to make sure that our product quality and performance level are industry-leading.
Please refer to our company development process as follow.
1) Our company started to manufacture Solenoid valves and other pneumatic valves, Pneumatic Fittings and reated products like pneumatic silencer, blanking plug and etc. From the year of 2002;
2) Later we started to produce Pneumatic Cylinder, Vacuum ejector, Vacuum filter in 2003;
3) In the year of 2005, we began to manufacture Shaft Coupling and Valve manifold;
4) From 2010, we manufacture Air duster, Plastic fitting, PU tube, Shock absorber, and etc.;
5) Two years ago we made the moulds and manufacture vacuum suction pad.
6) We are developing new products all the time.
Our main market is Europe, North America, Sounth America, Oceania and Southeast Asia, as we only manufacture high quality products, and we design some customized products for customers as their requirements. We also help some old customers purchase products because we can get good price and control the quality well for the products. We do the inspection for all the products before delivery. Normally, we don't have MOQ requirements except the customized products, and have stock for most of the spare parts of the products.
Our products sell well in all over China and in the international market of the Southeast Asia, European, South Americaand North American Countries. BETRE is insisting on honesty to customers, mutual benefit to market, innovation and surpassing itself, BETRE will achieve the future with its high quality.
We are looking forward to establish relationship with all the sincere customers all over the world.
