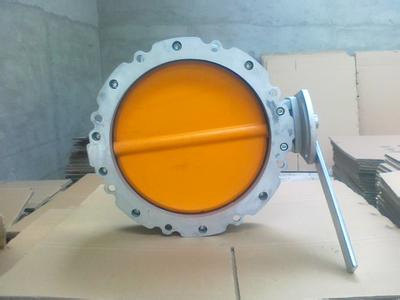

Soft Sealing Flange Double Eccentric Butterfly Valve

Soft Sealing Flange Double Eccentric Butterfly Valve
Price: US $ 10/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
1. Size, pressure, medim and temp. range as listed below:

Size

DN50 to DN5000

Pressure

PN10, PN16, PN25, PN40

Suitablem

water, and other weak corrosive liquid   etc.

Temp.

-10~120°C

 2. Standard items:

Description

Standard

Design and manufacture

EN593

Face to face

ISO5752 series14, EN558-1 series 14,   DIN3202 F4

Flange and drilling

ISO7005-2, EN1092, DIN2501

Pressure test

EN12266 ISO5208

Top flange of bare shaft valve

ISO5211

Top flange on worm gearbox for   e-actuator

ISO5210

3. Main part material items:


Name

Material

Body

ductile cast iron, WCB, stainless steel

Disc

ductile cast iron, WCB, stainless steel,   Al-bronze

Stem

SS420, SS431

Disc seat ring

EPDM,NBR,VITON

Body seat ring

SS304

Retainer

SS304, SS316

Shaft bearing

Al-bronze, self-lubricating bearing

Bolt & nuts

8.8 grade galvanized, SS304

Coating

epoxy coating, thickness: min. 250   microns, color code: RAl5015, 5017, 5010, and etc.
Prod Model: D373
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard: Standard
Port Size: 2" - 200 "
Certificate: ISO9001, CE, RoHS
Delivery Time: in 45days
Warranty: 18months
Connection Form: Flange
Work Pressure: Mid-Pressure (',2.5mpa< Pn <6.4mpa)
Structure: Double-Eccentric Sealing
Seal Form: Force Sealed
Working Temperature: Medium Temperature (',120??C
Application: Water Industrial Usage
Material Of Seal Surface: Soft Sealed
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.

We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
