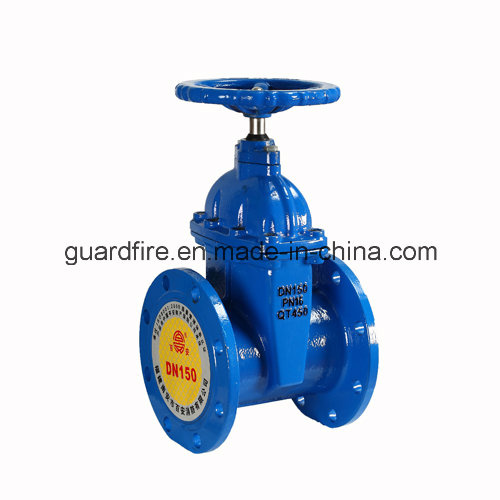

Soft Sealing Gate Valve Control Valve for Fire Fighting

Soft Sealing Gate Valve Control Valve for Fire Fighting
Price: US $ 13-775/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Product Description
1.Technical Data:
 (1) Nominal Diameter DN(mm):50(1'')~1200(48'')
 (2) Nominal Pressure PN(MPa): 1.0~4.0
 (3) Testing Pressure PN(MPa): Shell: 1.5~6  Sealing: 1.1~4.4
 (4) Suitable Mediums: Fresh water,Sewage,Sea Water,Air,Steam,Food,Medicine,Oils,Acid,etc.
 (5) Working Temperature:-40~+260°C

2.Design consideration :
Design Standard:       API 600 , EN10434 , DIN3352
Face to Face:             ASME B16.10, EN 558, DIN3202
End Flange:                ASME B16.5(ASME B16.47), EN1092, DIN2533
Buttwelding Ends:      ASME B16.25, EN12627, DIN3239
Inspection and Test:  API 598, en12266, DIN3230

3.Body Meterial could be:
Cast iron / Cast steel / stainless steel 304/316


The Reason You Choose Our Gate Vavle
1.Flat Type Seat
The tradition gate vavle will have deposit once the pipe system working , the sundries like wooden bolock , cement, scraps of paper and others will residues in the inside. It is easy to cause leakage, the flexible valve adopt flat type seat like the pipe ,it is diffficulty to cause the deposit.

2.The Overall Rubber Coating
The disc adopt high quantity rubber to coating inside and outside. Domestic first- class technology can guarantee the precise geomrtry size , the rubbee and the valve disc can connecting relaible and no easy to fall off .

3.Anti-Corrosion
The valve body adopt the epoxy coating can anti-corrosion and anti-rust, can use in sewage system.

4. No easy to fragmentation
The traditional valve will easy to fragmention cause of the crash , our valve adopt the ductile material, it is difficulty to fragmentation

5. Three "o" type seupon ring
The valve stem adopt the three "o" type seupon ring , it can reduce the the frictional resistance, by a lage margin to reduct the leakage phenomenon

6.Can used for drink
The valve innet adopt non-poisonous epoxy casting , the inlet and outlet of the valve disc were coating by rubber and will anti -corrosion can help to drink.

7.Precision casting of valve body
The valve body adopt precision casting , the precise geomrtry size can guarantee the leakproofiness of the valve.

8.Light weight
The vavle adopt ductile matreial , ompare to traditional vavle the weight will lighter more then 20%-30%, it is easy to installation and mantain.


Technical Parameters
Utility Fire fighting system or  normal system
mediaWater or foam solution to system  network
Temperator-28ºC up to 100ºC
Operation pressure12bar 175psi
Test pressure45bar 700psi
body materialCS,SI,FS,DI,SS
CertificateISO,CCC,WSF,SGS

Prod Model: RRHX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
System Power: DC24V 0.5A
Temperature: -28°c-100°c
Port Size: Dn40-Dn400
Power: Manual
Quanzhou Yu Lin Jun Fire- fighting Equipment Co., Ltd is located in Baozhou Road, Quanzhou City, Fujian Province. It's a fire- fighting equipment company which integrate research, development, production and sales as a whole. We have all kinds of products, include but not limit to Intelligent Home Device for Fire- Protection, Foam Bladder Tank, Portable Foam Fire Extinguishing Equipment, Foam Generators, Fire Hose Foam Nozzle, Foam Sprinkler, Foam Fire Hydrant, Foam Hydrant Cabinet, Cabinet gas fire extinguisher equipment, Fire Monitor(Foam/ Water monitor), Fire Fighting Water Monitor, Wet Alarm Valve, Deluge Alarm Valve, Preaction Alarm Valve, Water Flow Detector, Water Sprinkler Head, Signal Butterfly Valve, Signal Gate Valve, Outdoor Fire Hydrant, Fire Pump Connector, Fire Hydrant Cabinet, Lined Fire Hose, Fire Reel, Indoor Fire Hydrant, Direct- current Hose Nozzle, Fire Hose Coupler, Fire Extinguisher, Fire Extinguisher Cabinet, Emergency Lantern, Groove accessories and so on. All these products are widely applied in all kinds of industry, like Telecom, airlines, chemical, power and real estate and so on. It can experience the trail of time and market. The perfect product quality and after- sales service has won good reputation and high praise both from domestic and oversea customers.

We take quality as basic principle, seize the market by technical & quality and build credibility by good service and brand. We aim at developing to be a world leading technology in fire- fighting equipment company and offering best service for customers. Wish we win together and create a safe and beautiful future together.
