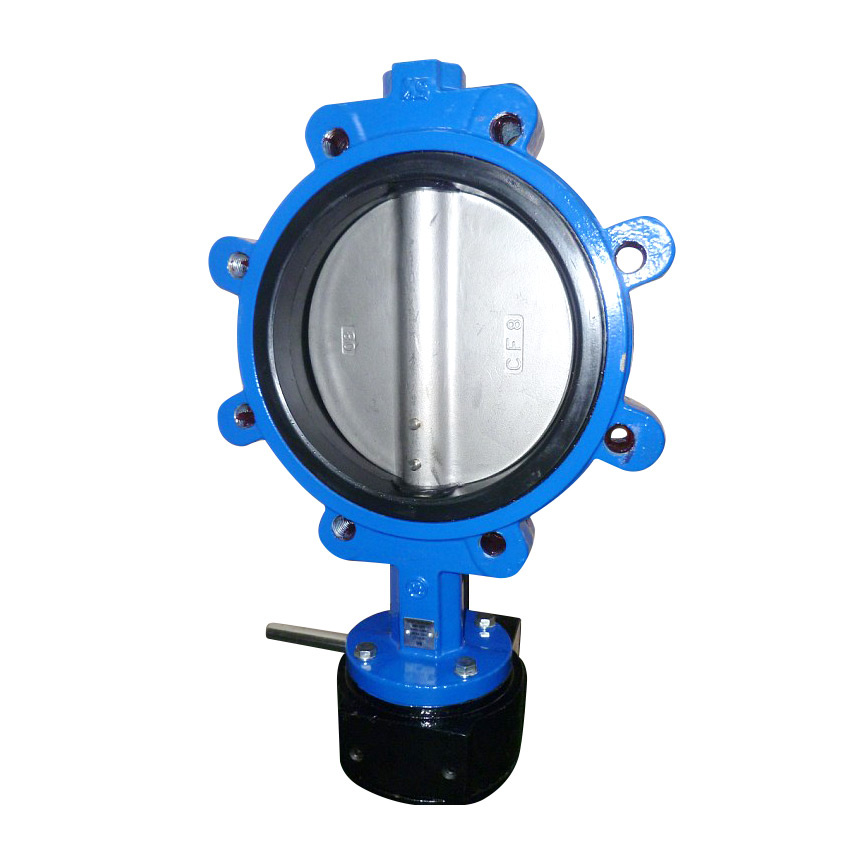

Soft Seat Lug Type Butterfly Valve with Pin

Price:	US $ 1-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Tianjin Tangfa Watts Valve Sales Co., Ltd.

Showroom Product Company Profile

Gear Operated Full Lug Butterfly Valve with Pin

Size DN50-DN1200
End flange ANSI B 16.1, EN 1092, AS 2129
Face to face EN558-1
Top flange ISO 5211
Normal pressure PN1.0/1.6/2.5MPa (150/300PSI)
Body CI / DI / WCB / SS disc-DI / CF8 / CF8M / C95400
Disc DI/ALB/Rubber lined Disc/ CF8M/CF8/Hastelloy
Stem SS416/304/316/431
Seat Hypalon/EPDM/Neoprene/NBR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White NBR/White EPDM/EPDM/PTFE
Temprature -45c~150c
Feature Small in size, light in weight and easy maintenance, it can be used as a device to cut-off or regulate
Apply Fresh water, sewage, sea water, air, vapor, food, medicine, oils. acids, alkalis, salt etc.

Features:
Available in various materials
Long service life with reliable seal and without frequent maintenance
Resilient seat design with bubble tight seal
Small size and lightweight
Easy to install and maintain
Easy to operate
Pressure test conforms to API598
Can regulate or cut off pipeline flow

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Dn50-Dn1200
Material:	Cast Iron,Ductile Iron,Stainless Steel
Work Pressure:	Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface:	Soft Sealed
Connection Form:	Lug Support
Structure:	Centre Sealing
Seal Form:	Force Sealed
Working Temperature:	Normal Temperature (',-40??C
Application:	Water Industrial Usage

Tianjin Tangfa Watts Valve Co., Ltd. is one of the biggest supplier in China. We specialize in designing, manufacturing and marketing of various low pressure valves.

Our factory covering 80, 000m2 with the registered capital USD14, 14 million, owns modernized factory buildings, production and testing equipments and strong engineering capability. It passed ISO9001: 2008, CE Certification. Our valves are widley used in most of big water projects of China and overseas.

Our Product:
1. Butterfly valve: Wafer type, Flanged type, Lug type
2. Gate valve: Non rising and rising stem type resilient gate valve, solid wedge gate valve
3. Check valve: Dual plate wafer check valve, Swing check valve.
4. Globe valve, Ball Valve, Y-Strainer, Rubber Expansion Joint and Flanges.

We offer technical expertise and willingness to work with the customer.
