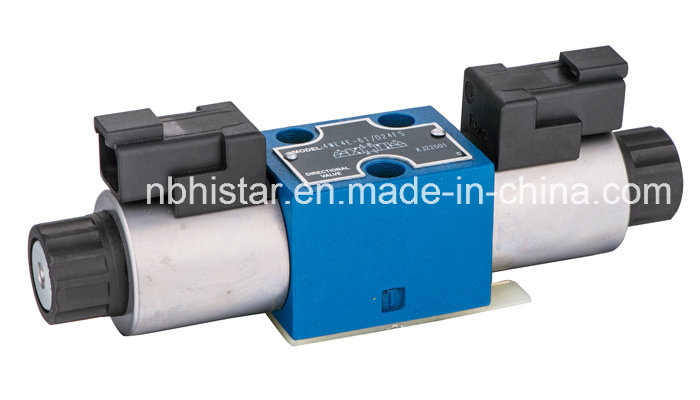

Solenoid Directional Valve (4WE4J-61 AS)

Solenoid Directional Valve (4WE4J-61 AS)
Price: US $ 15/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union
4WE series directional control valve are solenoid operated directional spool valves, these valves are used to the start, stop and direct oil flow.

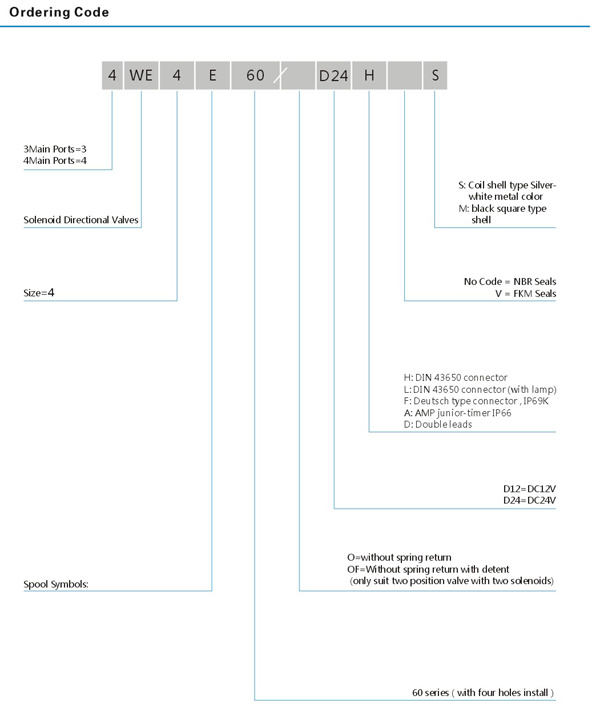

Ordering Code:

Technical Specificaton:
1. General Specification:
Weight (Double Solenoids)          kg0.89
Weight (Single Solenoid)          kg0.72
Mounting Place
Any Place
Surrounding Temperature       ºC  -20 to +50

2. Hydraulic Specification:
Max. Operating PressureMpa31.5
Max. Pressure of T portMpa21
Max. Flow Ratel/min25
Liquid medium
Mineral Hydraulic Oil, Phosphate Oil
Oil temperature Fluctuation RangeºC-20 to +80
Oil Cleaness
ISO4572:  B10≥75NAS1638:9grade
Oil Viscosity
ISO-VG32 (5420) cSt

3. Electrical Specification:
Voltage
DC, RAC
Operating ModeED100%
Voltage Tolerance%-10 to +10
Reversing and Rest timemson 50-90, off40-80 (not including RAC )
Max. Reversing FrequencyHz3
Solenoid Insulation Grade
H
Max. Solenoid Temp.ºC180
Solenoid Weightkg0.215
Power VoltageV122448110   110220
Power Type
DCDCDCDCRACRAC
Power FrequencyHz



50/6050/60
Rated Power ConsumptionW262626262929
Solenoid resistance(20ºC)ohm5.5228941389413
Operating current(20ºC)A2.181.100.500.260.33
0.17

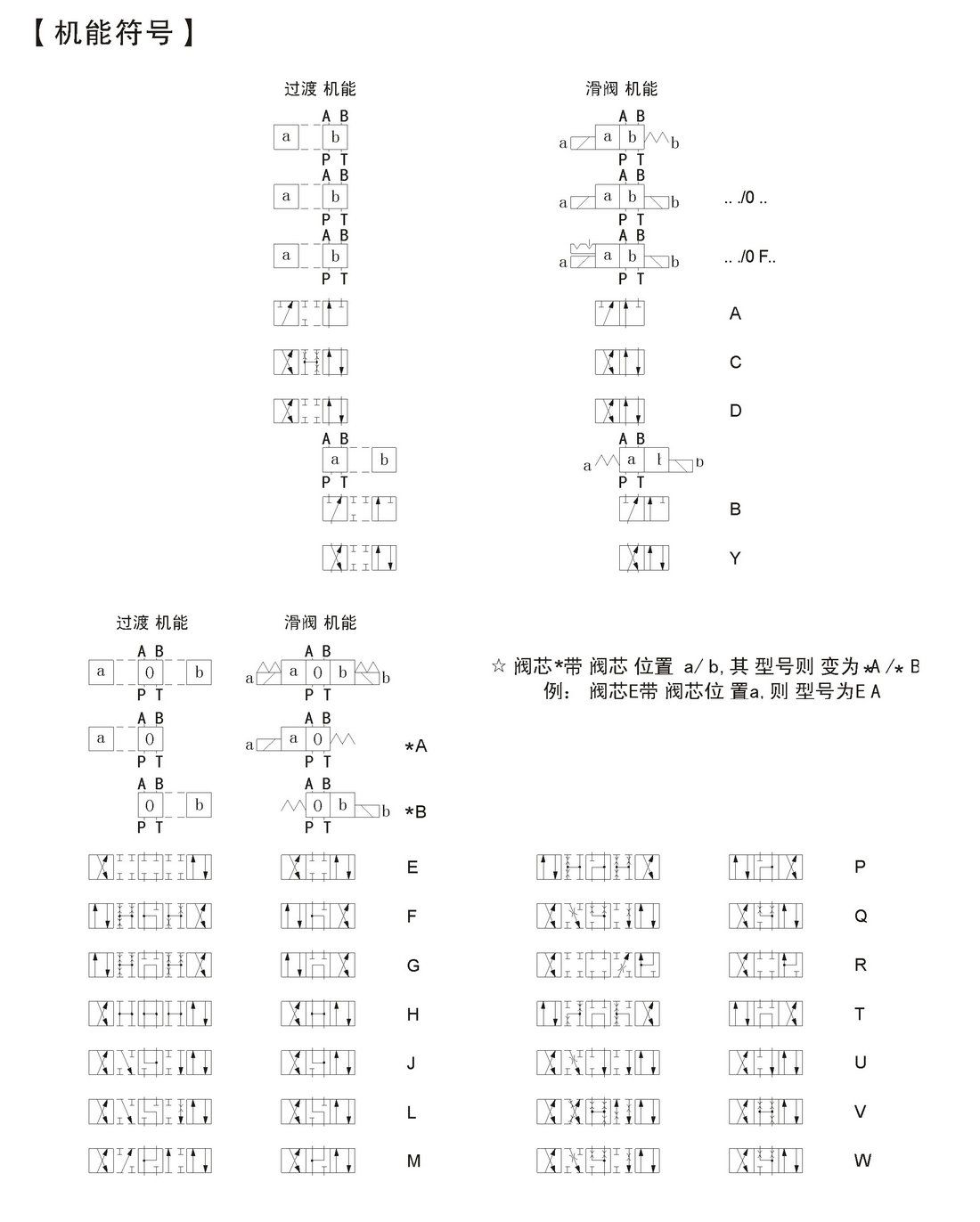

Symbol:

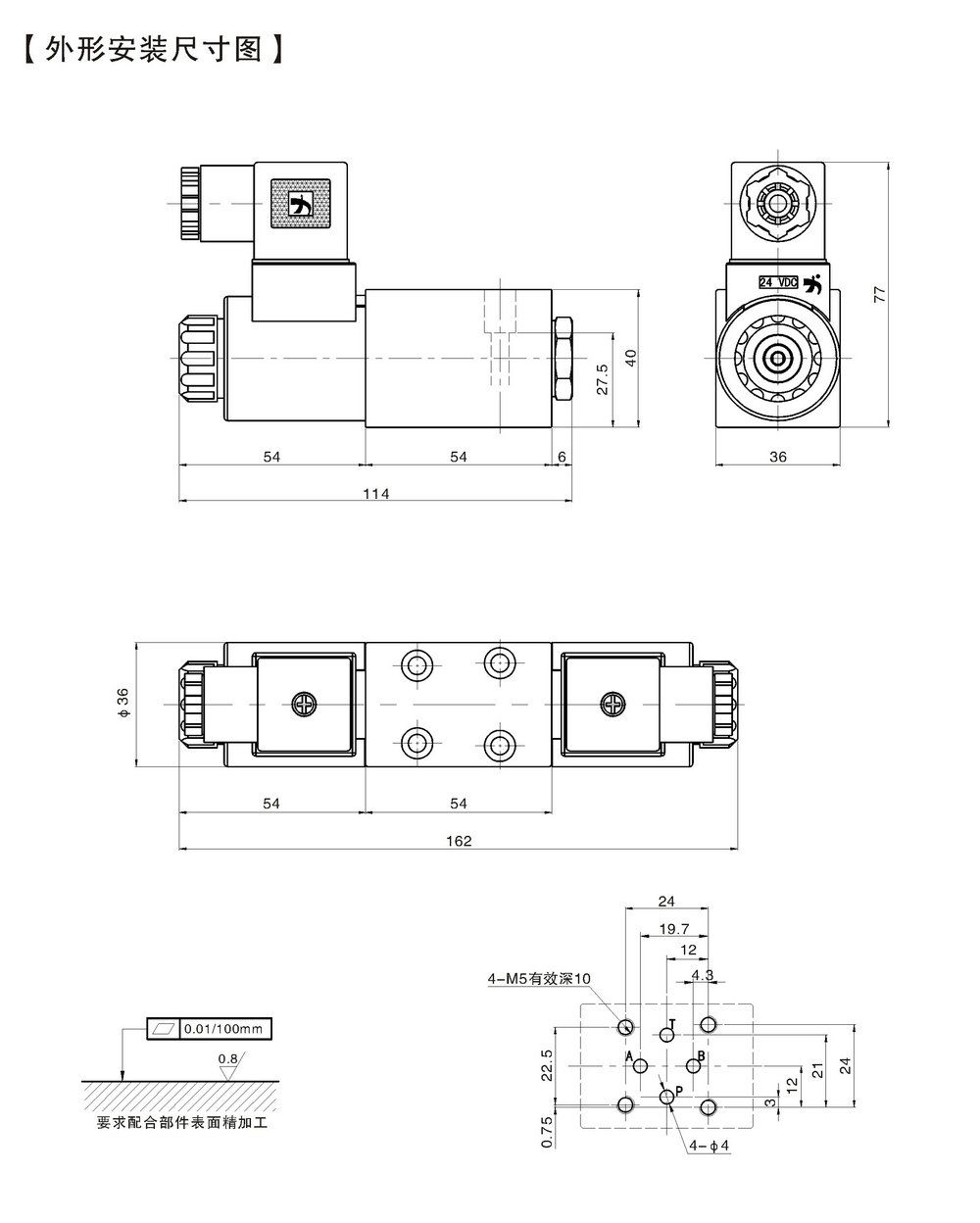

Mounting Size:

Prod Model: 4WE4J-61 AS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Household Usage
Ningbo Histar Hydraulic Co., Ltd. is a professional hydraulic valves manufacturer and exporter. Our factory was established in 2005, with years of development, now it covers an area of 10000 square meters, with 250 skilled workers. The annual production capacity reaches 0.5 million pieces. It is located in Ningbo, the second biggest seaport in China, the transportation is very convenient.

The products include directional valves, proportional valves, pressure valves, modular valves, safety valves, which are widely used in the fields of metallurgy, petrol mine, engineering, architecture, mold, chemical, mechanical tool, traffic and so on. The products have been exported to Europe, Middle East, East Asia, South East Asia, Australia, and gained good reputation due to reliable quality and competitive prices.

We persist in "customer satisfaction" as our core value. With many dedicated technicians and advanced equipments, we can provide customers with high quality products and meet their different requirements. Our products are CE approved, and we have passed ISO9001: 2000 quality system.

Cooperate with us, you will find that we are your right choice!
