Solenoid Pulse Valve in Industrial Power Station Boiler

Solenoid Pulse Valve in Industrial Power Station Boiler
Price: US $ 45-70/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T
Good quality membranes shall be selected and used for all the valves, with each part checked in each manufacturing procedure, and put into the assembly line conforming to all the procedures. Every finished valve shall be taken the electriferous blowing test.

NO.TypeQty.(diaphragm)Input SizeOuput Size
1XQAL-P-761G3"G3"
2XQAL-P-1021G4"G4"
3XQT-Y-75S2G3"G3"
4XQT-Y-76S2G3"G3"
5XQT-Z-55S2G2"G2"
6XQTH-Y-75S2G3"G3"
7XQAU-Y-75S2G3"G3"
8XQW-Y-76S2G3"G3"
9XQJ-Y-76S2G3"G3"
10XQNG-Y-76S2G3"G3"
11XQX-II-80S2G3"G3"
12XQCD-80S2G3"G3"
13XQS-Z-251G1"G1"
14XQS-Z-201G3/4"G3/4"

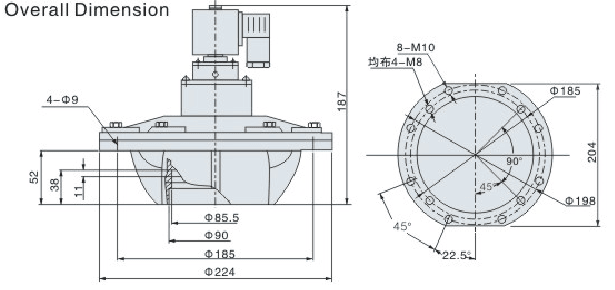

Overall Dimension:



Usage:
Electro-magnetic valve (also called diaphragm valve) is the "switch" for compressed air in the dust clean blowing system of the pulse bag filter. Controlled by the output signals of the pulse jet control device, it makes dust clean to the filter bags cell by cell to keep the resistance of the baghouse within the set range and thus guarantee the processing functions and the dust-collecting efficiency of the baghouse.
Y type electro-magnetic pulse valves are embedded valves (also called submerged ones) which are directly installed on the manifold box. They have better flow characteristics and operate with reduced pressure loss, therefore, they are suitable for conditions where the pressure of the gas source is relatively low.
Z type electro-magnetic pulse valves is a right-angle valve, with the 90 degree angle between the inlet and outlet, which is suitable for the installation connection between the gas dome and the baghouse blow tube to provide good air flow and dust clean pulses satisfying the requirements.
DD type(with 2nuts) electro-magnetic pulse valves are the right-angle valve same as Z type which is suitable for the installation connection between the gas dome and the baghouse blow tube. There are fixed nut at both ends which make it easy to install and use the valve.
ZT type electro-magnetic pulse valves are the straight valve inline, with the 180degree angle between the inlet and outlet, which is suitable for the installation connection between the inlet and gas dome, outlet and the blow tube to provide good air flow and dust clean pulses satisfying the requirements.

Working Principle:
The electro-magnetic pulse diaphragm valve is composed of two gas cells. When the compressed air is connected, it comes into the back gas cell through the orifice. The pressure in the back gas cell pushes the diaphragm closely against the outlet of the valve and the electro-magnetic valve stays in the "closed" condition. The electrical signals from the pulse jet control device move the armature of the electro-magnetic pulse valve. The air escape of the back gas cell opens and the back gas cell loses pressure quickly, thus the diaphragm moves back and the compressed air blows through the valve outlet. The electro-magnetic pulse valve comes into the "open" condition. When the electrical signals from the pulse jet control device disappear, the armature of the electro-magnetic pulse valve returns to its original position. The air escape of the back gas cell closes and the pressure in the back gas cell rises, which pushes the diaphragm closely against the valve outlet. The electro-magnetic valve comes into its "closed" condition again.
Prod Model: XQX-II-80S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Designing Pressure: 0..035-0.8MPa
Working Pressure: 0.2-0.6MPa
Ambient Temperature: -15---60celsius
Working Medium: Clean Air
Relative Humidity: <85%
Protection Class: IP65
Diaphragm Material: Nitrile
Diaphragm Life: Over One Million Cycles
Type: Pilot Operated
Connection Form: Flange
Valve Structure: Pilot Membrane Structure
Application: Dust Collection
Power Supply: AC & DC
Usage: Jetting
Material: Cast Aluminium
We, XQPC, Fenghua Xuqiang Pulse Valve Factory was founded in year2007 as a special and professional manufacturer of solenoid pulse valve serving dust collection field with several friends who is devoting themselves to develop bag and cage technology. Before, we are specialized in aluminum cast mold development and named Fenghua Hongda Mold Factory from year1993. Based on our superb technology of mold developing and producing, we have owned dozens of mold of pulse valve bodies which are different and much nicer than others'.

In these 8years, we focus on building staffs' sense of responsibility, products' refined processing, optimization of the process, team development and brand promotion. Good service, qualified product and competitive price is our promise; Fast response, adequate stock, strong producing capability, keep improving is our advantages; Cherishing the development of air pollution control industry and respecting the original environment is our passions. "Providence does not let down a man who does his best". We finally gain a good reputation from all our customers in all markets around the world.

Meanwhile, we develop and research some new products matched dust collection. Except electro-magnetic pulse valve, our product line covers pulse jet controller, bulk head connector, blowing-tube nozzles, pneumatic percussive hammer, remote control enclosure, air cylinder, air sources treatment and all the parts. All products are widely used in dust treatment and smoke purification in ferrous metallurgy, non-ferrous metal metallurgy, construction cement, chemical industrial power station boiler, urban trash burning and other applications.

We puts large amount of money into introducing, renewing and developing advanced equipment. While importing highly effective production and inspection equipment, we also developed a series of special equipment by ourselves, providing sound insurance for making products of high quality. Backed by all these, the total sale and the number of users have kept increasing for years. Adhering to the principle of "people oriented", we focus on introducing in and cultivating human resources, stably improving product quality, developing new product, enlarging the sales scale, and all of these are providing a sound foundation for the sustainable development.

Our vision: Let industry solve the air pollution (Industry is the root of air pollution as well as the solution)
