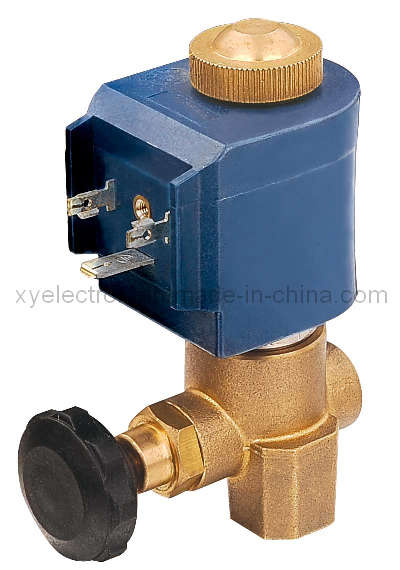

Solenoid Steam Valve for Ironing Machine (DL-6E)Installed on the Ironing equipments independent;
Fully made of heat resistant H class material;
Steam flow rate can be adjustable,easy to operate;
Electrical parts good water-proof;
Insert pipe,female-male thread,adjustable and angle adjustable type for choose;
ParametersModel | DL-6E |
Media | Water/Steam/Clean Air |
Working type | 2/2 Direct action |
Pattern | Normally close |
Orifice | 2.5mm |
Connection port | G1/4" |
Working pressure | 0-2.5Mpa |
Max.pressure | 3Mpa |
Working temp. | 0.1ºC~180ºC |
Related voltage | 24~240V DC/AC +/-10% |
Power | AC28VA/DC20W |
Insulation class | H Class |
Protection class | IP65 |
Valve body Material Brass | Brass |
Seal material | PTFE/FKM |
Drawing
