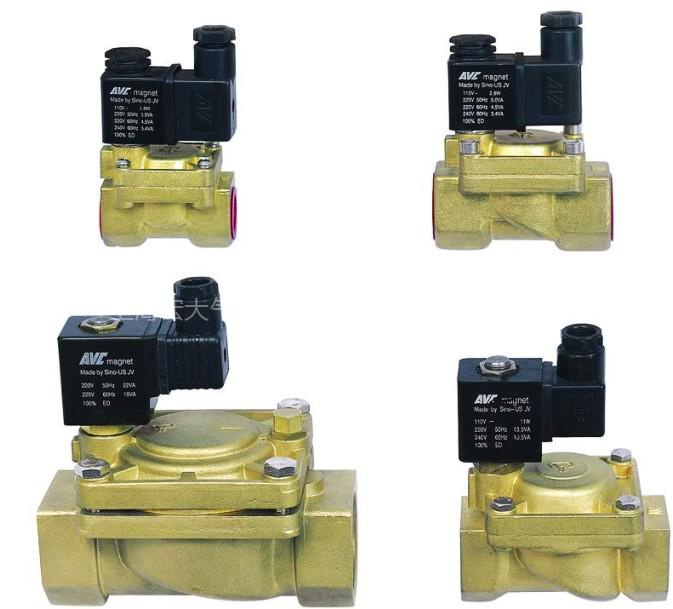

The qg22 series 2-position 2-way solenoid actuated diaphragm valve is applicable to transfer of neutral gases or liquids. Therotary diaphragm is adoped in this valve to extend its service life. The qg22-40 valves are flow-rate adjustable while the valve closing to prevent against water hammeting on pipeline and equipment. It is an advanced diaphragm valve.
We mainly supply high quality angle valves, drain valves, etc. We have achieved good performance up to now, sincerely welcome businessmen overseas to establish a long-term cooperation to create a beautiful tomorrow!
|
Model |
QG22-10 |
QG22-15 |
QG22-20 |
QG22-25 |
QG22-32 |
QG22-40 |
QG22-50 |
|
Orifice(mm) |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
|
working pressure(Mpa) |
0.1~1.0 |
|
working medium |
Water,air,steam,distilled water |
|
flow Kv value(m³/h) |
1.7 |
1.7 |
501 |
5.35 |
20 |
25.5 |
43 |
|
Changeover time(S) |
≤1 |
≤1 |
≤1 |
≤2 |
≤5 |
≤5 |
≤5 |
|
Medium temperature |
0~50 |
|
Ambient temperature |
5~50 |
|
Operating voltage(V) |
AC:220 36 DC:24 |
|
Apparent power(VA) |
7.5 |
15 |
|
Power consumption(W) |
4.8 |
12 |
