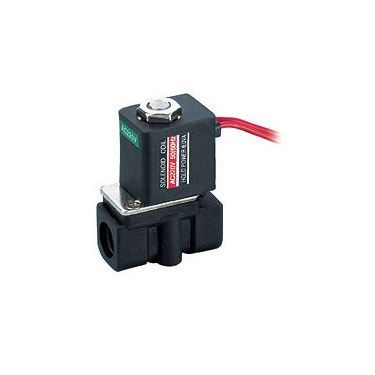

2P Series Two-position Two-way Solenoid Valve
Feature
1. Adopting straight-action diaphragm sructure without pressure starting enlarges its applicable scopes.
2. Adopting plate diaphragm structure with reliable start and close lengthens the service life of the product.
3. Selecting plastic sealed coil improves the safe application of this product under many environments.
Specification
Model: 2P025-08
Working Medium: Air, Water, Oil, Gas
Motion Pattern: Direct Drive Type
Type: Normal Close Type
Aperture of flow Rate: 2.5mm
CV Value: 0.23
Joint Pipe Bore: 1/4"
Operation Fluid
Viscosity: 20CST Below
Working-pressure: 0~0.7Mpa
Max. Pressure: 1.0Mpa
Temperature: -5~80degree centigrade
Voltage Range: ± 10%
Materialof Body: Engineering Plastic
Material of Oil Seal: NBR or VITON
We have CE, ISO 9000/9001 certificate with competitive price and quality. We are the professional ones in making kinds of solenoid valves. You name it, and we get it. We have made the CYTYN solenoid valves used for solar heater especially for XinFei Group as a good cooperation. The solenoid valves can be used for the pipe fittings (drinking water fluid/corrosive fluid /oil/gas/LP gas and so on), they are also the auto-control parts in the water drink machine, coffee machine, printers and so on.
Our products: 2W series direct acting type solenoid valves, 2WB Series stainless steel solenoid valves, CYW23 series stainless steel solenoid valves which could work in the high pressure and temperature, 2WH series which can be also controlled not only by solenoid but also by hand. Then we also have the water proof solenoid valves, explosion proof solenoid valves.
