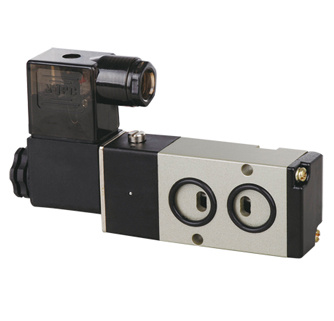

Solenoid Valve (4M Series)

Solenoid Valve (4M Series)
Price: Negotiable
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: T/T
Solenoid Valve 4M suppliers and Solenoid Valve 4M manufacturers, 4M Series 5/2 way Namur Solenoid Valve. Namur Valve

4M210-08 4M220-08 4M310-08 4M320-10
Model 4M210-08 4M220-08 4M310-10 4M320-10
Working Medium 40 Micron Filtered Air
Motion Pattem Inner Guide Type
Position and Way NO. Two-position Five-way
Effectiv Section area 14 mm 2 (CV=0.78) 16 mm 2 (CV=0.89)
Port Size Air Inlet=Exhaust=G1/8 Air Inlet=G1/4
Exhaust=G1/8
Lubricate Not Necessary
Working-pressure 0.15-0.9Mpa
Max. Pressure Resistance 1.2Mpa
Operation Temperature -5-60 0 C
Voltage Range -15%~+10%
Power Consumption AC380V: 2.5VA, AC220V: 2.0VA, AC110V: 2.5V, AC24V: 3.5VA DC24V: 3.0W, DC12V: 2.5W
Insulation& Protection Class F Class: IP65
Wiring Form G or L
Highest Action Frequency 5 Cycle/Sec
Shortest Excitation Time 0.05 Second

Prod Model: 4M Seies Solenoid Valves
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Valve Structure: Direct-Acting Piston Structure
Power Supply: AC Solenoid Valve
Connection Form: Thread
Type: Direct Acting
Our company Puremix Electro-Mechanical co ltd is a factory specialized in Pneumatic products and Hydraulic products like, Pneumatic fittings, Pneumatic valves, Solenoid valves, FESTO( SMC, AIRTAC, FESTO), Pneumatic cylinders and some Hydraulic quick couplings etc with good reputation in China for many years.

Our company imported CNC machines from Taiwan and Japan for machining the valve body, cylinder end covers, pistons, spools etc. And imported Gemany Siemens
System, with complete setof advanced computer testing equipment ande all keys seals are from Parker and Japan, Making a good definition for excellent quality. And devotes to continually developing new products, deeply improving current products, and obtaining reasonable margin to extend the market share. We are sure we are the right cooperator you are looking for in China.
