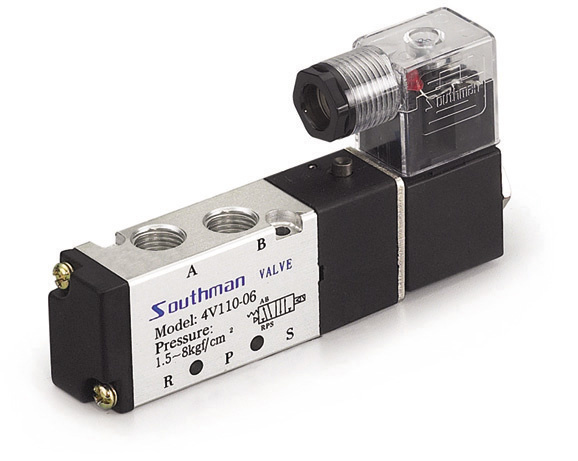

Media: Air
Action: Internally piloted
Port size: In=Outer=M5, In=Outer=1/8"
Type: Port 2 position
Temp. Range: -5~60degree(23~140° F)
Orifice size: 5.5mm2(CV=0.31), 12mm2(CV=0.67)
Lubrication: Not required
Pressure range: 1.5~8.0Kgf/cm2
Proof pressure: 12Kgf/cm2
Power consumption: AC380V: 2.5VA, AC220V: 2.0VA, AC110V: 2.5VA, AC24V: 3.5VA, DC24V: 3.0W, DC12V: 2.5W
Protection: IP65(DIN40050)
Connection: Socket with plug
Material: Aluminum alloy
Max. Frequency: 5cycles/per. Sec.
Insulation: F class
Voltage range: -15%~+10%
Min. Activate time: 0.05 sec.
Our company, engaged in producing pneumatic components, the leading products contain pneumatic control components, pneumatic executive components, gas supply processing unit, supplemental components, etc.
Our products win favorable comment due to their high quality, durability and wide variety of kinds.
