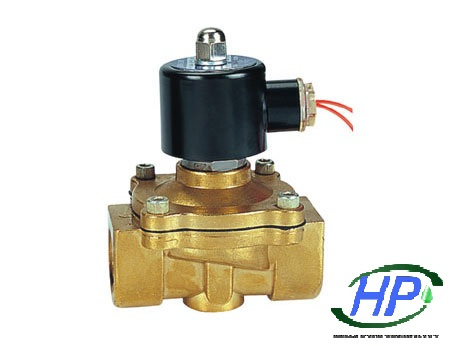

Brass Solenoid Valve For Water Treatment System
Features:
* Operate at low pressure: no minimum required;
* Normally Closed or Normally Open operation;
* Widely used for dispensing, collating, gas shutoff, vacuum holding, and tank draining applications;
Media:water,hot water,air,oil<20CST etc.;
Temperature:NBR:-5~80°C EPDM:-10~130°C VITON:-10~150°C
Pressure:0-10 bar
Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Working Medium | Air,Water,Oil |
| Motion Pattern | Direct Drive Type |
| Type | Normal Close Type |
| Aperture of Flow Rate (mm) | 16 | 20 | 25 | 35 | 40 | 50 |
| CV Value | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Joint Pipe Bore | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" |
| Operation Fluid Viscosity | 20 CST Below |
| Working-pressure | Air:0~0.7MPa Water:0~0.5MPa Oil:0~0.5MPa |
| Max.Pressure Resistance | 1.0MPa |
| Operation Temperature | -5~80°C |
| Voltage Range | ±10% |
| Material of Body | Brass(Material of stainless steel need special explain) |
| Material of Oil Seal | NBR or VITON |
Shanghai Hello Pure Water Technology Co., Ltd is established in 2010. We are a professional manufacturer and exporter that is concerned with the design, development and production of water treatment system and components. We are located in Shanghai, China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
The Range of our products include residential, commercial and industrial water treatment system and components
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching the Whole Asia, Middle East, Europe, America and South of America.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Our company promises: Reasonable prices, short production time and satisfactory after-sales service, Mutual development, mutual benefits
