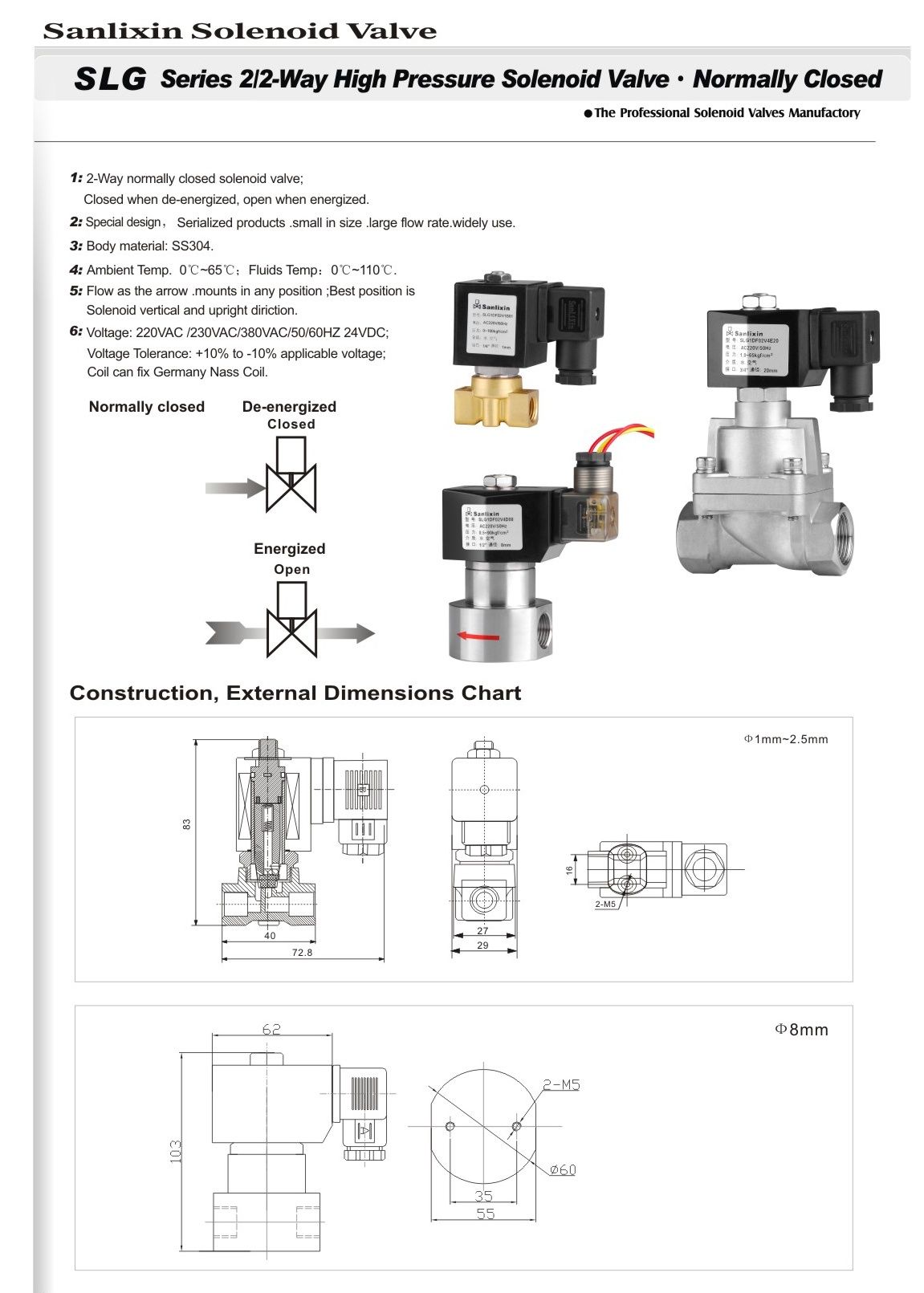

SLG High Pressure Series. 2/2-way Solenoid Valve. Normally Closed
Body Material: Forged Brass Stainless Steel
Pressure: 0~100kgf/cm
Pipe Connection: 1/8"~1"
Fluid Media: Water\Hot Water\Air\Gas\Light Oil etc.
Yuyao Sanlixin Solenoid Valve Co., Ltd specializes in designing and manufacturing all kinds of fluid solenoid valves.
Our solenoid valve have direct acting type, pilot operated type, piston types
The body can be made of brass, stainless steel, plastic, Teflon and aluminum and the seals can be made of NBR, EPDM, viton, Teflon, PTFE silicon
The valve size can be DN1.00mm to DN150mm; Media can be water, hot water, gas, air, steam. Light oil, weak acid& alkali fluids etc.
So our solenoid valves are suitable for all the general purpose equipment.

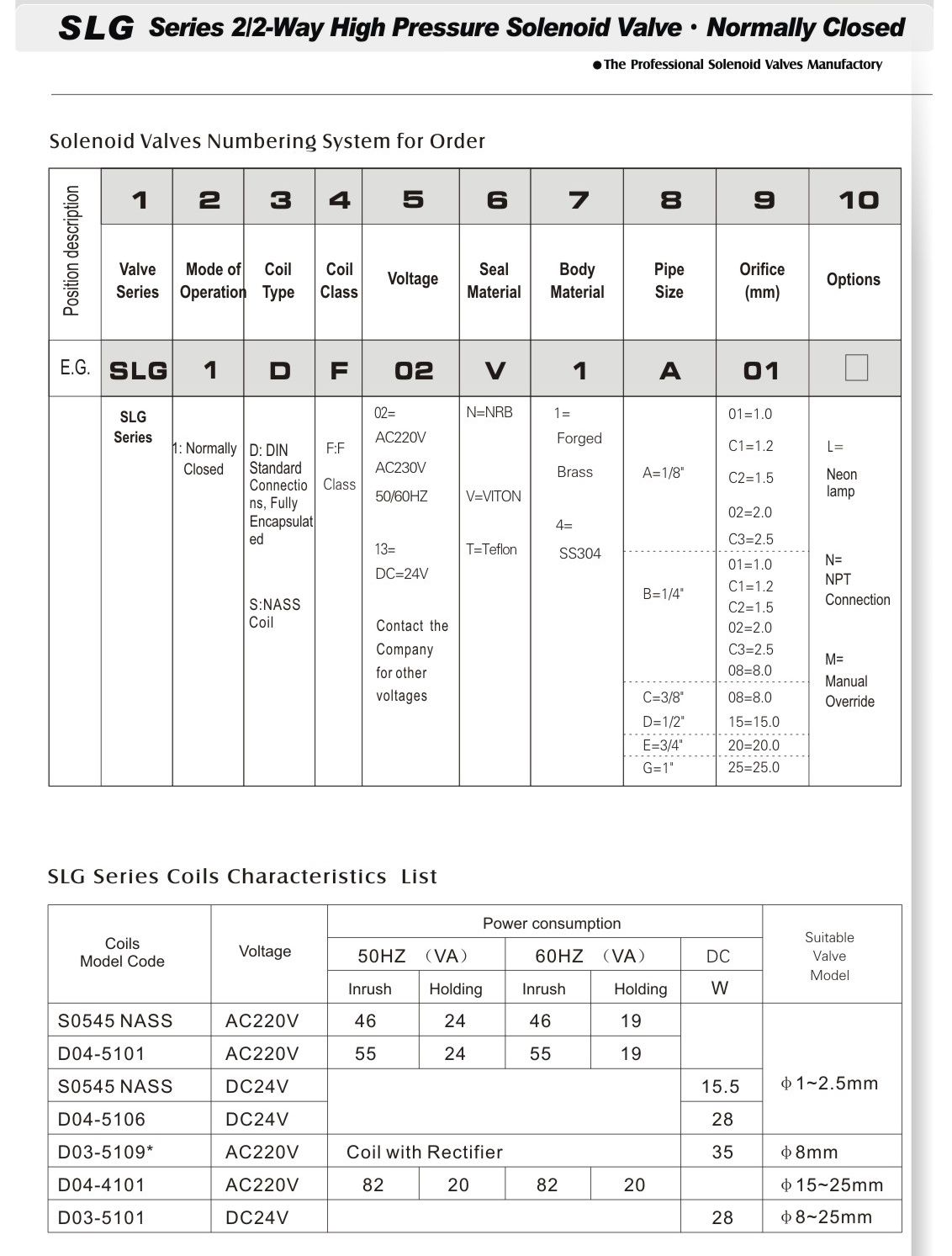

| New | Pipe | Orifice | Pressure | Seals | Body |
| Model code | Size | (mm) | bar | Material |
| SLG1DF02V1A01 | 1/8 | 1 | 0~100 | VITON | Forged brass |
| SLG1DF02V1AC1 | 1/8 | 1.2 | 0~90 | VITON | Forged brass |
| SLG1DF02V1AC2 | 1/8 | 1.5 | 0~75 | VITON | Forged brass |
| SLG1DF02V1A02 | 1/8 | 2 | 0~35 | VITON | Forged brass |
| SLG1DF02V1AC3 | 1/8 | 2.5 | 0~20 | VITON | Forged brass |
| SLG1DF02V1B01 | 1/4 | 1 | 0~100 | VITON | Forged brass |
| SLG1DF02V1BC1 | 1/4 | 1.2 | 0~90 | VITON | Forged brass |
| SLG1DF02V1BC2 | 1/4 | 1.5 | 0~75 | VITON | Forged brass |
| SLG1DF02V1B02 | 1/4 | 2 | 0~35 | VITON | Forged brass |
| SLG1DF02V1BC3 | 1/4 | 2.5 | 0~20 | VITON | Forged brass |
| SLG1DF02V1B08 | 1/4 | 8 | 0.5~90 | VITON | Forged brass |
| SLG1DF02V1C08 | 3/8 | 8 | 0.5~90 | VITON | Forged brass |
| SLG1DF02T1C15 | 3/8 | 15 | 1~75 | Teflon | Forged brass |
| SLG1DF02T1D15 | 1/2 | 15 | 1~75 | Teflon | Forged brass |
| SLG1DF02T1E20 | 3/4 | 20 | 1~65 | Teflon | Forged brass |
| SLG1DF02T1G25 | 1 | 25 | 1~55 | Teflon | Forged brass |
| SLG1DF02V3A01 | 1/8 | 1 | 0~100 | VITON | SS316 |
| SLG1DF02V3AC1 | 1/8 | 1.2 | 0~90 | VITON | SS316 |
| SLG1DF02V3AC2 | 1/8 | 1.5 | 0~75 | VITON | SS316 |
| SLG1DF02V3A02 | 1/8 | 2 | 0~35 | VITON | SS316 |
| SLG1DF02V3AC3 | 1/8 | 2.5 | 0~20 | VITON | SS316 |
| SLG1DF02V3B01 | 1/4 | 1 | 0~100 | VITON | SS316 |
| SLG1DF02V3BC1 | 1/4 | 1.2 | 0~90 | VITON | SS316 |
| SLG1DF02V3BC2 | 1/4 | 1.5 | 0~75 | VITON | SS316 |
| SLG1DF02V3B02 | 1/4 | 2 | 0~35 | VITON | SS316 |
| SLG1DF02V3BC3 | 1/4 | 2.5 | 0~20 | VITON | SS316 |
| SLG1DF02T4B08 | 1/4 | 8 | 0.5~90 | VITON | SS304 |
| SLG1DF02T4C08 | 3/8 | 8 | 0.5~90 | VITON | SS304 |
| SLG1DF02T4D08 | 1/2 | 8 | 0.5~90 | VITON | SS304 |
| SLG1DF02T4C15 | 3/8 | 15 | 1~75 | Teflon | SS304 |
| SLG1DF02T4D15 | 1/2 | 15 | 1~75 | Teflon | SS304 |
| SLG1DF02T4E20 | 3/4 | 20 | 1~65 | Teflon | SS304 |
| SLG1DF02T4G25 | 1 | 25 | 1~65 | Teflon | SS304 |
