Solenoid valve -- SLG High Pressure brass or stainless steel Magnetventil
PRODUCTS

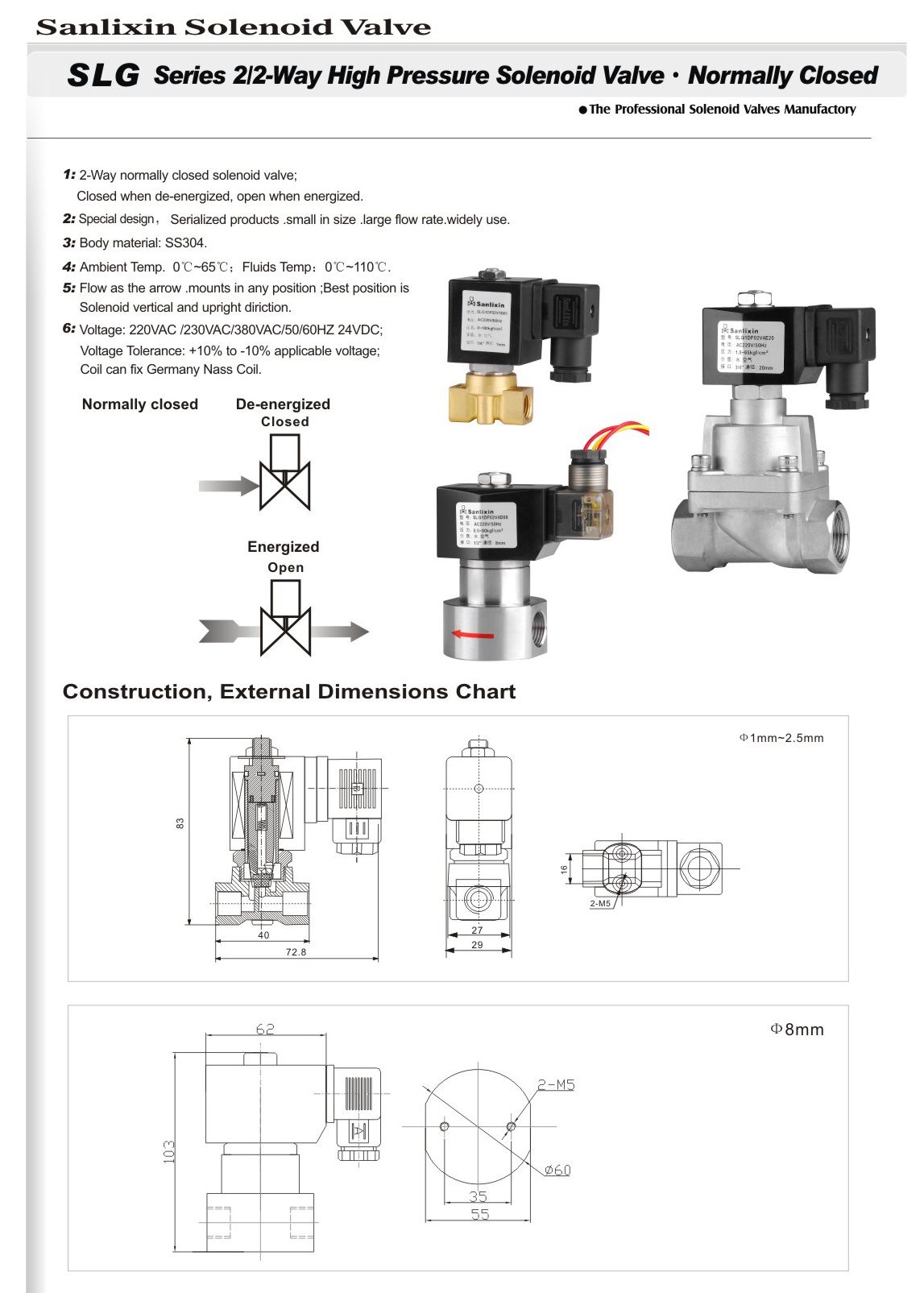

SLG High Pressure Series. 2/2-way Solenoid Valve. Normally Closed
Body Material: Forged Brass Stainless Steel
Pressure: 0~100kgf/cm
Pipe Connection: 1/8"~1"
Fluid Media: Water\Hot Water\Air\Gas\Light Oil etc.

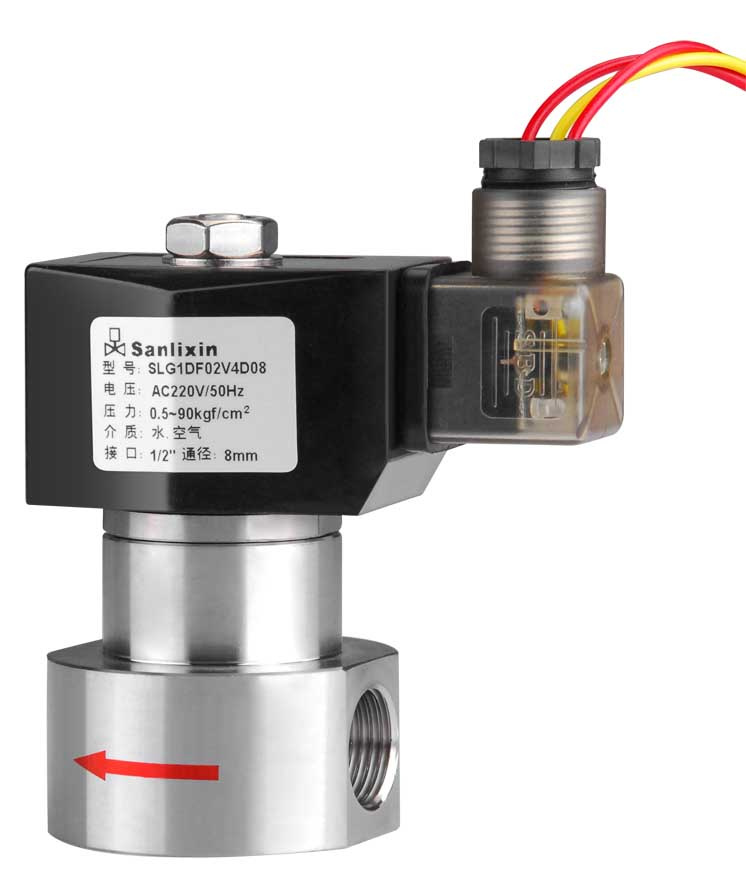

High pressure solenoid valve
The pressure can be up to 120bar
1/8 to 1 inch
Solenoid Valve
SLG HIGH PRESSURE DIFFERENTIAL SOLENOID VALVE
1) 2 way direct acting, normally closed
2) pipe connection: 1/8 to 1.
3) orifice: 1 to 2 or 8 or 15-25mm
4) CV rating: 0.06 to 0.11
5) Pressure differential: 0 to 100
6) Max pressure differential: 100 Mbar
7) Fluid media: Water, air, liquids, light oil, gas( liquid)
8) Body material: Forged brass, S. S. 316
9) Seals material: NBR, Viton
10)Tem.: -10 to 80 (130) degree C
11)Voltage: Can be make as your request
SLG-8
Pipe connection: 3/8 to 1/2.
Pressure differential: 0 to 90bar AC 0 to 70 bar DC
Fluid media: Water, air, liquids, light oil, gas (liquid)
Body material: S. S. 316
Seals material: Viton
Voltage: Can be make as your request
Please consult the company for more information, thank you!
Yuyao Sanlixin Solenoid Valve Co., Ltd specializes in designing and manufacturing all kinds of fluid solenoid valves.
Our solenoid valve have direct acting type, pilot operated type, piston types
The body can be made of brass, stainless steel, plastic, Teflon and aluminum and the seals can be made of NBR, EPDM, viton, Teflon, PTFE silicon
The valve size can be DN1.00mm to DN150mm; Media can be water, hot water, gas, air, steam. Light oil, weak acid& alkali fluids etc.
So our solenoid valves are suitable for all the general purpose equipment.
|

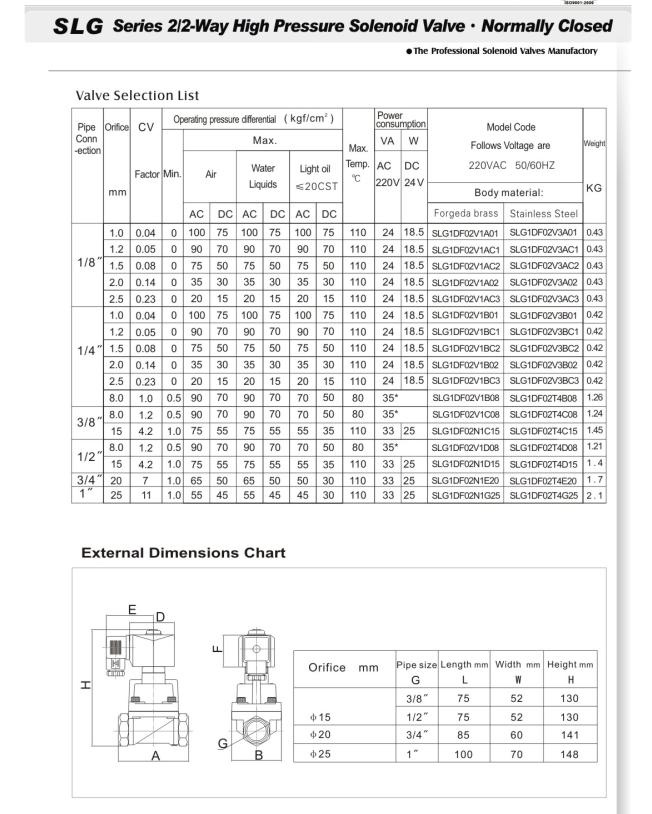

New |
Pipe |
Orifice |
Pressure |
Seals |
Body |
|
Model code |
Size |
(mm) |
bar |
Material |
|
SLG1DF02V1A01 |
1/8 |
1 |
0~100 |
VITON |
Forged brass |
|
SLG1DF02V1AC1 |
1/8 |
1.2 |
0~90 |
VITON |
Forged brass |
|
SLG1DF02V1AC2 |
1/8 |
1.5 |
0~75 |
VITON |
Forged brass |
|
SLG1DF02V1A02 |
1/8 |
2 |
0~35 |
VITON |
Forged brass |
|
SLG1DF02V1AC3 |
1/8 |
2.5 |
0~20 |
VITON |
Forged brass |
|
SLG1DF02V1B01 |
1/4 |
1 |
0~100 |
VITON |
Forged brass |
|
SLG1DF02V1BC1 |
1/4 |
1.2 |
0~90 |
VITON |
Forged brass |
|
SLG1DF02V1BC2 |
1/4 |
1.5 |
0~75 |
VITON |
Forged brass |
|
SLG1DF02V1B02 |
1/4 |
2 |
0~35 |
VITON |
Forged brass |
|
SLG1DF02V1BC3 |
1/4 |
2.5 |
0~20 |
VITON |
Forged brass |
|
SLG1DF02V1B08 |
1/4 |
8 |
0.5~90 |
VITON |
Forged brass |
|
SLG1DF02V1C08 |
3/8 |
8 |
0.5~90 |
VITON |
Forged brass |
|
SLG1DF02T1C15 |
3/8 |
15 |
1~75 |
Teflon |
Forged brass |
|
SLG1DF02T1D15 |
1/2 |
15 |
1~75 |
Teflon |
Forged brass |
|
SLG1DF02T1E20 |
3/4 |
20 |
1~65 |
Teflon |
Forged brass |
|
SLG1DF02T1G25 |
1 |
25 |
1~55 |
Teflon |
Forged brass |
|
SLG1DF02V3A01 |
1/8 |
1 |
0~100 |
VITON |
SS316 |
|
SLG1DF02V3AC1 |
1/8 |
1.2 |
0~90 |
VITON |
SS316 |
|
SLG1DF02V3AC2 |
1/8 |
1.5 |
0~75 |
VITON |
SS316 |
|
SLG1DF02V3A02 |
1/8 |
2 |
0~35 |
VITON |
SS316 |
|
SLG1DF02V3AC3 |
1/8 |
2.5 |
0~20 |
VITON |
SS316 |
|
SLG1DF02V3B01 |
1/4 |
1 |
0~100 |
VITON |
SS316 |
|
SLG1DF02V3BC1 |
1/4 |
1.2 |
0~90 |
VITON |
SS316 |
|
SLG1DF02V3BC2 |
1/4 |
1.5 |
0~75 |
VITON |
SS316 |
|
SLG1DF02V3B02 |
1/4 |
2 |
0~35 |
VITON |
SS316 |
|
SLG1DF02V3BC3 |
1/4 |
2.5 |
0~20 |
VITON |
SS316 |
|
SLG1DF02T4B08 |
1/4 |
8 |
0.5~90 |
VITON |
SS304 |
|
SLG1DF02T4C08 |
3/8 |
8 |
0.5~90 |
VITON |
SS304 |
|
SLG1DF02T4D08 |
1/2 |
8 |
0.5~90 |
VITON |
SS304 |
|
SLG1DF02T4C15 |
3/8 |
15 |
1~75 |
Teflon |
SS304 |
|
SLG1DF02T4D15 |
1/2 |
15 |
1~75 |
Teflon |
SS304 |
|
SLG1DF02T4E20 |
3/4 |
20 |
1~65 |
Teflon |
SS304 |
|
SLG1DF02T4G25 |
1 |
25 |
1~65 |
Teflon |
SS304 |
Yuyao Sanlixin Solenoid Valve Co., Ltd. Specializes in designing and manufacturing all kinds of fluid solenoid valve, angle seat valve, electric valve and drafting of the national industrial fluid solenoid valve safety standards. Since 1993, our company has been developed greatly through the efforts from the staffs and great cooperation from the big distributors and related companies. A lot of sales chain stores and offices have been established at the main cities in the whole country basically, which can provide you with services of before-sale and after-sale. We have set up a sales and a services center in U. S. A., France, Poland, Russia, Vietnam, Australia, Indonesia for our Sanlixin products. Meanwhile, we have been authorized the general agency in China by GC VALVES from USA.
Our company has superior mechanical equipment, advanced processes, complete test methods, well business qualifications. Some specific and new products can be developed, made, consulted about the techniques by our company if you have some requests. In 2001, our company passed ISO9001: 2008 certification, and some of our products have passed TUV, CE approval.
We regard " science and technology for the first, quality for the basis, customer for the center and creating famous brand " as our management aim, and meet our customers' needs continuously, strive for mutual developments so that the industrial automation can be push forward further.
