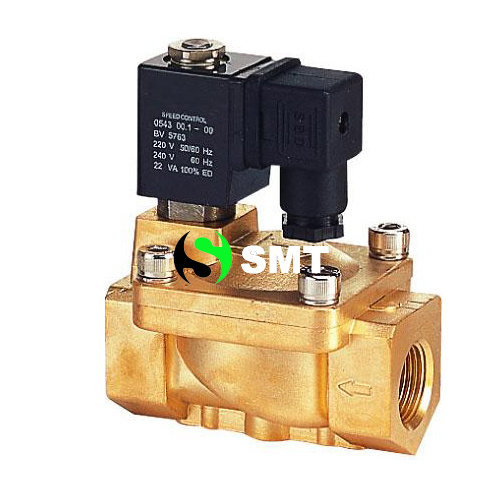

Solenoid Valve (SLP)

Characteristic:
1. Pilot operated diaphragm construction with lower power
Consumption for longtime working
2. Applied to pressure system opened from 0.3 bars;
3. Lifespan can be at 1 million cycles.
Medium: Water, Air, Oil, Natural gas, Hot water.
Temperature: NBR: -10 ~ 80
VITON: -10 ~ 120
Pressure: YCD11 - 0.03 ~ 1.60MPa
Body: Brass Or Stainless Steel SUS304
Port Size: 3/8\1/2\3/4\1\11/4\11/2\2
Rifice(mm): DN 15\20\25\32\40\50f
Voltage: DC: 12V, 24V\36V
AC: 220/230V, 110/120V, 24V(50/60Hz)
Coils: S21B/H, 22VA(AC), 15W(DC), IP65, 100%ED
Special coils: YCD21 Series can match with explosion-proof coil EX1621
(AC 220V, DC 24V)

Port size	Orifice	Cv	Min Pressure	Max Pressure		Seals Material	Body Material	Valve Body	Coil
				AC(17VA)	DC(14W)
3/8″	12	4.5	0.03MPa	1.0MPa	1.0MPa	NBR, EPDM,VITON	Brass or Stainless Steel	SLP2112 X X X	S91B/H
1/2″	15	4.5	0.03MPa	1.0MPa	1.0MPa			SLP2115 X X X	S91B/H
3/4″	20	9.3	0.03MPa	1.0MPa	1.0MPa			SLP2120 X X X	S91B/H
1″	25	12	0.03MPa	1.0MPa	1.0MPa			SLP2125 X X X	S91B/H
1 1 /4″	32	24	0.03MPa	1.0MPa	1.0MPa			SLP2132 X X X	S91B/H
1 1 /2″	40	29	0.03MPa	1.0MPa	1.0MPa			SLP2140 X X X	S91B/H
2″	50	48	0.03MPa	1.0MPa	1.0MPa			SLP2150 X X X	S91B/H

Why choose us?


(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.

(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.

(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.

(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.

Fluid		AC1010-M5	AC2010-01	AC2010-02	AC3010-02	AC3010-03
Orifice size		90	500	500	1700	1700
Port size		M5	1/8	1/4	1/4	3/8
Filtering grade		25 um
Max.pressure		1.0MPa
Proof pressure		1.5MPa
Temperature		5~60 o C
Pressure range		0.05~0.7MPa	0.05~0.85MPa
Recommend lubricant		ISO VG 32
Material		Polycarbonate
Bowl cover		Not available			Available
Drain Function		Differential drain			Differential drain,Automatic drain
Valve type		With overflow
Constitute	Filter & Regulator	AW1000-M5	AW2000-01	AW2000-02	AW3000-02	AW3000-03
	Lubricator	AL1000-M5	AL2000-01	AL2000-02	AL3000-02	AL3000-03

Fluid		AC4010-03	AC4010-04	AC4010-06	AC5010-06	AC5010-10
Orifice size		3000	3000	3000	4500	4000
Port size		3/8	1/2	3/4	3/4	1
Filtering grade		25 um
Max.pressure		1.0MPa
Proof pressure		1.5MPa
Temperature		5~60 o C
Pressure range		0.05~0.85MPa
Recommend lubricant		ISO VG 32
Material		Polycarbonate
Bowl cover		Available
Drain Function		Differential drain¡,Automatic drain
Valve type		With overflow
Constitute	Filter & Regulator	AW4000-03	AW4000-04	AW4000-06	AW5000-06	AW5000-10
	Lubricator	AL4000-03	AL4000-04	AL4000-06	AL5000-06	AL5000-10
