Solenoid Valve (SLP SERIES)

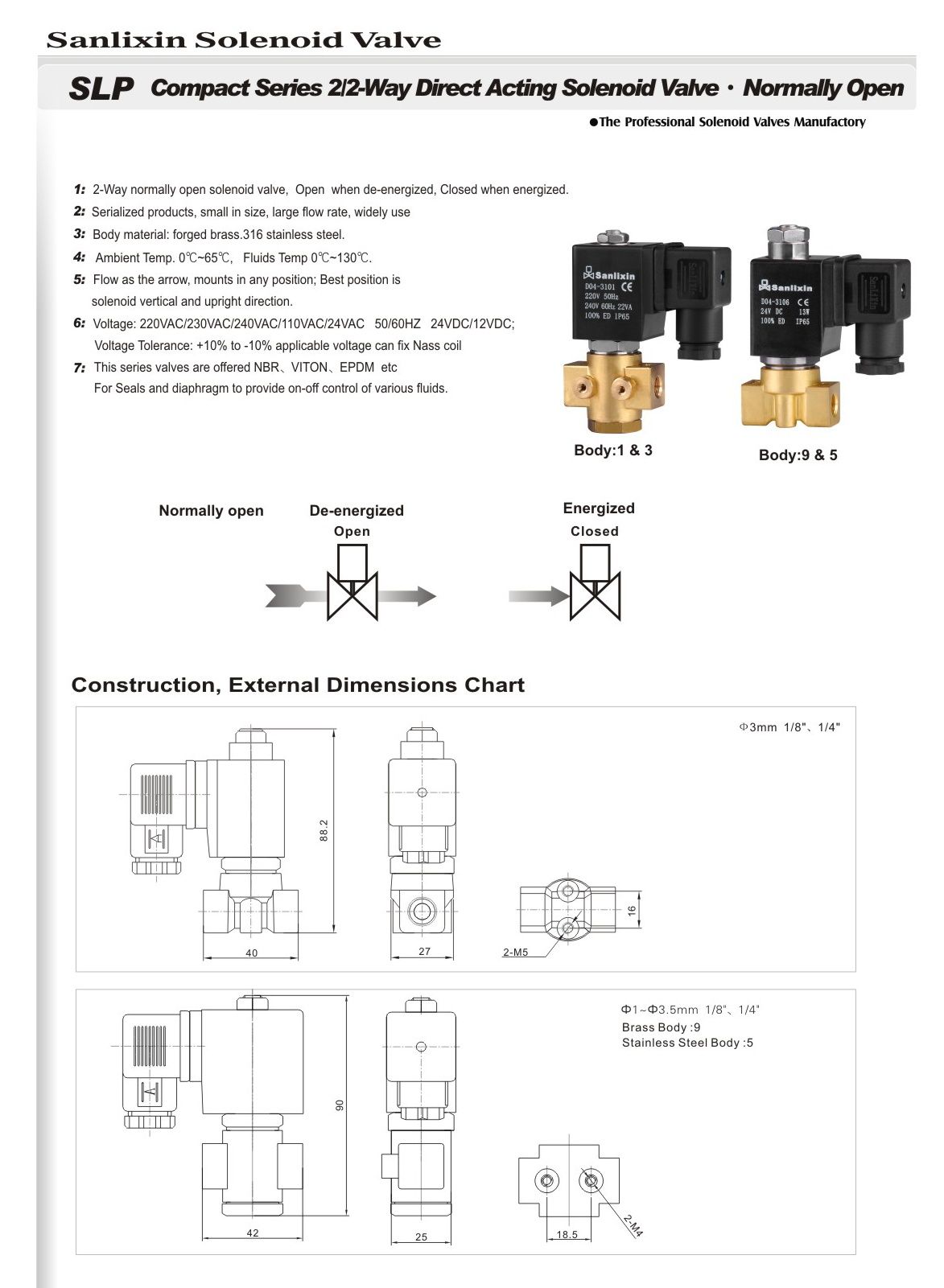

SLP Compact Series. 2/2-way Direct Acting Solenoid Valve. Normally Open
Body Material: Forged Brass\Stainless Steel
Orifice: 1mm~4mm
Pressure: 0~30kgf/cm² Pipe Size: 1/8"~1/7"
Fluid Media: Water\Hot Water\Air\Gas\Oil etc.
Contact Person:
Jessica TEL: 0086-574-62636060 MOBILE: 0086-13777166585
Vivian TEL: 0086-574-62640822 MOBILE: 0086-13967833354
Devin TEL: 0086-574-62559181 MOBILE: 0086-15888035074
|

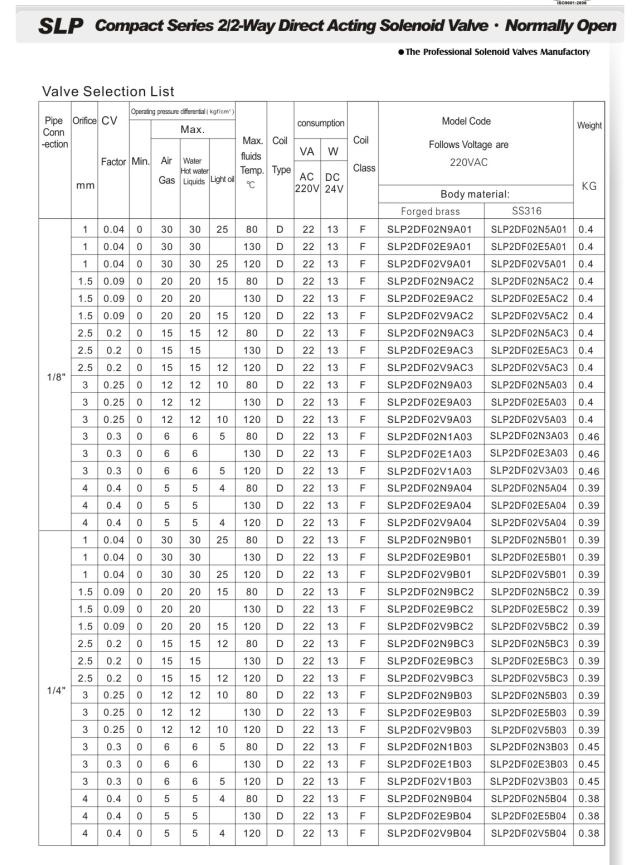

New |
Pipe |
Orifice |
Pressure |
Seals |
Body |
|
Model code |
Size |
(mm) |
bar |
Material |
|
SLP2DF02 N9 A01 |
1/8 |
1 |
0~30 |
NBR |
forged brass |
|
SLP2DF02 N9 AC2 |
1/8 |
1.5 |
0~20 |
NBR |
forged brass |
|
SLP2DF02 N9 AC3 |
1/8 |
2.5 |
0~15 |
NBR |
forged brass |
|
SLP2DF02N9A03 |
1/8 |
3 |
0~12 |
NBR |
forged brass |
|
SLP2DF02N1A03 |
1/8 |
3 |
0~6 |
NBR |
forged brass |
|
SLP2DF02 N9 A04 |
1/8 |
4 |
0~5 |
NBR |
forged brass |
|
SLP2DF02 N9 B01 |
1/4 |
1 |
0~30 |
NBR |
forged brass |
|
SLP2DF02 N9 BC2 |
1/4 |
1.5 |
0~20 |
NBR |
forged brass |
|
SLP2DF02 N9 BC3 |
1/4 |
2.5 |
0~15 |
NBR |
forged brass |
|
SLP2DF02N9B03 |
1/4 |
3 |
0~12 |
NBR |
forged brass |
|
SLP2DF02N1B03 |
1/4 |
3 |
0~6 |
NBR |
forged brass |
|
SLP2DF02 N9 B04 |
1/4 |
4 |
0~5 |
NBR |
forged brass |
|
SLP2DF02 N5 A01 |
1/8 |
1 |
0~30 |
NBR |
SS316 |
|
SLP2DF02 N5 AC2 |
1/8 |
1.5 |
0~20 |
NBR |
SS316 |
|
SLP2DF02 N5 AC3 |
1/8 |
2.5 |
0~15 |
NBR |
SS316 |
|
SLP2DF02 N5 A03 |
1/8 |
3 |
0~12 |
NBR |
SS316 |
|
SLP2DF02N3A03 |
1/8 |
3 |
0~6 |
NBR |
SS316 |
|
SLP2DF02 N5 A04 |
1/8 |
4 |
0~5 |
NBR |
SS316 |
|
SLP2DF02 N5 B01 |
1/4 |
1 |
0~30 |
NBR |
SS316 |
|
SLP2DF02 N5 BC2 |
1/4 |
1.5 |
0~20 |
NBR |
SS316 |
|
SLP2DF02 N5 BC3 |
1/4 |
2.5 |
0~15 |
NBR |
SS316 |
|
SLP2DF02 N5 B03 |
1/4 |
3 |
0~12 |
NBR |
SS316 |
|
SLP2DF02N3B03 |
1/4 |
3 |
0~6 |
NBR |
SS316 |
|
SLP2DF02 N5 B04 |
1/4 |
4 |
0~5 |
NBR |
SS316 |
Yuyao Sanlixin Solenoid Valve Co., Ltd. Specializes in designing and manufacturing all kinds of fluid solenoid valve, angle seat valve, electric valve and drafting of the national industrial fluid solenoid valve safety standards. Since 1993, our company has been developed greatly through the efforts from the staffs and great cooperation from the big distributors and related companies. A lot of sales chain stores and offices have been established at the main cities in the whole country basically, which can provide you with services of before-sale and after-sale. We have set up a sales and a services center in U. S. A., France, Poland, Russia, Vietnam, Australia, Indonesia for our Sanlixin products. Meanwhile, we have been authorized the general agency in China by GC VALVES from USA.
Our company has superior mechanical equipment, advanced processes, complete test methods, well business qualifications. Some specific and new products can be developed, made, consulted about the techniques by our company if you have some requests. In 2001, our company passed ISO9001: 2008 certification, and some of our products have passed TUV, CE approval.
We regard " science and technology for the first, quality for the basis, customer for the center and creating famous brand " as our management aim, and meet our customers' needs continuously, strive for mutual developments so that the industrial automation can be push forward further.
